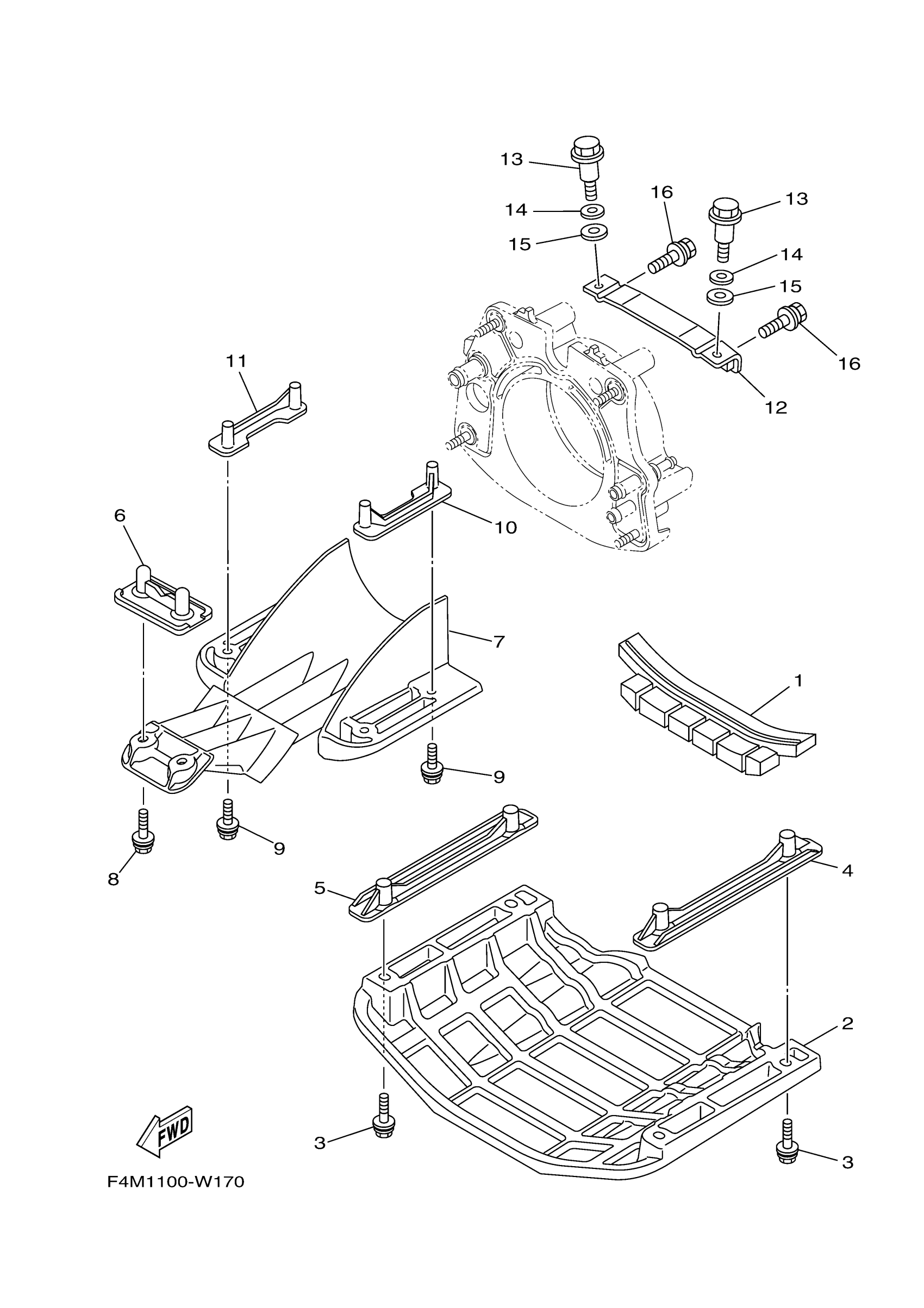

Yamaha GP1900BC (GP HO) F7L6 2026 JET UNIT 4 Diagram

#

Description
Price

1

SPACER

F2X-U72C0-00-00

$15.07

2

PLATE 2

F4P-U273B-00-00

$124.48

3

BOLT

F4L-U3222-01-00

Unavailable

4

BRACKET 2

F2X-U8572-00-00

$12.91

5

BRACKET 2

F2X-U8572-00-00

$12.91

6

BRACKET, 3

F2S-U8577-00-00

$15.07

7

SCREEN, INTAKE

F4P-U72B7-00-00

$90.39

8

BOLT, WITH WASHER

90119-08829-00

$3.88

9

BOLT, WITH WASHER

90119-08844-00

$1.29

10

BRACKET 1

F3P-U8571-00-00

$7.18

11

BRACKET 1

F3P-U8571-00-00

$7.18

12

BRACKET

F2C-U7557-01-00

$30.29

13

BOLT

90109-08043-00

$4.09

14

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

15

GASKET

90430-12002-00

$1.81

16

BOLT, WITH WASHER

90119-08800-00

$4.09
