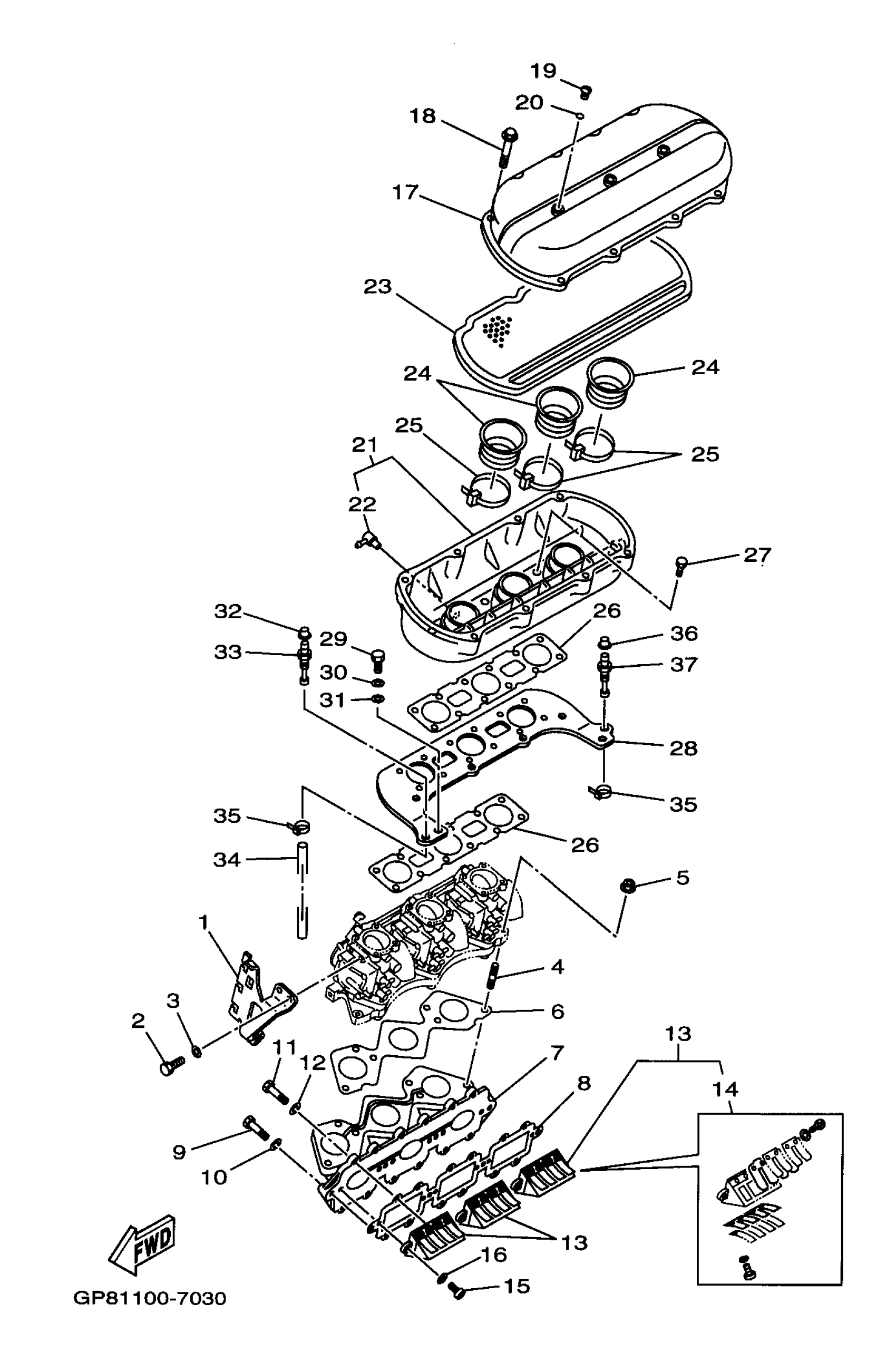

1997 Yamaha Wave Runner GP1200 (GP1200V) Intake Diagram
Find the part on the Intake diagram for your 1997 Yamaha Wave Runner GP1200 (GP1200V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
PLATE
65U-14527-01-00
1
Out of stock
4
BOLT,STUD
90116-08M55-00
1
Out of stock
13
REED VALVE ASSY
65U-13610-00-00
1
Out of stock
14
. REED SET
65U-W0004-00-00
1
Out of stock
16
WASHER, PLAIN (646)
92990-05600-00
—
Out of stock
17
COVER, CARBURETOR 1
65U-14283-00-00
1
Out of stock
23
ELEMENT, AIR CLEANER
65U-14451-00-00
1
Out of stock
24
FUNNEL, AIR
65U-14469-00-00
1
Out of stock
28
PLATE
65U-14255-00-00
1
Out of stock
