1997 Yamaha Wave Runner GP1200 (GP1200V) Fuel Diagram

← All diagrams

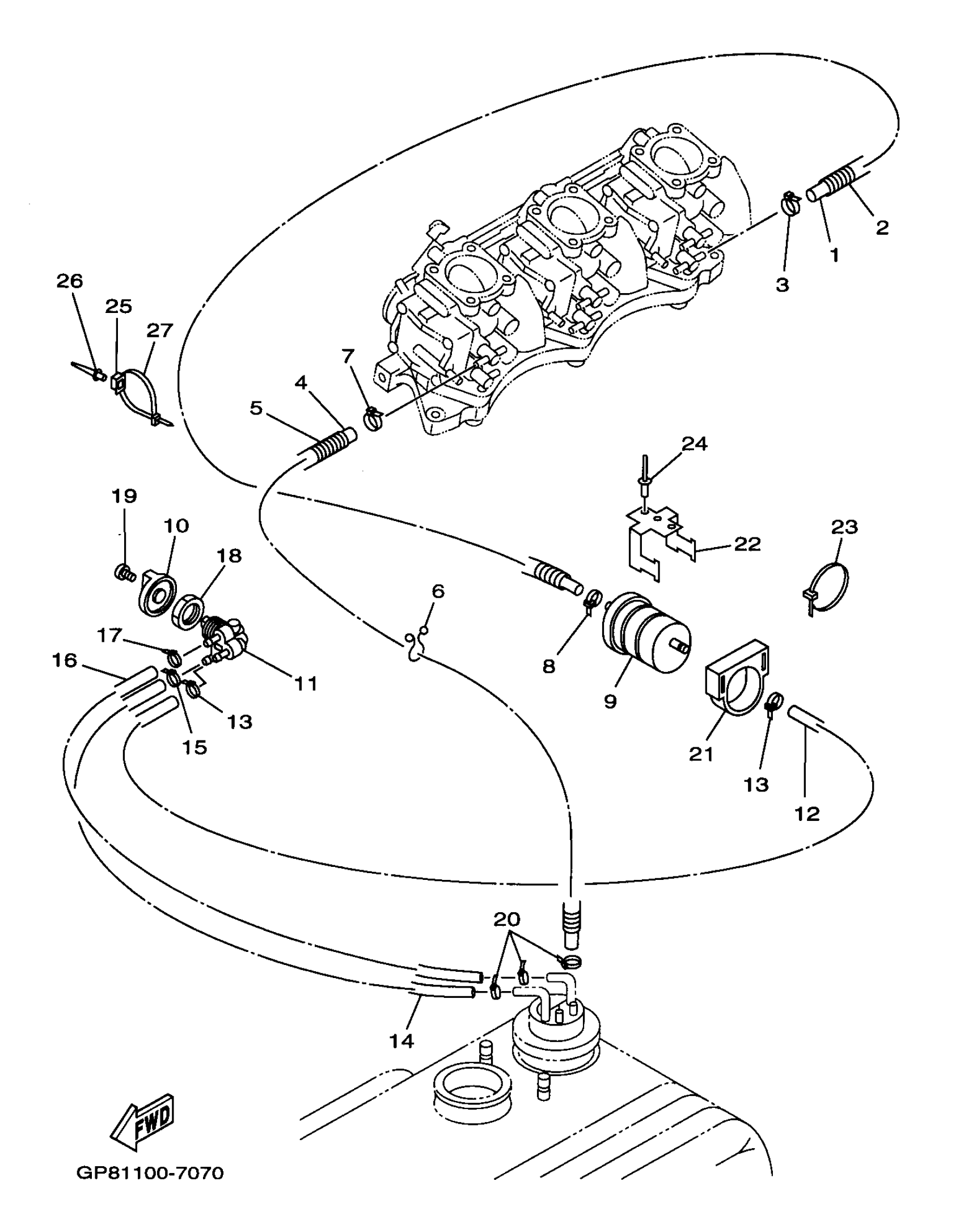

Find the part on the Fuel diagram for your 1997 Yamaha Wave Runner GP1200 (GP1200V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Runner GP1200 (GP1200V) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L1700)

90445-10M87-00

1
Out of stock

2

HOSE

90446-14M78-00

1
Out of stock

3

CLAMP

90465-10098-00

1
Out of stock

4

HOSE (L590)

90445-10020-00

1
Out of stock

5

HOSE

90446-14M28-00

1
Out of stock

6

CLAMP

90465-18147-00

1
Out of stock

7

CLAMP

90465-10098-00

1
Out of stock

8

CLAMP

90465-10098-00

1
Out of stock

9

FILTER ASSY

6K8-24560-21-00

1
Out of stock

10

LEVER, COCK

6K8-24524-10-00

1
Out of stock

11

FUEL COCK ASSY 1

65U-24500-02-00

1
Out of stock

12

HOSE (L400)

90445-10M43-00

1
Out of stock

13

CLAMP

90465-10098-00

1
Out of stock

14

HOSE (L400)

90445-10M43-00

1
Out of stock

15

CLAMP

90465-10098-00

1
Out of stock

16

HOSE (L400)

90445-10M43-00

1
Out of stock

17

CLAMP

90465-10098-00

1
Out of stock

18

NUT

90170-22M11-00

1
Out of stock

19

SCREW, WITH WASHER

97980-04210-00

1
Out of stock

20

CLAMP

90465-10098-00

1
Out of stock

21

HOLDER, FILTER

EU0-U7817-00-00

1
Out of stock

22

BRACKET, FUEL FILTER

FN8-67816-00-00

1
Out of stock

23

BAND

90601-200U1-00

1
Out of stock

24

RIVET (EU0)

90267-48938-00

1
Out of stock

25

CLAMP COMP (EU0)

90600-91736-00

—
Out of stock

26

RIVET, BLIND

90267-48802-00

1
Out of stock

27

BAND (EU0)

90601-20009-00

1
Out of stock
