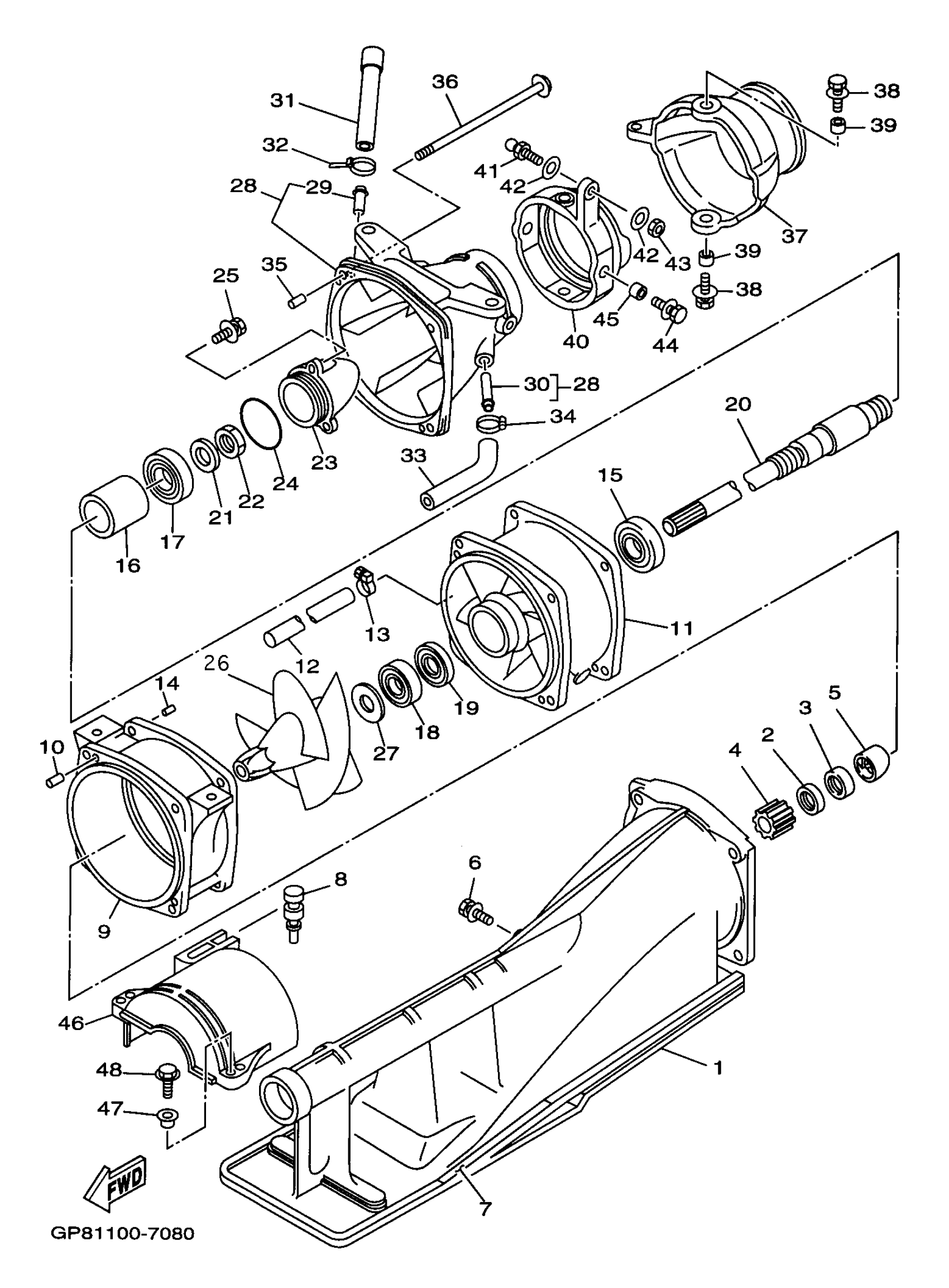

Yamaha GP1200V (WAVE RUNNER GP1200) GP81 1997 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

65U-R1311-00-00

Unavailable

2

OIL SEAL

93102-17M49-00

$9.79

3

OIL SEAL

93102-17M50-00

Unavailable

4

BUSHING, DRIVE SHAFT

65V-45318-00-00

$84.83

5

SPACER

65U-R1348-01-00

Unavailable

6

BOLT, WITH WASHER

90119-06892-00

$3.79

7

. FELT, PACKING

6R8-51367-01-00

$10.36

8

GROMMET(6R7)

90480-06M46-00

$9.31

9

HOUSING, IMPELLER

63M-51312-02-94

Unavailable

10

PIN, DOWEL (614)

93606-12019-00

$3.05

11

DUCT, IMPELLER

63M-51315-02-00

Unavailable

12

HOSE (L108)

90445-18M03-00

$15.36

13

BAND, HOSE 18

90601-118UF-00

$2.07

14

PIN, DOWEL (614)

93606-12019-00

$3.05

15

BEARING (6K8)

93306-205U1-00

$19.73

16

SPACER 1

65V-45538-00-00

$29.88

17

BEARING

93306-304XB-00

$17.22

18

OIL SEAL(6R7)

93102-25M34-00

Unavailable

19

OIL SEAL(6R7)

93101-25M50-00

Unavailable

20

SHAFT, DRIVE

65U-45511-00-00

Unavailable

21

958-58204-00 WASHER,PLAIN

92990-16200-00

Unavailable

22

NUT

95317-16700-00

$4.55

23

CAP KIT

65A-R1326-10-KT

Unavailable

24

. O-RING

93210-46M16-00

$7.15

25

BOLT,WITH WASHER

90119-06890-00

$1.07

26

IMPELLER

66F-R1321-00-00

Unavailable

27

SPACER

62T-51348-00-00

$52.82

28

NOZZLE

65U-R1318-00-00

Unavailable

29

. NIPPLE

65A-R1129-00-00

Unavailable

30

NIPPLE,HOSE

65A-R1334-01-00

Unavailable

31

PIPE 1

61X-51673-00-00

Unavailable

32

CLAMP

90465-10098-00

$1.68

33

HOSE (L380)

90445-14M25-00

Unavailable

34

CLAMP

90465-10098-00

$1.68

35

PIN, DOWEL (614)

93606-12019-00

$3.05

36

BOLT,WASHER BASED

90105-088D7-00

Unavailable

37

NOZZLE, DEFLECTOR

65U-R1313-00-00

Unavailable

38

BOLT, WITH WASHER

90119-08852-00

$3.79

39

COLLAR(6R7)

90387-08M06-00

Unavailable

40

RING,TRIM

64Y-51190-00-94

$118.17

41

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

42

WASHER,PLATE

90201-068M4-00

Unavailable

43

NUT(650)

95380-06700-00

Unavailable

44

BOLT, WITH WASHER

90119-08852-00

$3.79

45

COLLAR

90387-08M08-00

$10.75

46

COVER

65A-R1381-00-00

Unavailable

47

COLLAR

90387-06M60-00

$6.37

48

BOLT, WITH WASHER

90119-06892-00

$3.79
