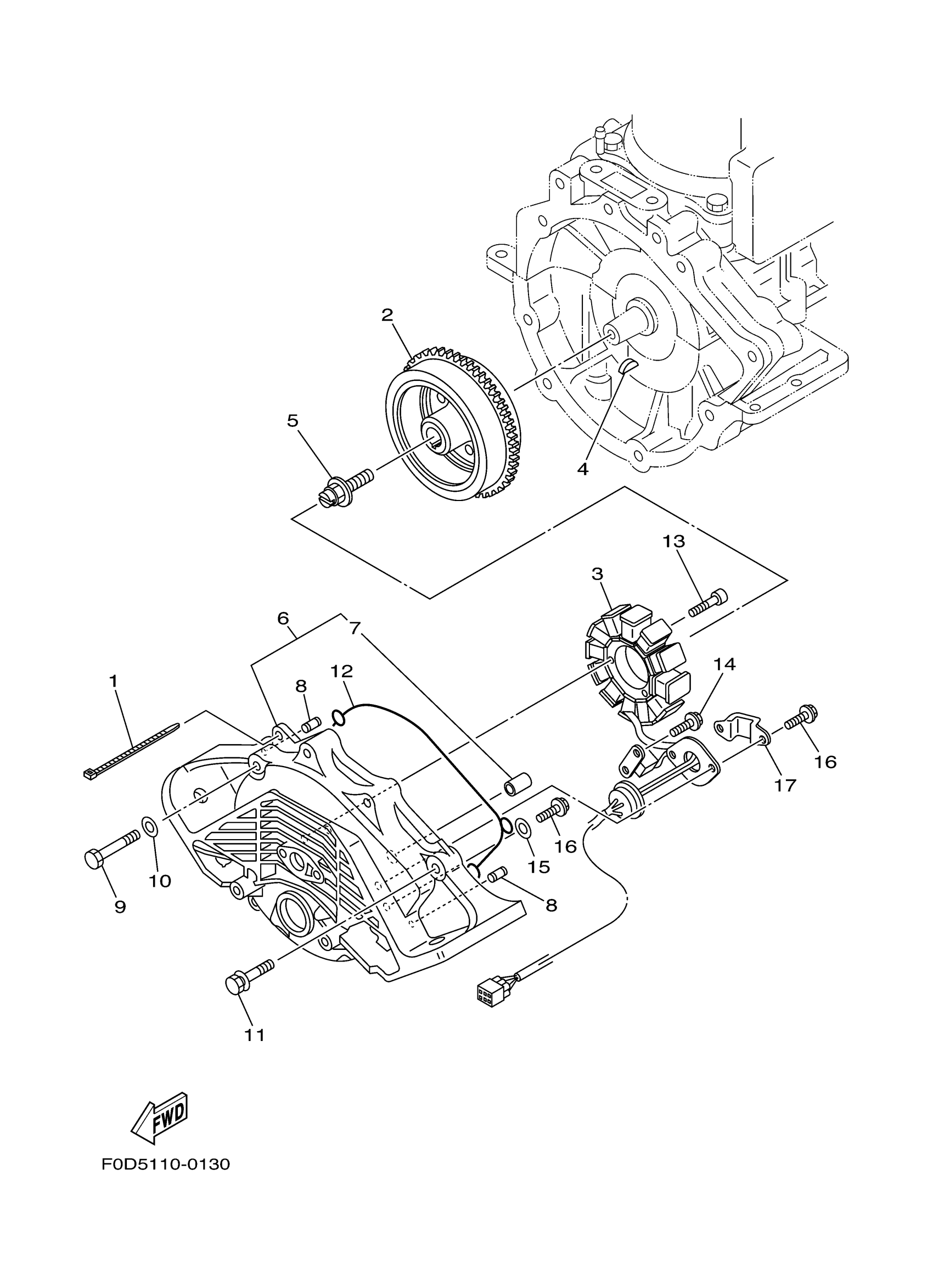

Yamaha GP1200AZ (GP1200R) F0X3 2001 GENERATOR Diagram

#

Description
Price

1

CLAMP

90465-10098-00

$1.68

2

ROTOR ASSY

66V-85550-00-00

Unavailable

3

STATOR ASSY

66V-85510-00-00

$377.26

4

KEY, WOODRUFF

90280-05001-00

$11.00

5

BOLT(63M)

90109-10M72-00

$31.80

6

COVER, FLYWHEEL

66V-81337-02-8P

Unavailable

7

. BUSH, SOLID

90380-12M29-00

Unavailable

8

PIN, DOWEL

93608-16M16-00

$2.41

9

BOLT, HEXAGON

97013-10055-00

Unavailable

10

WASHER, PLATE

92990-10600-00

$2.57

11

BOLT, WITH WASHER

90119-10M17-00

$9.08

12

. O-RING

66V-81168-10-00

Unavailable

13

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

14

BOLT, WITH WASHER

97513-05514-00

$3.64

15

WASHER, PLATE

90201-06M02-00

$2.20

16

BOLT,SOCKET

91318-06014-00

Unavailable

17

CLAMP

66V-81328-00-00

$7.27
