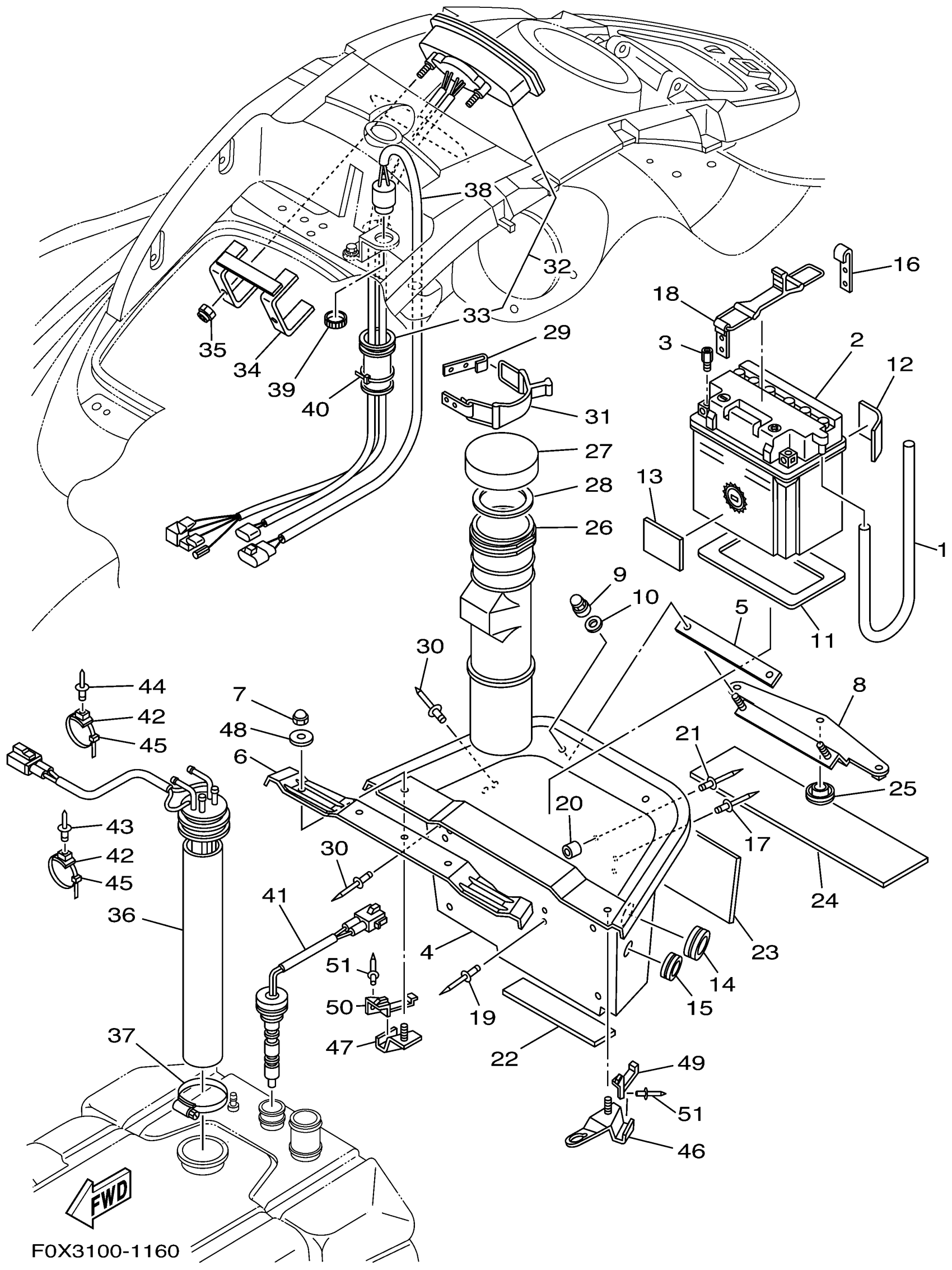

Yamaha GP1200AZ (GP1200R) F0X3 2001 ELECTRICAL 2 Diagram

#

Description
Price

1

HOSE, AIR VENT 3

EU0-U7856-50-00

Unavailable

2

BATTERY ASSY

BTY-YB16C-CB-00

Unavailable

3

NUT

F0W-68239-01-00

$18.92

4

CASE, BATTERY

F1G-U8211-01-00

Unavailable

5

PACKING 5

F0X-U266D-00-00

Unavailable

6

BEAM, DECK 1

F0X-68952-00-00

Unavailable

7

NUT, CROWN

90176-06005-00

$6.82

8

BRACKET, BASE BATTERY

F0X-6821H-00-00

$74.23

9

NUT

90179-08978-00

$6.36

10

WASHER

9299R-08200-00

$1.82

11

PAD, BATTERY

F1S-U8221-00-00

$2.75

12

PAD, BATTERY 3

F0W-U822D-00-00

Unavailable

13

PAD, BATTERY 2

F0W-U822C-00-00

Unavailable

14

GROMMET

90480-279U1-00

$11.35

15

GROMMET

90480-38800-00

$2.73

16

HOOK A

GA7-65772-00-00

$9.08

17

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

18

HOOK COMP

GJ1-66607-00-00

Unavailable

19

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

20

CUSHION, RUBBER

GK5-63768-00-00

$5.80

21

RIVET (EU0)

90267-48938-00

$5.00

22

TRIM, MAT

F0X-6352C-00-00

$8.32

23

MAT

GU0-67593-00-00

$29.99

24

MAT, LOWER

F0X-6351B-00-00

$22.71

25

CAP

F0X-65568-00-00

Unavailable

26

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

27

. CAP, CASE

EW2-U5912-01-00

Unavailable

28

PACKING, CASE

EW2-U5913-01-00

Unavailable

29

HOOK A

GA7-65772-00-00

$9.08

30

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

31

HOOK COMP

GJ1-66607-00-00

Unavailable

32

METER ASSY

F0X-6820A-01-00

Unavailable

33

GROMMET

GU2-6822E-01-00

$24.98

34

BRACKET, METER

GP7-68238-10-00

Unavailable

35

NUT, FLANGE

9572R-05300-00

$1.43

36

SENDER, FUEL

F0V-U824B-04-00

$584.60

37

BAND, HOSE 62

90601-162U5-00

$6.17

38

BUZZER

F1S-68341-00-00

$113.62

39

NUT

F0X-U8239-00-00

Unavailable

40

CLAMP

90464-32801-00

$1.23

41

SENDER, OIL

F0D-U824C-21-00

Unavailable

42

CLAMP COMP (EU0)

90600-91736-00

Unavailable

43

RIVET, BLIND

90267-489U6-00

$1.37

44

RIVET, BLIND

90267-48802-00

$1.98

45

CLAMP

90464-32801-00

$1.23

46

STAY 1

F0X-65938-01-00

$56.99

47

STAY 2

F0X-65939-01-00

$28.77

48

WASHER, PLATE

90201-06014-00

Unavailable

49

PACKING, SEAL 2

F0X-63225-00-00

Unavailable

50

PACKING, SEAL

F0X-63226-00-00

$20.99

51

RIVET, BLIND

90267-489U6-00

$1.37
