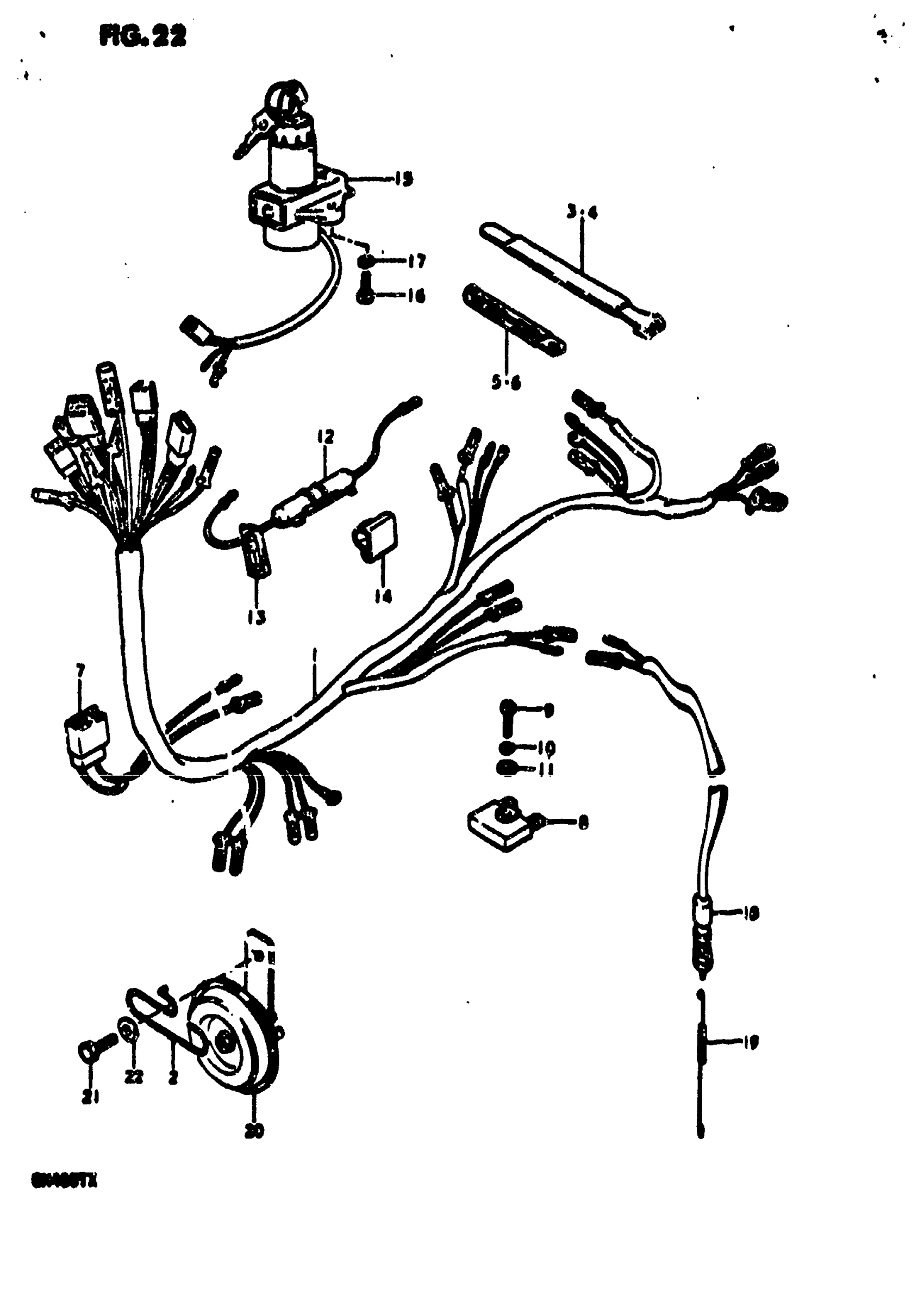

Suzuki GN400T (1981) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-37310

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 36619-37300.

36619-05300

Unavailable

3

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

4

CLAMP

09407-14401

$3.77

5

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

6

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

7

LEAD WIRE, DC LIGHTING

36853-37220

Unavailable

8

DIODE This part replaces 32800-19063.

32800-16A00

$23.07

9

SCREW This part replaces 02112-05208.

02112-05207

$1.97

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

FUSE CASE ASSY | Includes Item(s) 13 This part replaces 36740-15010.

36740-15011

$9.38

13

FUSE (15A)

09481-15001

$2.06

14

HOLDER

36791-46700

$5.50

15

SWITCH ASSY, IGNITION | Includes Item(s) 16 - 17 This part replaces 37100-37300.

37100-37301

Unavailable

16

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

$19.18

19

SPRING

09443-06011

$3.40

20

HORN ASSY This part replaces 38500-37380.

38500-37310

Unavailable

21

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13
