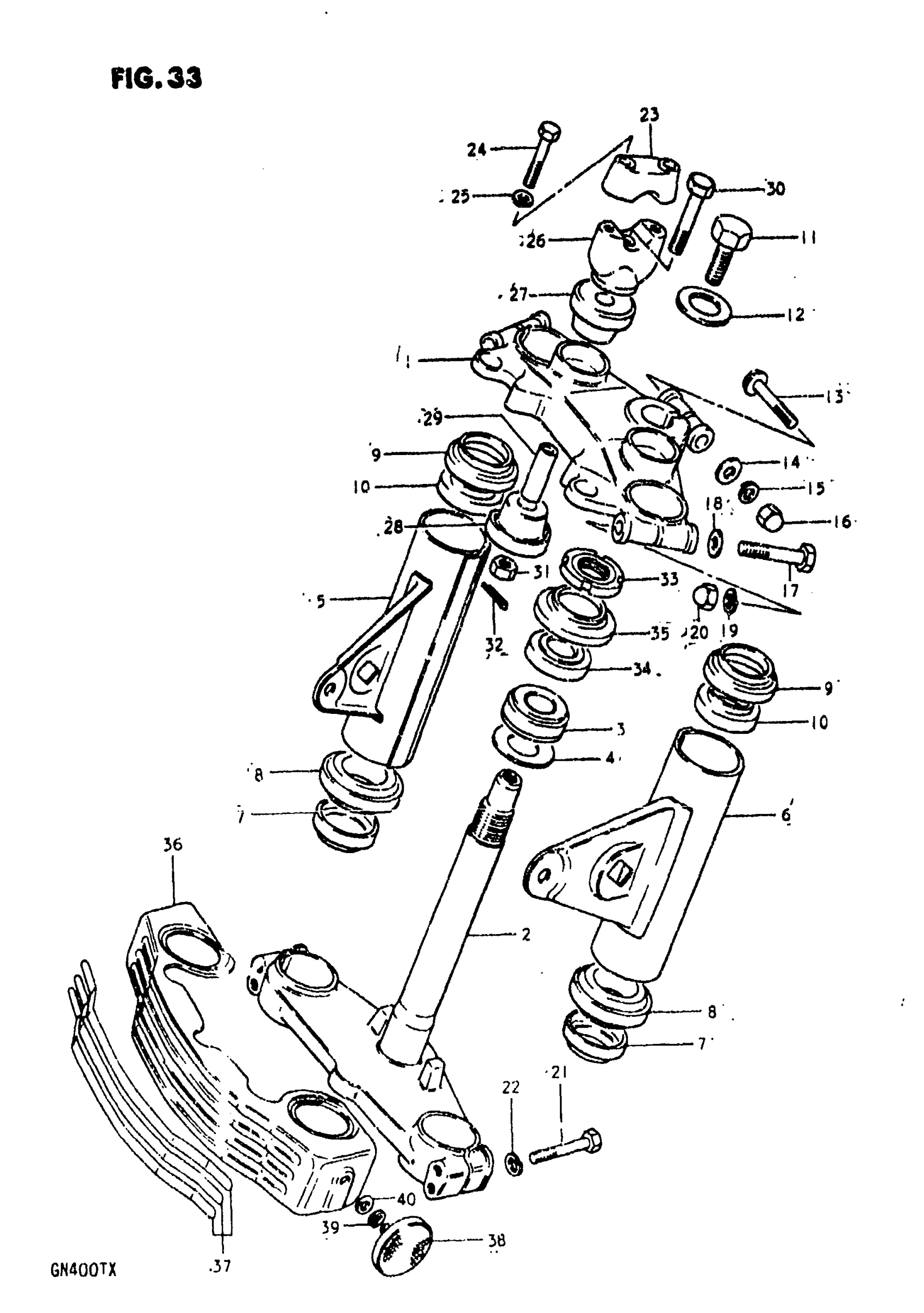

Suzuki GN400T (1981) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING | BLACK

51311-37301-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51400-37810.

51400-37822

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BRACKET, HEADLAMP RH

51530-37302

Unavailable

6

BRACKET, HEADLAMP LH

51540-37301

Unavailable

7

SEAT, LOWER

51551-37310

Unavailable

8

CUSHION, LOWER

51553-37300

Unavailable

9

CAP

51555-37300

Unavailable

10

CUSHION, UPPER

51556-37300

Unavailable

11

BOLT

09104-12013

$4.11

12

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

13

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

NUT This part replaces 08313-11085.

08313-1008B

$2.80

17

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

18

WASHER This part replaces 08322-11108.

08322-01107

$2.15

19

LOCK WASHER This part replaces 08321-31105.

08321-0110A

$1.84

20

NUT This part replaces 08313-11105.

08313-1010A

$2.35

21

BOLT This part replaces 01107-08458.

01500-08453

$2.50

22

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

23

CLAMP, HANDLEBAR UPPER | BLACK

56211-27200-291

$17.90

24

BOLT

01204-08357

$2.09

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

HOLDER, HANDLE LOWER (BLACK) | BLACK This part replaces 56221-33600-291.

56221-42A00-291

$45.38

27

CUSHION, UPPER

56240-37301

Unavailable

28

NO DESCRIPTION AVAILABLE This part replaces 56240-37311.

56240-38A10

Unavailable

29

SPACER

09180-10065

$5.28

30

BOLT

09101-10025

Unavailable

31

NUT This part replaces 08319-21108.

09159-10027

$3.10

32

PIN This part replaces 04111-20308.

04111-2030A

$1.50

33

NUT, STEERING STEM

51631-28000

$17.37

34

BEARING, UPPER

09265-25008

Unavailable

35

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

36

COVER, FRONT FORK This part replaces 51871-49101.

51871-49102

Unavailable

37

TAPE

68200-49810

Unavailable

38

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

39

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

40

WASHER This part replaces 08322-21058.

08322-01057

$2.13
