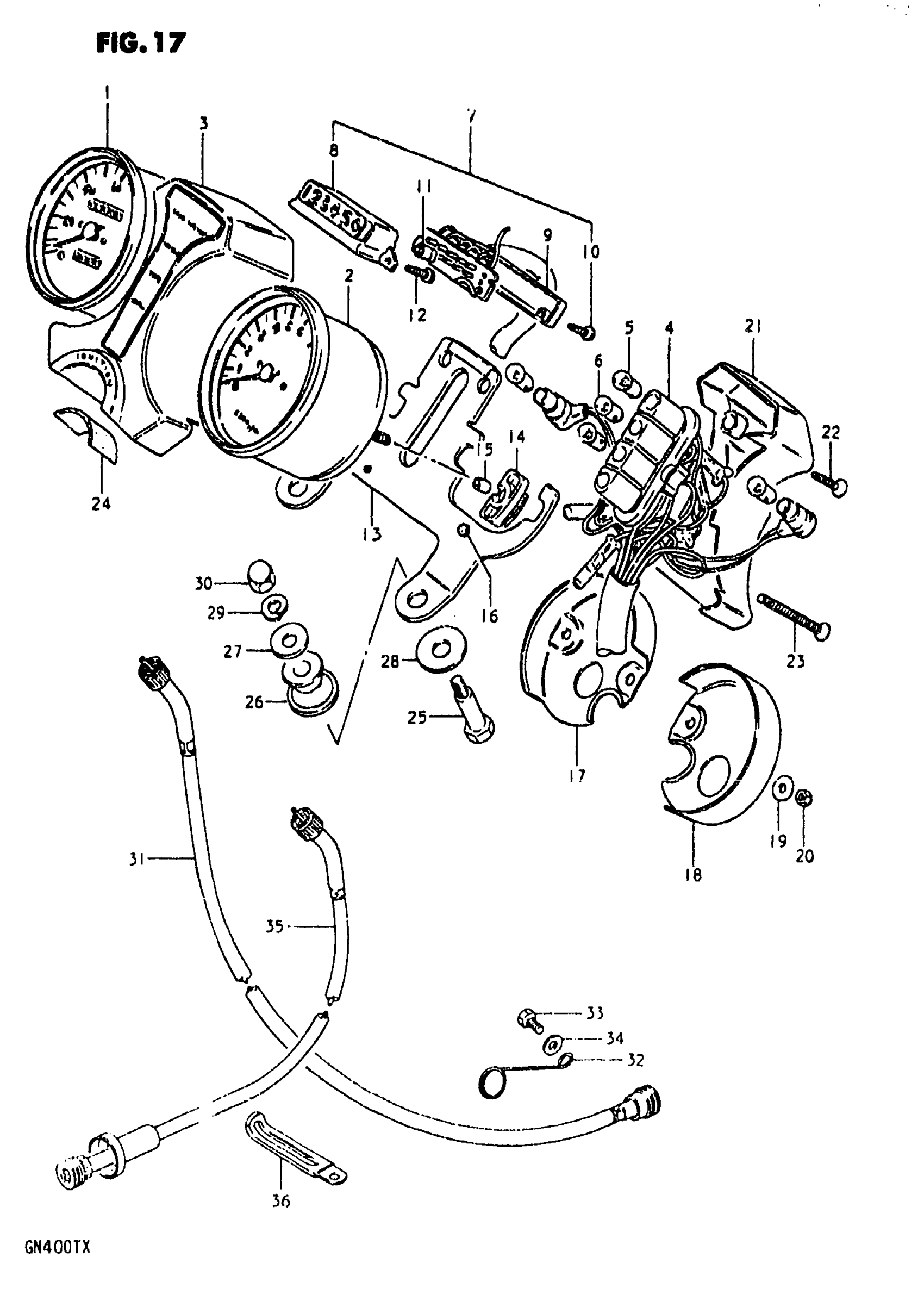

Suzuki GN400T (1981) SPEEDOMETER - TACHOMETER Diagram

SPEEDOMETER | MILE & KILO SCALE This part replaces 34110-37310.

34110-37410

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 34210-37310.

34210-37300

Unavailable

CASE, PILOT BOX

36380-37300

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 34173-37300.

34173-37301

Unavailable

BULB (6V,3W)

09471-06002

$2.25

BULB (6V,1.7W)

09471-06001

$2.18

INDICATOR, GEAR POSITION | Includes Item(s) 8 - 11

36450-37300

Unavailable

CASE, INGICATOR

36452-45100

Unavailable

COVER, LOWER

36454-45100

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

BULB

09471-06051

Unavailable

SCREW

36457-45100

Unavailable

BRACKET | MODEL T This part replaces 34950-37300.

34950-37301

Unavailable

BRACKET | MODEL X

34950-37301

Unavailable

CUSHION

34189-37300

Unavailable

SPACER

34972-44022

Unavailable

CUSHION

34191-37300

Unavailable

ORNAMENT, SPEEDOMETER

34193-37300

Unavailable

ORNAMENT, TACHOMETER

34293-37300

Unavailable

WASHER This part replaces 08322-21058.

08322-01057

$2.13

NUT This part replaces 08313-11057.

08313-1005A

$1.93

COVER

36382-37300

Unavailable

SCREW

03231-04205

Unavailable

SCREW

36387-37300

Unavailable

SEAL

34993-47000

Unavailable

BOLT This part replaces 09111-08040.

09111-08031

Unavailable

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

WASHER This part replaces 09160-08047.

09160-08130

$2.03

WASHER This part replaces 09160-10028.

09160-10035

$1.78

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

NUT This part replaces 08313-11088.

08313-10087

$2.28

CABLE,SPEEDOMET This part replaces 34910-37310.

34910-37311

$38.57

CLAMP

34938-37000

$3.73

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

WASHER This part replaces 08322-21068.

08322-01067

$2.13

CABLE,TACHOMETE This part replaces 34940-37310.

34940-37312

$51.10

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
