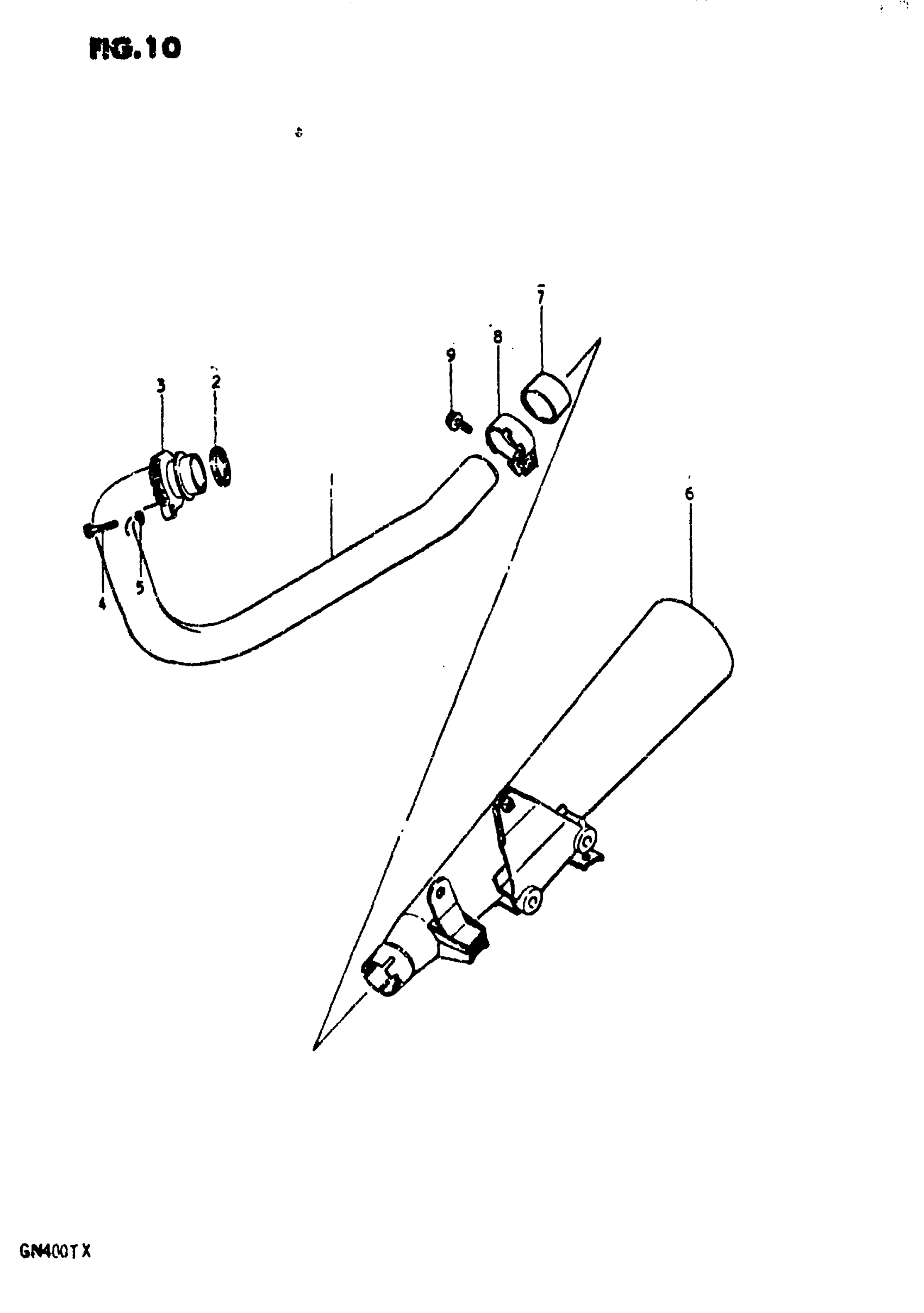

Suzuki GN400T (1981) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-37300

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

3

CLAMP

14182-44010

Unavailable

4

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

NO DESCRIPTION AVAILABLE This part replaces 14301-37300.

14301-37321-H01

Unavailable

7

CONNECTOR,MUFFL This part replaces 14771-37300.

14771-49010

$27.48

8

CLAMP (W:25) | MODEL T

14459-49000

Unavailable

8

CLAMP (W:16) | MODEL X

14459-37300

Unavailable

9

BOLT | MODEL T This part replaces 01517-08258.

01550-08257

$2.81

9

BOLT | MODEL X This part replaces 09100-08148.

01500-0835B

$3.04
