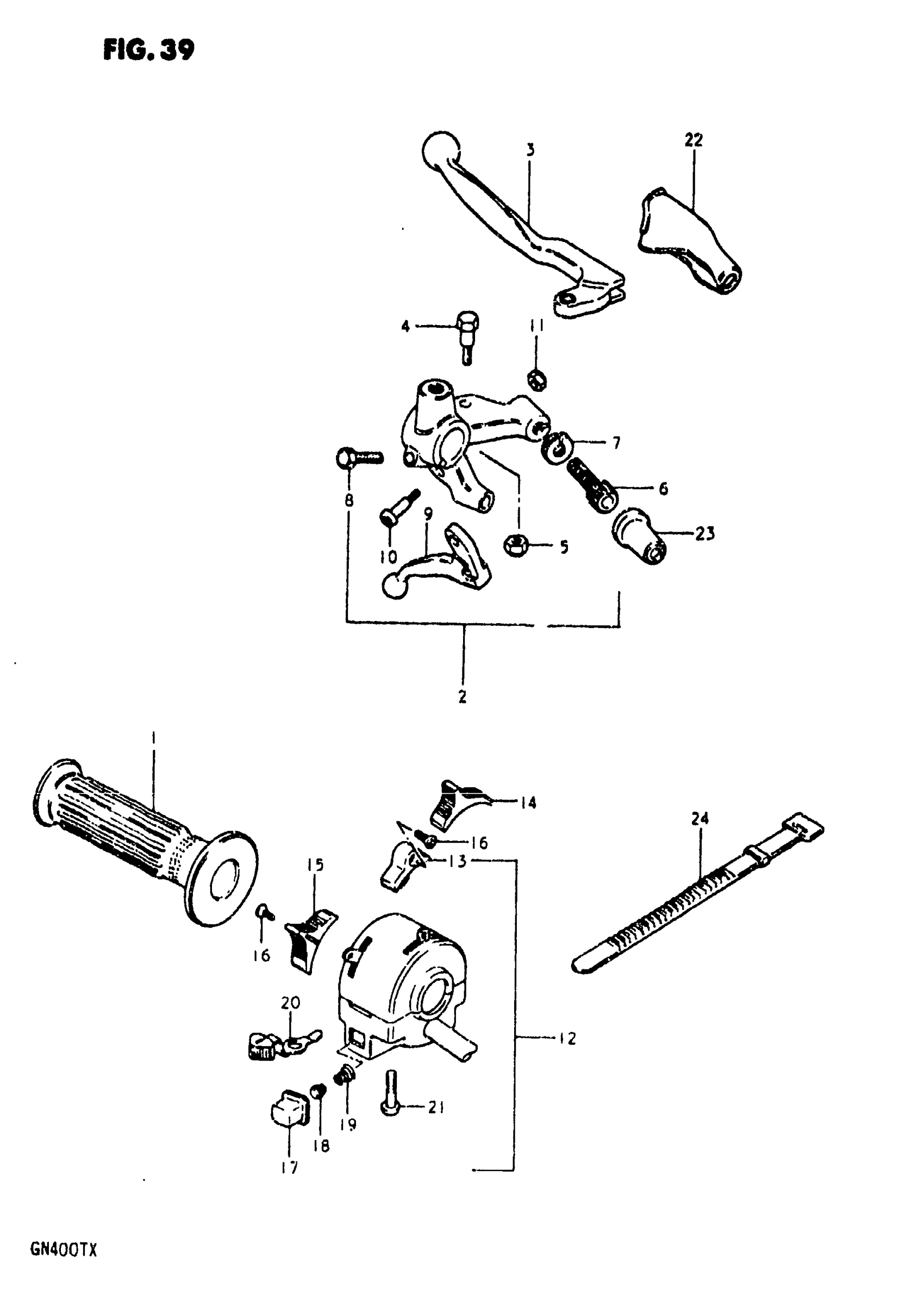

Suzuki GN400T (1981) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.44

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 11

57500-37111

Unavailable

3

LEVER, CLUTCH

57620-26500

$25.90

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER, CABLE

57441-11010

$5.62

7

NUT

57442-11010

$2.79

8

BOLT This part replaces 01107-06208.

01500-06207

$2.28

9

LEVER, DECOMP

58731-37110

Unavailable

10

SCREW This part replaces 57431-01011.

57431-01012

$5.24

11

SCREW This part replaces 57633-27500.

08319-21057

$2.07

12

NO DESCRIPTION AVAILABLE | GN400T,GN400TX This part replaces 37400-32411.

37400-32412

Unavailable

12

NO DESCRIPTION AVAILABLE | GN400XT,GN400XX; Includes Item(s) 13 - 21 This part replaces 37400-32450.

37400-32412

Unavailable

13

KNOB, STOPPER

37414-45602

Unavailable

14

KNOB, LIGHTING | OPT

37411-45012

$5.24

15

KNOB, DIMMER SWITCH This part replaces 37427-45011.

37421-45012

$6.17

16

SCREW This part replaces 02122-03068.

02122-03067

$1.80

17

BUTTON, HORN

57371-45000

$4.52

18

CONTACT

57372-45000

$4.45

19

SPRING

57382-45000

$3.37

20

KNOB, TURN SIGNAL

37513-45011

$7.22

21

SCREW This part replaces 02112-05258.

02112-05257

$1.49

22

COVER

57661-31000

$7.25

23

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

24

BAND (L:120)

09407-12402

$3.04
