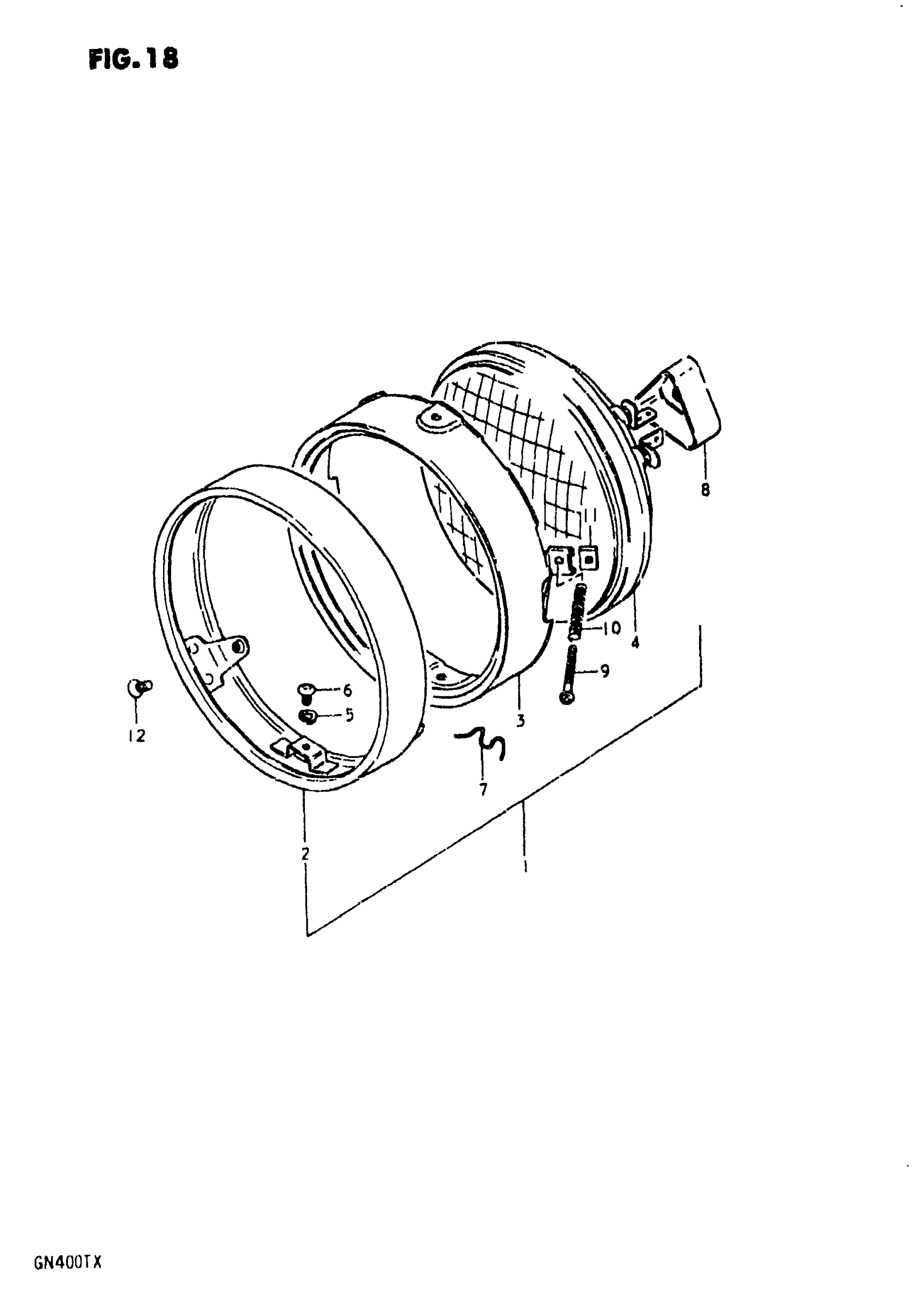

Suzuki GN400T (1981) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 11

35100-37330

Unavailable

2

RIM

35111-44250

Unavailable

3

RING

35127-29610

Unavailable

4

UNIT (6V,35/35W)

35121-32410

Unavailable

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

SCREW

35136-29610

Unavailable

7

SPRING

35128-29611

Unavailable

8

COVER, SOCKET

35173-29610

Unavailable

9

SCREW

35151-31610

Unavailable

10

SPRING

35154-33630

Unavailable

11

NUT

35152-15611

$3.25

12

SCREW This part replaces 02132-05108.

02122-05107

$1.49
