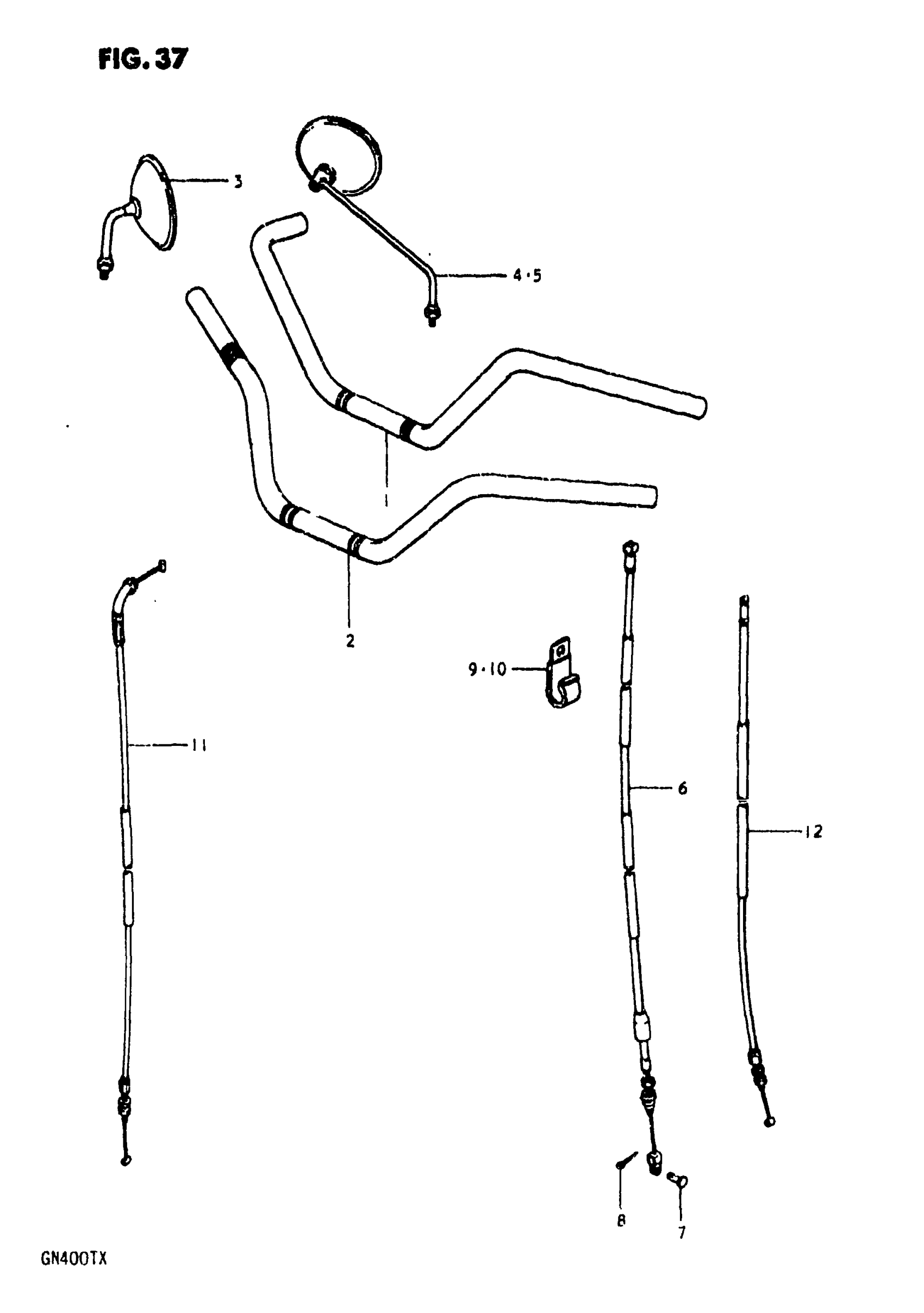

Suzuki GN400T (1981) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | GN400T

56110-37300

Unavailable

1

HANDLEBAR | GN400TX

56110-37330

Unavailable

2

HANDLEBAR | GN400XT,GN400XX

56110-37310

Unavailable

3

MIRROR, REAR VIEW | GN400T,GN400TX

56500-37300

Unavailable

4

MIRROR ASSY,RR | GN400XT,GN400XX This part replaces 56500-45100.

56500-38AB2

$357.02

5

MIRROR ASSY,RR | GN400XT,GN400XX This part replaces 56600-45100.

56500-38AB2

$357.02

6

CABLE, CLUTCH | GN400T

58200-37300

Unavailable

6

CABLE, CLUTCH | GN400TX

58200-37330

Unavailable

6

CABLE, CLUTCH | GN400XT,GN400XX

58200-37310

Unavailable

7

PIN

09200-06011

Unavailable

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

9

CLAMP This part replaces 09403-00059.

09404-08420

$3.16

10

CLAMP This part replaces 09403-00069.

09404-06037

Unavailable

11

NO DESCRIPTION AVAILABLE | GN400T This part replaces 58300-37300.

58300-37301

Unavailable

11

CABLE,THROTTLE | GN400TX This part replaces 58300-37100.

58300-37101

Unavailable

11

CABLE,THROTTLE | GN400XT,GN400XX This part replaces 58300-37310.

58300-37311

Unavailable

12

CABLE, DECOMP | GN400T

58900-37300

Unavailable

12

CABLE, DECOMP | GN400TX

58900-37330

Unavailable

12

CABLE, DECOMP | GN400XT,GN400XX

58900-37310

Unavailable
