Partiron

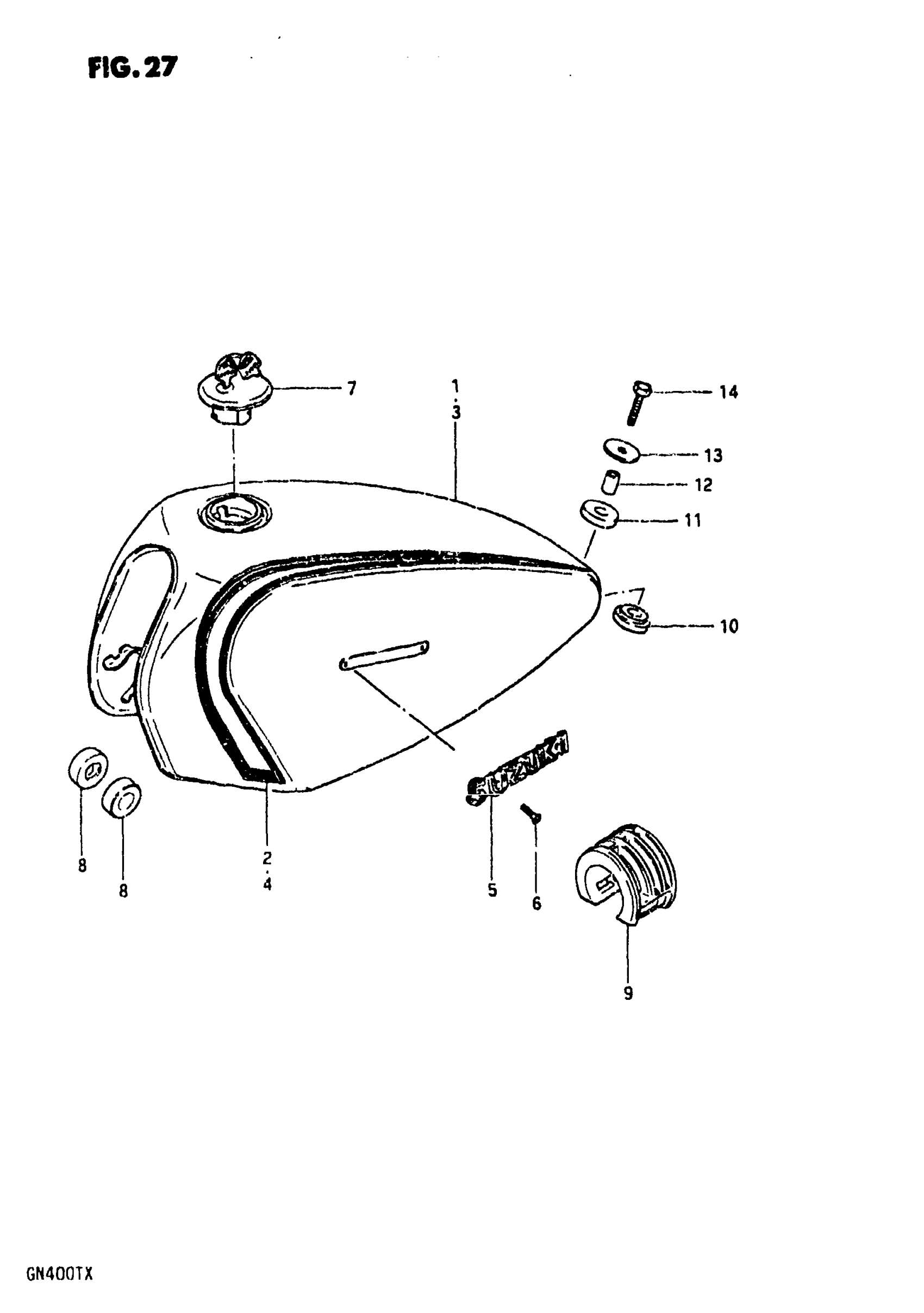

Suzuki GN400T (1981) FUEL TANK (GN400TX Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GN400TX; Includes Item(s) 2 This part replaces 44100-37330-019.

44110-37302-13L

Unavailable

2

TAPE SET | GN400TX

68110-37310-75M

Unavailable

3

NO DESCRIPTION AVAILABLE | GN400XX; Includes Item(s) 4 This part replaces 44100-37330-10S.

44100-37331-10S

Unavailable

4

TAPE SET | GN400XX

68110-37310-75N

Unavailable

5

EMBLEM

68111-44200

Unavailable

6

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

7

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

$94.67

8

CUSHION, FRONT

09329-10014

Unavailable

9

CUSHION, CENTER

44541-32410

Unavailable

10

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

$2.60

11

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

$2.18

12

SPACER 8.2X12X1 This part replaces 09180-08032.

09180-08143

$3.77

13

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

14

BOLT This part replaces 01107-08308.

01500-08307

$3.04
