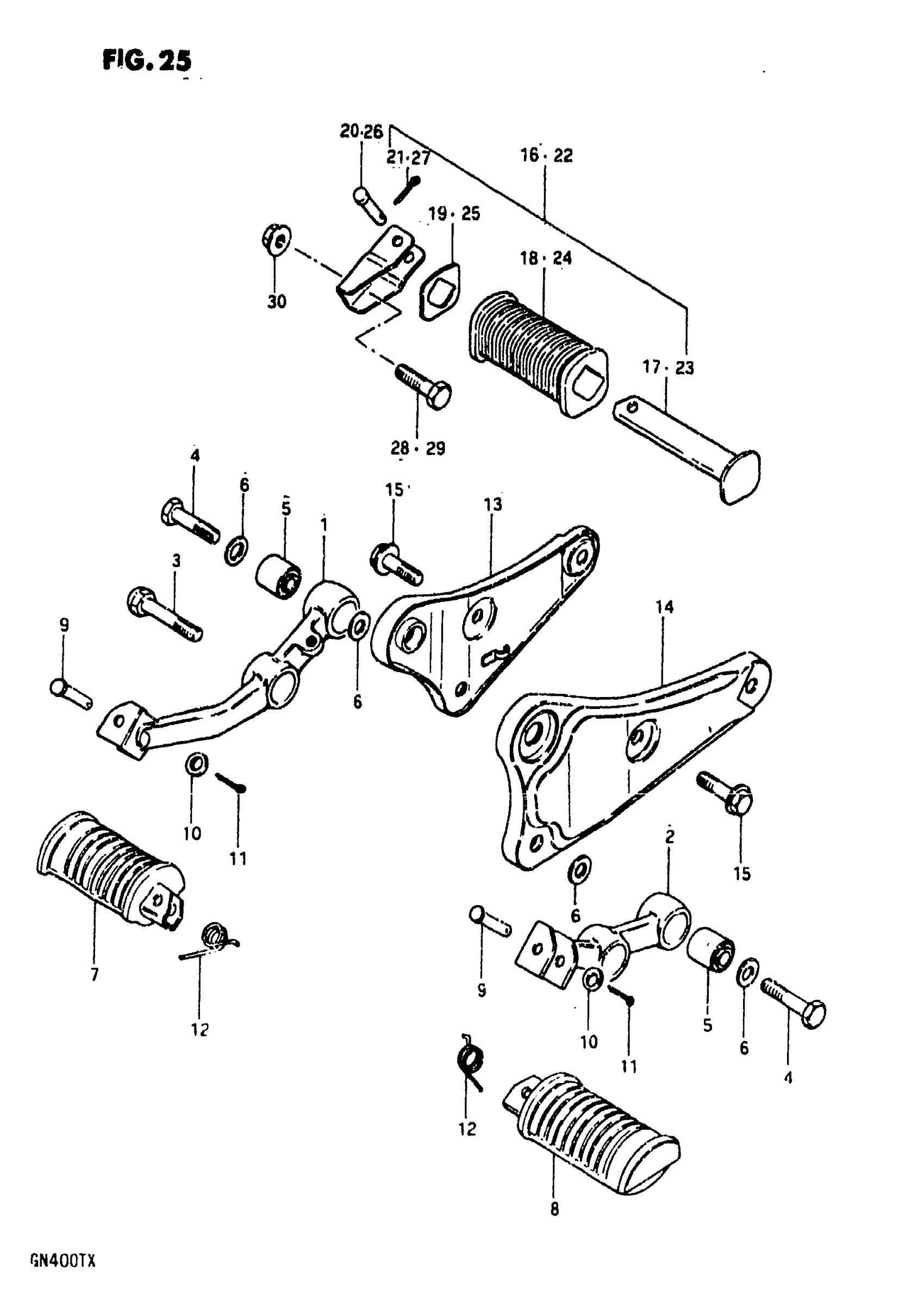

Suzuki GN400T (1981) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH | GN400X : ~F.NO. 102630 GN400 : ~F.NO.502366

43510-37300

Unavailable

1

BAR, FOOTREST RH | GN400X : F.NO. 102631~ GN400 : F.NO.502367~

43510-37301

Unavailable

2

BAR, FOOTREST LH

43520-37300

Unavailable

3

BOLT

09104-10009

Unavailable

4

BOLT

09104-10010

Unavailable

5

BUSH

09319-10033

$6.83

6

WASHER This part replaces 09160-10059.

09160-10124

$2.35

7

RUBBER,PILLION This part replaces 43550-37300.

43550-37310

$25.47

8

FOOTREST LH This part replaces 43560-37300.

43560-37310

$32.98

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

SPRING

09448-14012

$3.04

13

BRACKET, PILLION RH | MODEL T This part replaces 43810-37300.

43810-37302

Unavailable

13

BRACKET, PILLION RH | MODEL X This part replaces 43810-37301.

43810-37302

Unavailable

14

BRACKET, PILLION LH

43820-37300

Unavailable

15

BOLT, PROP SHAFT REAR This part replaces 01527-10207.

01550-1020A

$3.05

16

FOOTREST ASSY, PILLION RH | GN400X : ~F.NO. 105475 GN400 : ~F.NO.504989 This part replaces 43600-37300.

43600-37301

Unavailable

16

FOOTREST ASSY, PILLION LH | GN400X : ~F.NO. 105475 GN400 : ~F.NO.504989; Includes Item(s) 17 - 21 This part replaces 43700-37300.

43700-37301

Unavailable

17

BAR, RH | GN400X : ~F.NO. 105475 GN400 : ~F.NO.504989 This part replaces 43610-49200.

43610-49201

Unavailable

17

BAR, LH | GN400X : ~F.NO. 105475 GN400 : ~F.NO.504989 This part replaces 43620-49200.

43620-49201

Unavailable

18

RUBBER | GN400X : ~F.NO. 105475 GN400 : ~F.NO.504989 This part replaces 43612-49200.

43612-49201

Unavailable

19

WASHER | GN400X : ~F.NO. 105475 GN400 : ~F.NO.504989 This part replaces 43631-49200.

43631-45001

Unavailable

20

PIN | GN400X : ~F.NO. 105475 GN400 : ~F.NO.504989

09200-06035

Unavailable

21

.COTTER PIN | GN400X : ~F.NO. 105475 GN400 : ~F.NO.504989 This part replaces 04111-20158.

04111-2015A

$1.49

22

FOOTREST ASSY, PILLION RH | GN400X : F. NO. 105476~ GN400 : F.NO.504990~

43600-37301

Unavailable

22

FOOTREST ASSY, PILLION LH | GN400X : F. NO. 105476~ GN400 : F.NO.504990~; Includes Item(s) 23 - 27

43700-37301

Unavailable

23

BAR | GN400X : F. NO. 105476~ GN400 : F.NO.504990~

43610-49201

Unavailable

24

COVER | GN400X : F.NO.105476~ GN400 : F. NO.504990~

43612-49201

Unavailable

25

WASHER | GN400X : F. NO.105476~ GN400 : F.NO.504990~ This part replaces 43631-49201.

43631-45001

Unavailable

26

PIN | GN400X : F. NO.105476~ GN400 : F.NO.504990~

09200-06035

Unavailable

27

.COTTER PIN | GN400X : F.NO.105476~ GN400 : F.NO.504990~ This part replaces 04111-20158.

04111-2015A

$1.49

28

BOLT, RH This part replaces 01527-10308.

01550-10307

$3.91

29

BOLT (10X20) This part replaces 01527-10258.

01550-1025A

$3.05

30

NUT This part replaces 08310-22108.

08310-00107

$2.19
