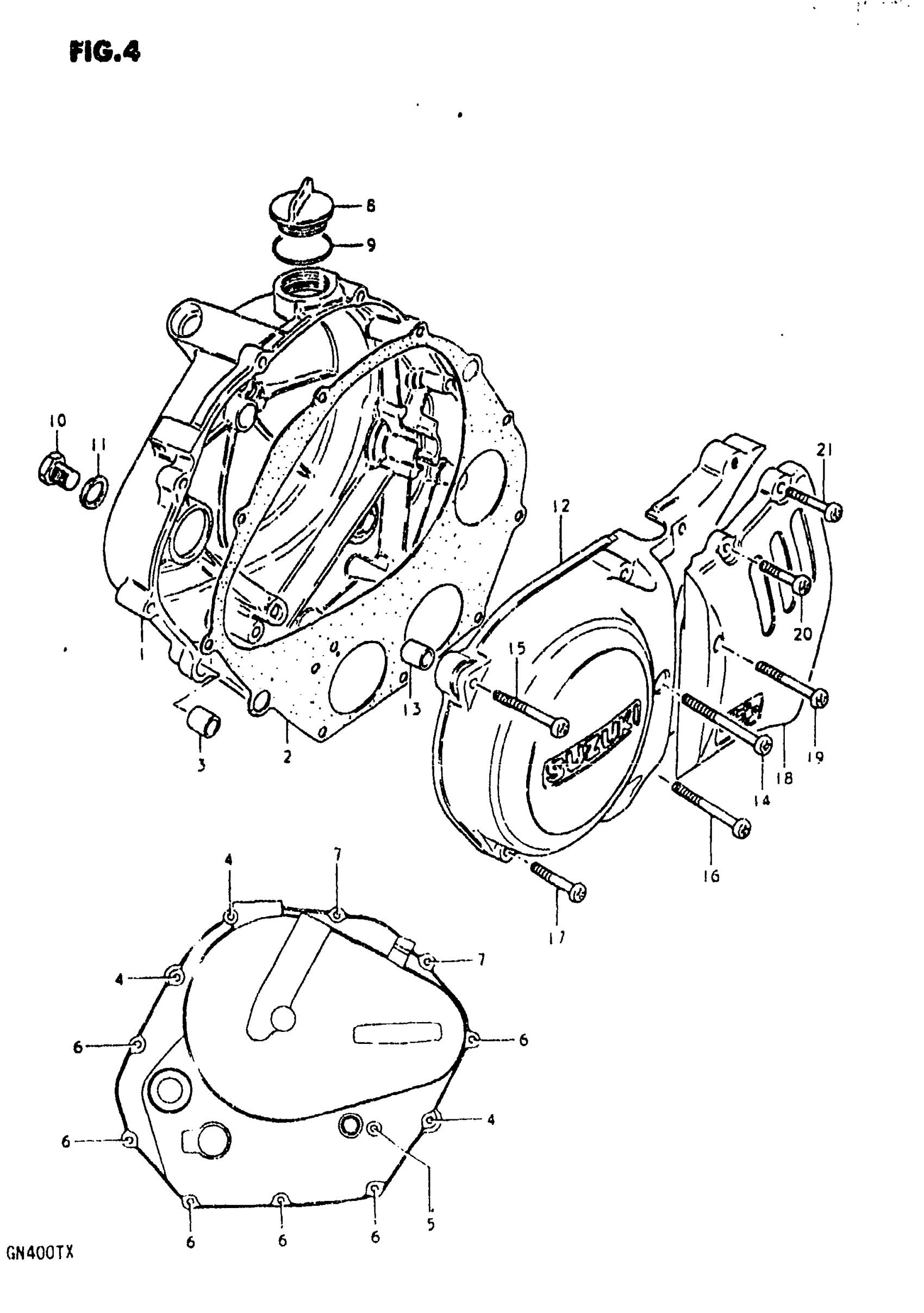

Suzuki GN400T (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11340-32601.

11340-32602

Unavailable

2

GASKET,CL COVER This part replaces 11482-32400.

11482-32400-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

5

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

9

GASKET

09280-32005

$1.99

10

PLUG This part replaces 09247-14012.

09247-14026

$3.76

11

GASKET

09168-14004

$1.83

12

COVER, MAGNETO This part replaces 11351-32600.

11351-32601

Unavailable

13

PIN This part replaces 09206-13001.

04211-13189

$2.19

14

SCREW This part replaces 02112-06608.

02112-06607

$2.57

15

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

16

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

17

SCREW This part replaces 02112-06358.

02112-06357

$1.78

18

COVER, ENGINE SPROCKET This part replaces 11361-32600.

11361-32601

Unavailable

19

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

20

SCREW This part replaces 02112-06258.

02112-06257

$1.78

21

SCREW This part replaces 02112-06208.

02112-06207

$1.78
