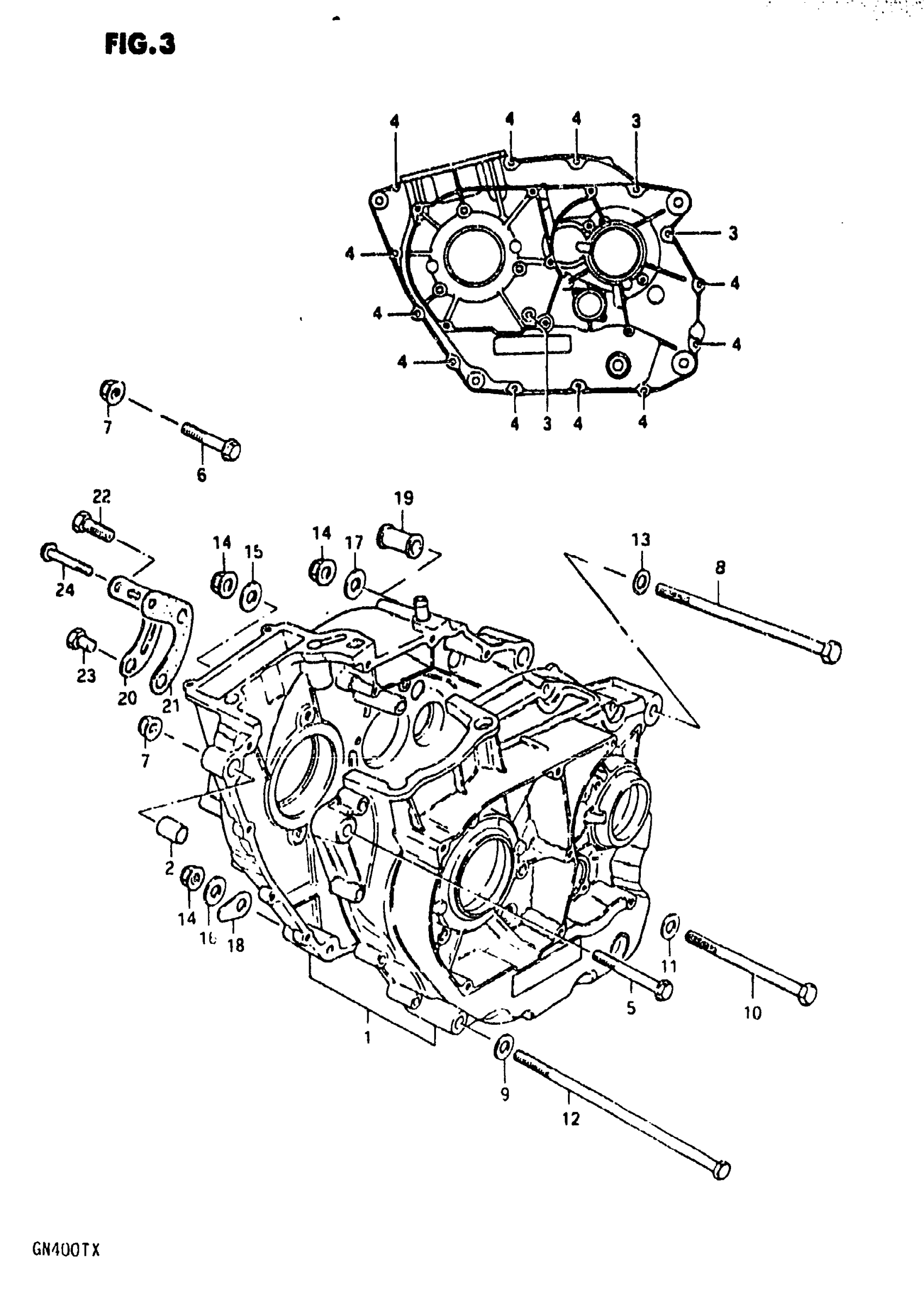

Suzuki GN400T (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 4

11300-32600

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

4

SCREW This part replaces 02112-06358.

02112-06357

$1.78

5

BOLT This part replaces 01517-08708.

01550-08707

$3.91

6

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

7

NUT This part replaces 08319-31088.

08319-3108A

$2.32

8

BOLT (10x190)

09100-10120

Unavailable

9

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

10

NO DESCRIPTION AVAILABLE This part replaces 09100-10116.

09116-10042

Unavailable

11

WASHER (10.5X20X3.2)

09160-10005

$1.87

12

BOLT (10x155)

09100-10121

Unavailable

13

WASHER This part replaces 08322-21108.

08322-01107

$2.15

14

NUT This part replaces 08319-31108.

08319-31107

$2.73

15

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

16

WASHER (10.5X20X3.2)

09160-10005

$1.87

17

WASHER This part replaces 08322-21108.

08322-01107

$2.15

18

SHIM (T:1.0) | (0~1)

09169-10011

Unavailable

18

SHIM (T:0.6) | (0~2)

09169-10012

Unavailable

19

SPACER

11610-32400

Unavailable

20

CAP, OIL GALLERY

11394-32400

Unavailable

21

GASKET

11497-32400

Unavailable

22

UNION This part replaces 09360-10007.

09360-10017

$3.42

23

BOLT (10x12)

09247-10001

$2.20

24

BOLT This part replaces 01517-06558.

01550-06557

$3.30
