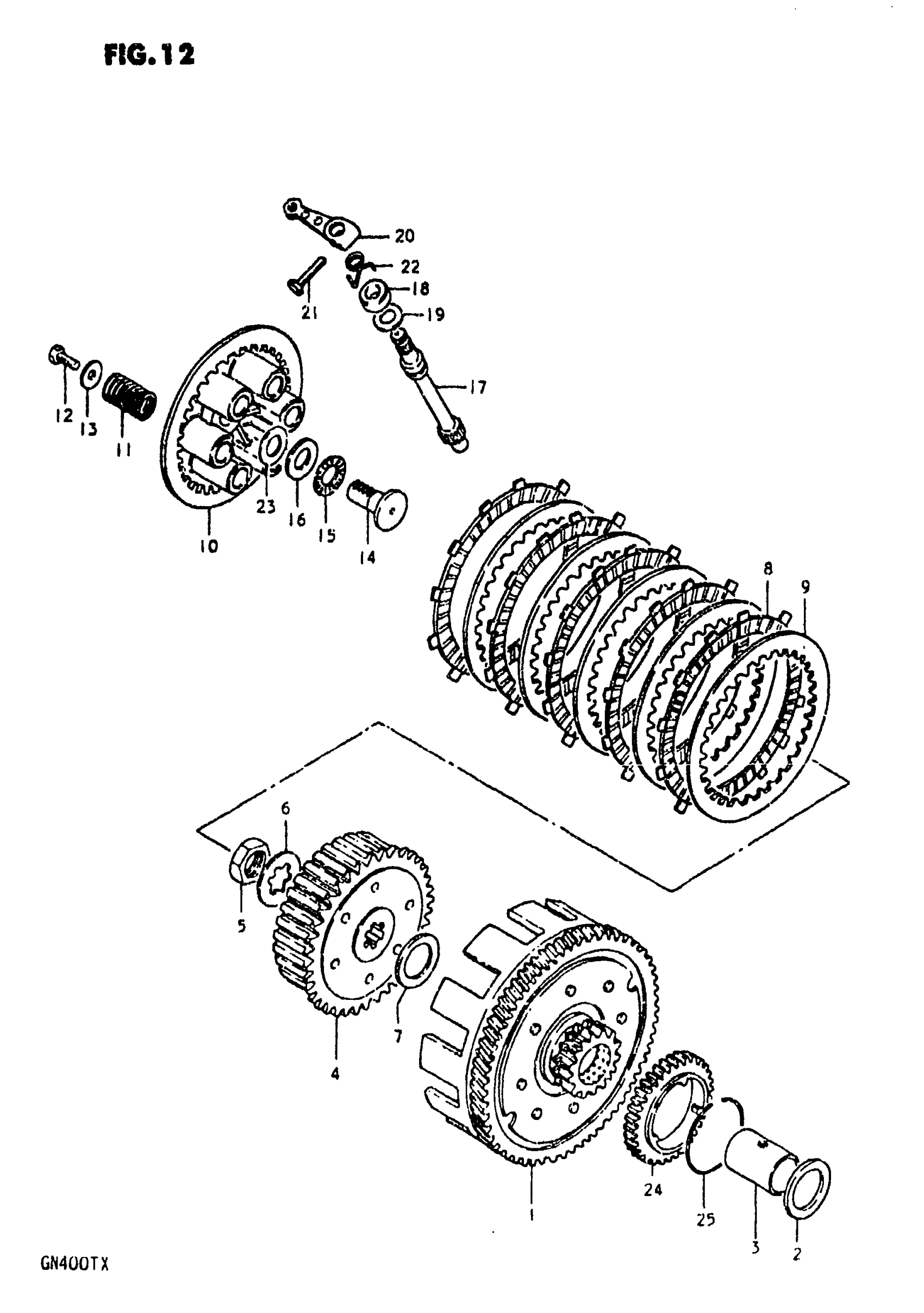

Suzuki GN400T (1981) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:71/19

21200-37100

Unavailable

2

WASHER

08211-22383

$3.93

3

SPACER

09180-22014

Unavailable

4

HUB, SLEEVE

21411-38100

Unavailable

5

NUT This part replaces 09140-20002.

09140-20001

$3.37

6

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

7

WASHER

09160-20028

Unavailable

8

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$18.13

9

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

10

PLATE, PRESSURE This part replaces 21462-16500.

21462-14301

$59.33

11

SPRING This part replaces 09440-19013.

09440-19027

$5.10

12

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

13

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

14

NO DESCRIPTION AVAILABLE This part replaces 23165-16501.

23165-16502

Unavailable

15

BEARING

09263-15003

$8.29

16

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

17

PINION, RELEASE This part replaces 23261-16500.

23261-16501

Unavailable

18

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

19

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

$2.07

20

ARM, RELEASE This part replaces 23271-49001.

23271-45400

Unavailable

21

BOLT This part replaces 01517-06208.

01550-06207

$2.30

22

SPRING

09448-15005

Unavailable

23

WASHER, WAVE

09164-16003

$2.45

24

GEAR, OIL PUMP DRIVE (NT:47)

16321-32401

Unavailable

25

CIRCLIP

09380-50001

$1.94
