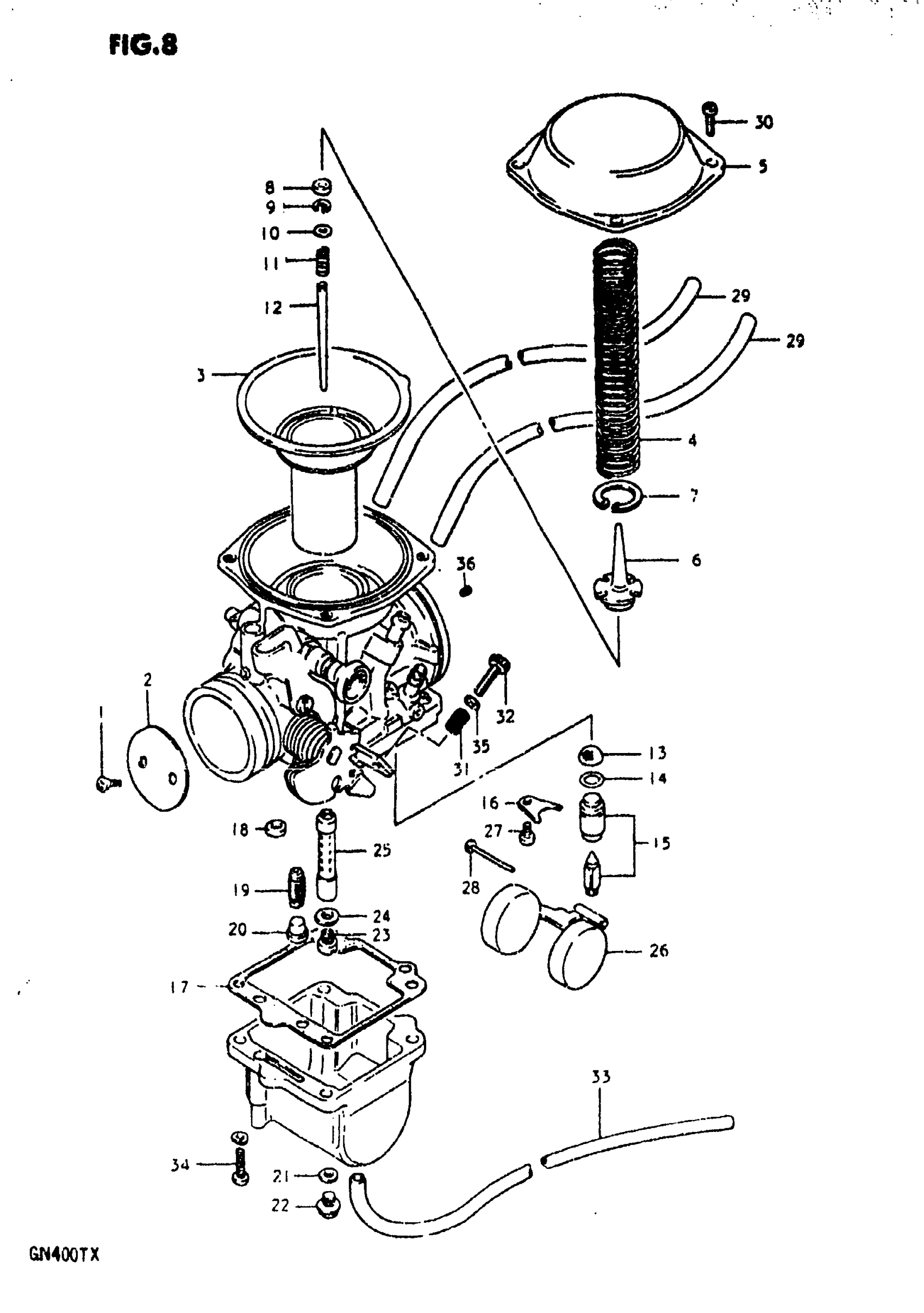

Suzuki GN400T (1981) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 36

13200-37300

Unavailable

1

SCREW

13604-44080

$2.92

2

VALVE, THROTTLE (125)

13551-37100

Unavailable

3

DIAPHRAGM

13500-37100

Unavailable

4

SPRING

13503-37100

Unavailable

5

COVER

13502-37100

Unavailable

6

GUIDE HOLDER

13389-44030

Unavailable

7

CLIP

13581-44030

$6.78

8

RING

13387-44030

$5.83

9

E RING

13394-31210

$4.64

10

WASHER

13382-44030

$3.71

11

SPRING

13388-44030

$8.12

12

NEEDLE, JET (5C33)

13383-37100

Unavailable

13

FILTER This part replaces 13376-44080.

13376-19F00

$10.28

14

O RING This part replaces 66263-99050.

13374-35C00

$5.99

15

VALVE ASSY, NEEDLE This part replaces 13370-37100.

13370-05530

$71.40

16

PLATE

13373-39110

$6.64

17

.GASKET This part replaces 13251-37100.

13251-37101

$11.25

18

GASKET

13258-44080

Unavailable

19

JET, PILOT (42.5)

09492-42007

Unavailable

20

PLUG

13357-44080

$5.10

21

GASKET

13246-44080

$2.80

22

SCREW

13247-44080

$7.97

23

JET, MAIN (132.5)

09491-26012

$11.18

24

WASHER

13382-03110

$2.80

25

JET, NEEDLE (Y-6)

09494-00299

Unavailable

26

FLOAT

13250-37100

$30.36

27

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

28

PIN, FLOAT

13254-92311

$2.07

29

HOSE,5X10X600 This part replaces 13684-37100.

44421-13ER0

$10.06

30

SCREW This part replaces 02112-05128.

02112-05127

$1.97

31

SPRING This part replaces 13271-37100.

13271-93011

$5.32

32

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

33

HOSE (3.5X6.5X6OO) This part replaces 13683-47020.

13683-45070

$11.80

34

SCREW This part replaces 02112-05168.

02112-05167

$1.97

35

WASHER

13277-37100

$2.15

36

JET, PILOT AIR (100)

09493-20006

Unavailable
