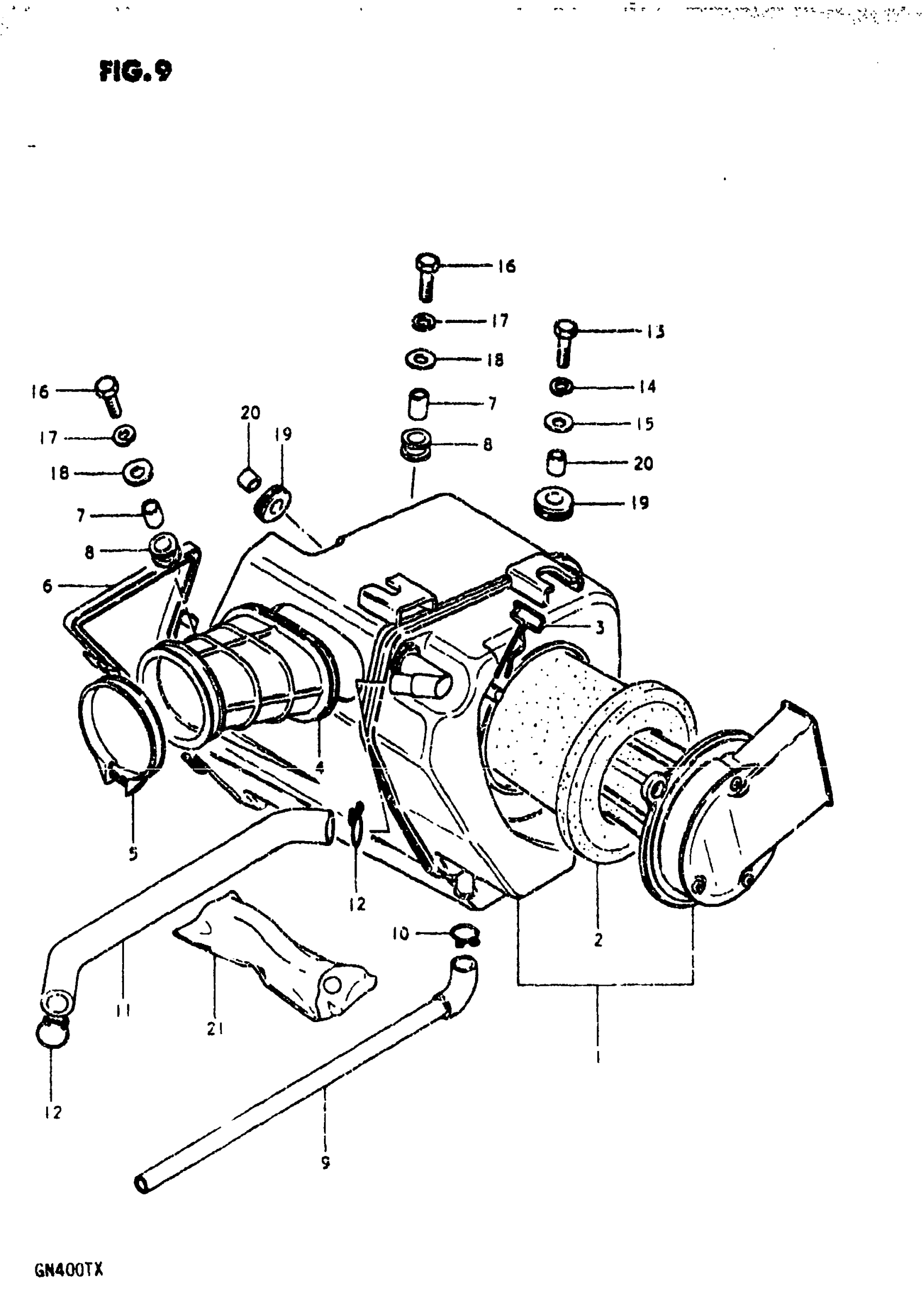

Suzuki GN400T (1981) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-37300

Unavailable

2

FILTER

13780-37210

Unavailable

3

SNAP PIN

13823-37200

Unavailable

4

HOSE, OUTLET

13881-37300

Unavailable

5

CLAMP This part replaces 09402-62206.

09402-62208

$6.58

6

CAP, TOOL BOX

13745-37300

Unavailable

7

SPACER (6.5X10X10) This part replaces 09180-06080.

09180-06310

$1.91

8

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

9

HOSE, DRAIN

13870-00080

Unavailable

10

CLIP

09401-14301

$2.35

11

HOSE, BREATHER

13852-37200

Unavailable

12

CLIP This part replaces 13828-37300.

09401-16401

$3.14

13

BOLT This part replaces 01107-06208.

01500-06207

$2.28

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78

16

BOLT This part replaces 01107-06208.

01500-06207

$2.28

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER This part replaces 09160-06007.

09160-06084

$1.78

19

CUSHION

09320-10014

$2.92

20

SPACER

09180-06082

$2.18

21

TOOL ASSY (CA) This part replaces 09800-00222.

09800-21021

Unavailable
