1988 Suzuki GN250 Right Handle Switch Diagram

← All diagrams

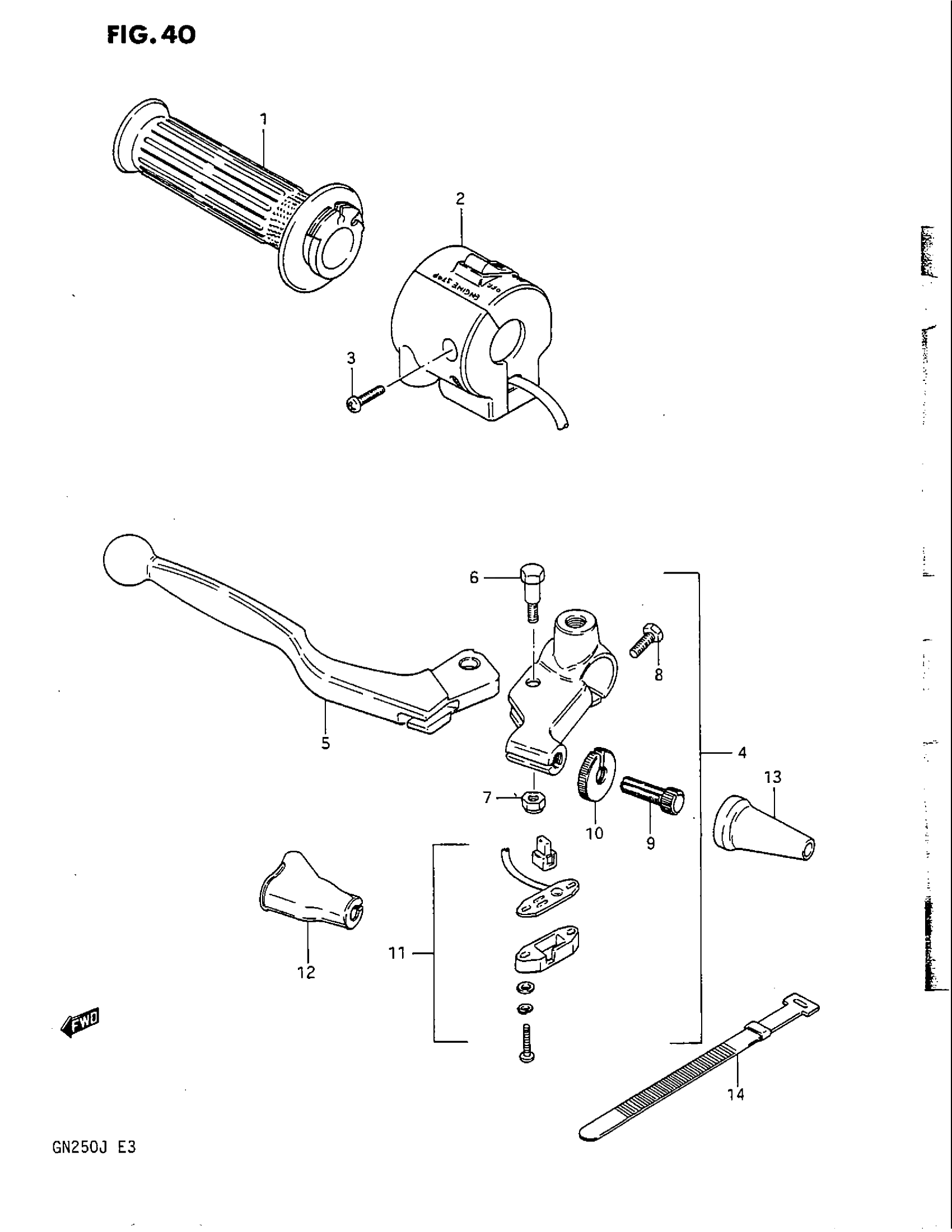

Find the part on the Right Handle Switch diagram for your 1988 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GN250 Right Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-45000

1
Out of stock

2

SWITCH ASSY, HANDLE RH | Includes Item(s) 3

37200-49471

1
Out of stock

3

SCREW This part replaces 37591-49210.

09125-05102

2
Out of stock

4

LEVER ASSY, BRAKE | Includes Item(s) 5 - 11

57300-11900

1
Out of stock

5

LEVER, BRAKE

57420-26400

1
Out of stock

6

BOLT This part replaces 57431-11011.

57431-11013

1
Out of stock

7

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

8

BOLT

57451-49100

1
Out of stock

9

ADJUSTER, CABLE

57441-44400

1
Out of stock

10

NUT This part replaces 57442-44400.

57442-11010

1
Out of stock

11

SWITCH ASSY, STOP

57460-10400

1
Out of stock

12

COVER, BRAKE LEVER

57341-28000

1
Out of stock

13

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

1
Out of stock

14

BAND

09407-12402

2
Out of stock
