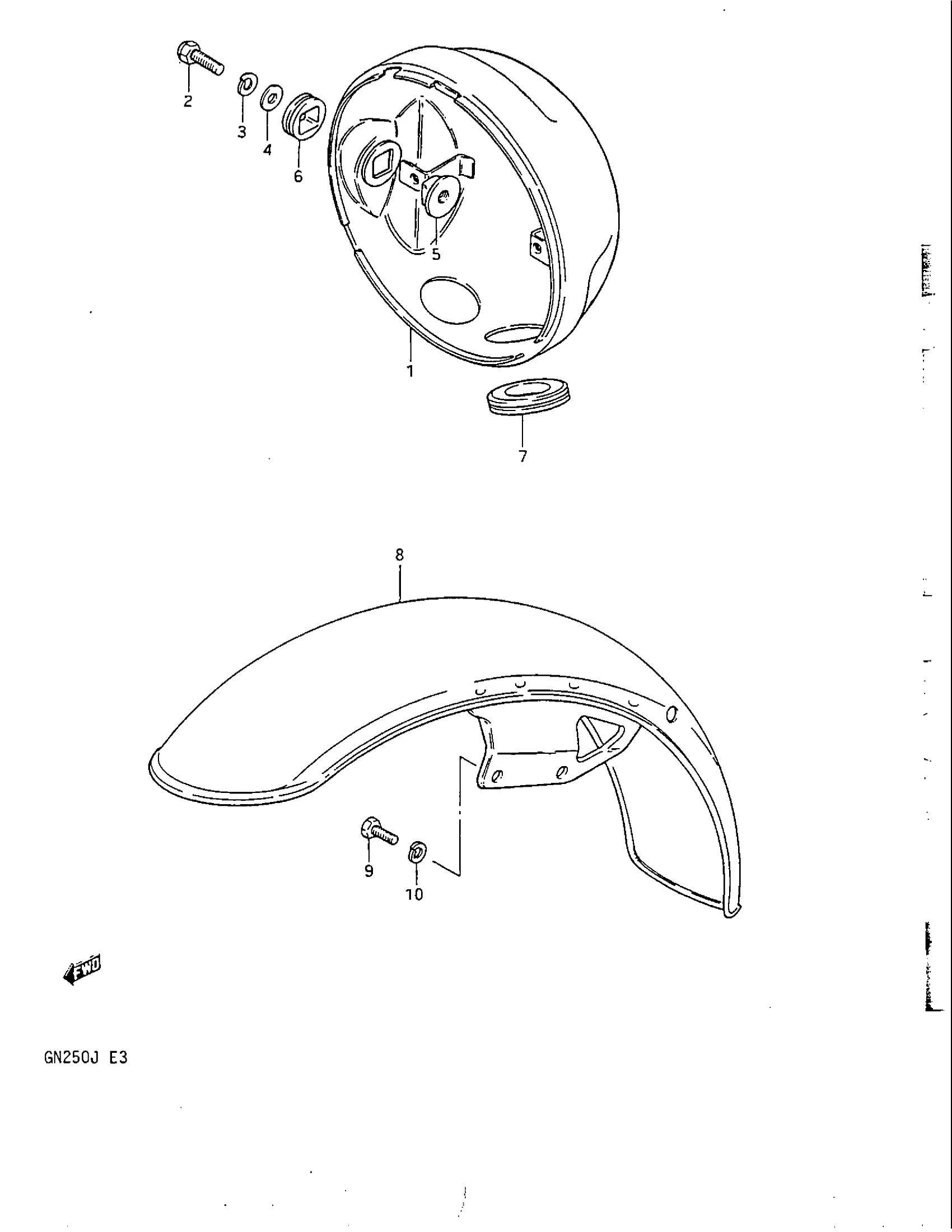

Suzuki GN250 (1988) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description

Price

1

HOUSING, HEADLAMP

51810-45300

Unavailable

2

BOLT

01204-08207

$2.50

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

4

WASHER This part replaces 08322-11088.

08322-01087

$1.86

5

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.85

6

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.45

7

GROMMET

51845-31031

$4.26

8

FENDER, FRONT

53110-38311

Unavailable

9

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83
