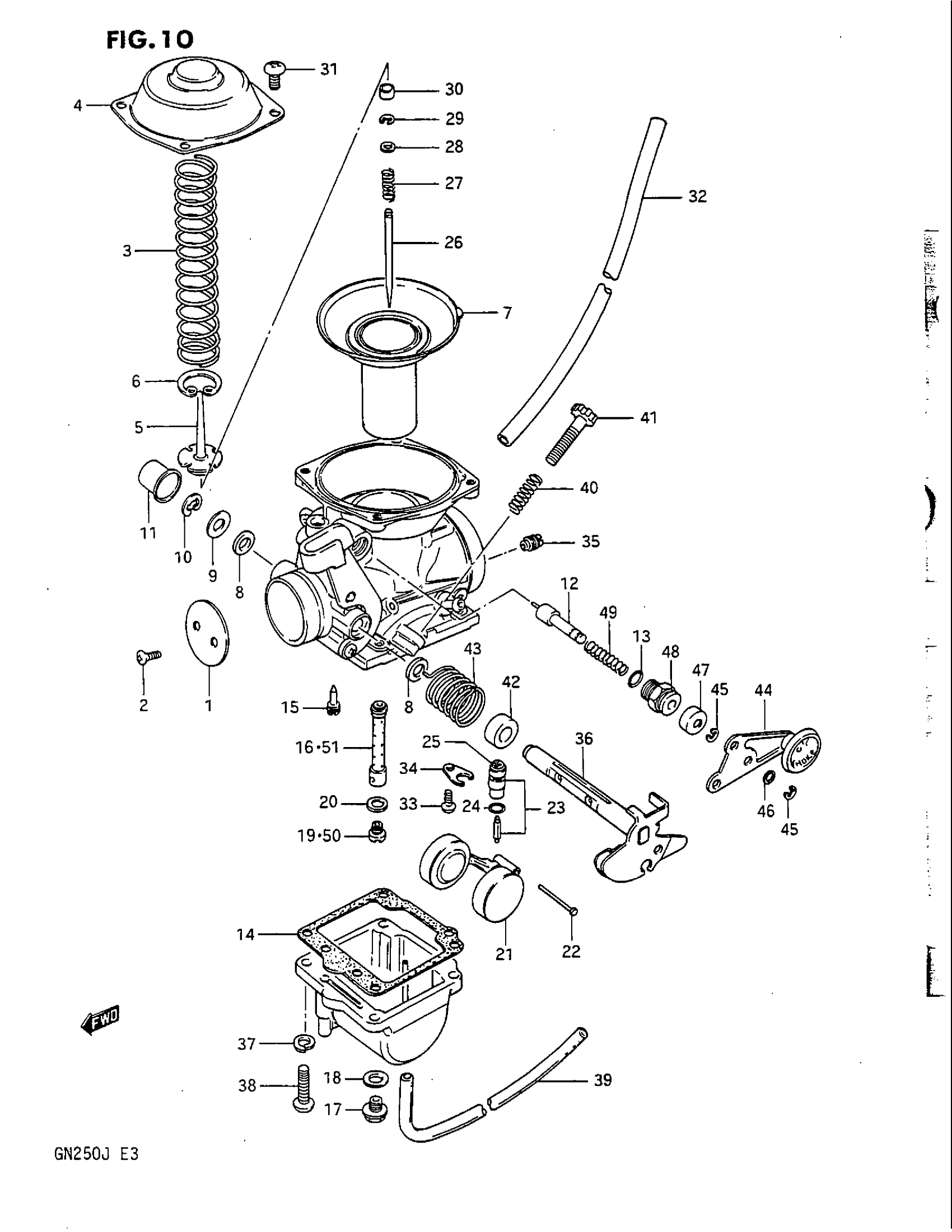

Suzuki GN250 (1988) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 49

13200-38300

Unavailable

1

THROTTLE VALVE (100)

13551-38300

Unavailable

2

SCREW

13604-44080

$2.80

3

SPRING

13503-37100

Unavailable

4

COVER

13502-38300

Unavailable

5

HOLDER, GUIDE

13389-44030

Unavailable

6

CLIP, SPRING

13581-44030

Unavailable

7

DIAPHRAGM ASSY

13500-38310

Unavailable

8

SEAL This part replaces 13651-51010.

13651-51011

$2.36

9

GASKET

13557-47070

$3.53

10

E RING

13617-44080

$2.80

11

CAP

13578-47070

$4.46

12

PLUNGER ASSY

13411-38300

Unavailable

13

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.98

14

.GASKET This part replaces 13251-37100.

13251-37101

$10.76

15

.JET, PILOT (#42.5)

09492-42010

$8.71

16

JET, NEEDLE (O-9)

09494-00362

Unavailable

17

SCREW, PLUG

13247-44080

$7.85

18

GASKET

13246-44080

$2.80

19

JET, MAIN (130)

09491-26011

$12.38

20

WASHER

13382-03110

$2.80

21

FLOAT ASSY

13250-37100

$40.32

22

PIN, FLOAT

13254-92311

$2.31

23

VALVE ASSY, NEEDLE This part replaces 13370-37400.

13370-24C80

$97.43

24

O RING This part replaces 66263-99050.

13374-35C00

$5.73

25

FILTER This part replaces 13376-65010.

13376-19F00

$9.84

26

NEEDLE, JET (5DF91)

13383-38300

Unavailable

27

SPRING

13388-44030

$9.17

28

WASHER

13382-44030

$3.66

29

E RING

13394-10010

$6.15

30

RING

13387-47010

$7.11

31

SCREW

02112-05107

$1.46

32

HOSE,5X10X600 This part replaces 13683-11420.

44421-13ER0

$9.48

33

SCREW This part replaces 02112-04068.

02112-0406B

$1.61

34

PLATE

13373-39110

$6.54

35

JET, PILOT AIR (150)

09493-30003

Unavailable

36

SHAFT ASSY

13550-38300

Unavailable

37

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

38

SCREW

02112-05167

$2.01

39

HOSE (3.5X6.5X600) This part replaces 13684-38300.

09351-35653-600

$4.32

40

SPRING This part replaces 13271-44220.

13268-37420

$6.00

41

ADJUSTER This part replaces 13267-37100.

13267-25D00

$16.03

42

RING

13574-45110

Unavailable

43

SPRING

13573-38300

Unavailable

44

STARTER LEVER ASSY

13413-38300

Unavailable

45

E RING

13415-38300

$1.95

46

WASHER

13427-38300

$2.17

47

.CAP, STARTER VALVE

13682-31210

$4.18

48

.HOLDER, GUIDE

13418-44080

$9.84

49

SPRING

13417-47070

Unavailable

50

JET, MAIN (127.5) | OPT

09491-25011

$12.38

51

JET, NEEDLE (O-8) | OPT

09494-00433

Unavailable
