1983 Suzuki GN125Z Starting Motor Diagram

← All diagrams

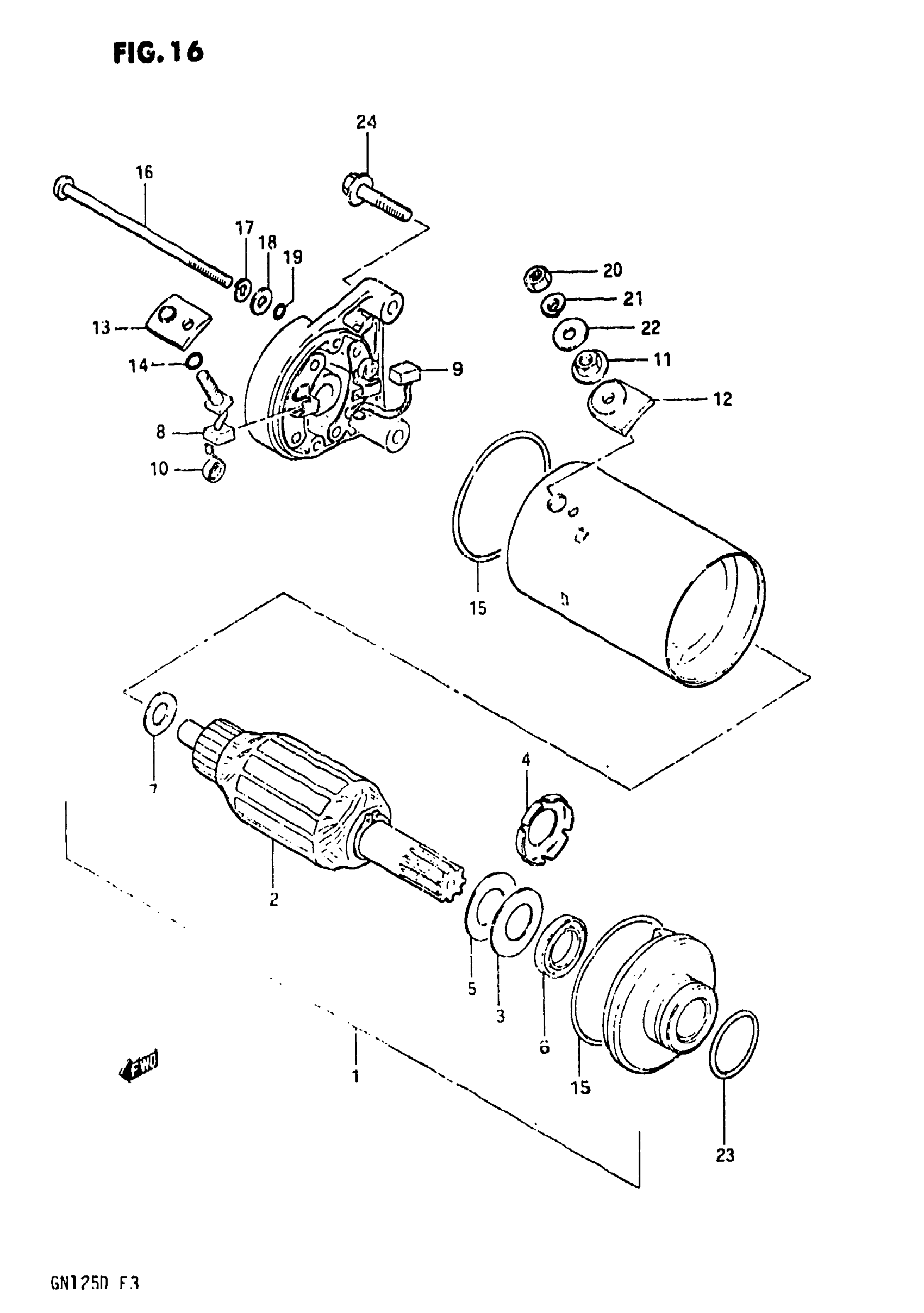

Find the part on the Starting Motor diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN125Z Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STAR | Includes Item(s) 2 - 19 This part replaces 31100-05300.

31100-05510

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 31311-10200.

31311-10201-H17

1
Out of stock

3

SHIM (A)

31361-10200

1
Out of stock

4

SHIM (A)

31361-01400

1
Out of stock

5

SHIM (C)

31361-38300

1
Out of stock

6

OIL SEAL This part replaces 31153-45010.

31153-43400

1
Out of stock

7

.SHIM SET This part replaces 31361-47010.

31170-43400

1
Out of stock

8

BRUSH (+)

31130-05300

1
Out of stock

9

BRUSH (-)

31131-10200

1
Out of stock

10

SPRING, BRUSH

31135-65010

2
Out of stock

11

.NUT This part replaces 08310-22068.

08310-00067

1
Out of stock

12

BUSHING (A)

31172-05300

1
Out of stock

13

BUSHING (B)

31171-05300

1
Out of stock

14

O RING

31143-38300

1
Out of stock

15

O RING This part replaces 31264-05300.

31264-32C10

2
Out of stock

16

BOLT This part replaces 31281-05300.

31281-88C00

2
Out of stock

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

18

WASHER

31161-38300

2
Out of stock

19

O RING

31156-38300

2
Out of stock

20

.NUT This part replaces 08310-22068.

08310-00067

1
Out of stock

21

1

$2.28

In stock

22

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

1
Out of stock

23

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

1
Out of stock

24

BOLT This part replaces 01547-06308.

01547-06307

2
Out of stock
