1983 Suzuki GN125Z Rear Wheel Diagram

← All diagrams

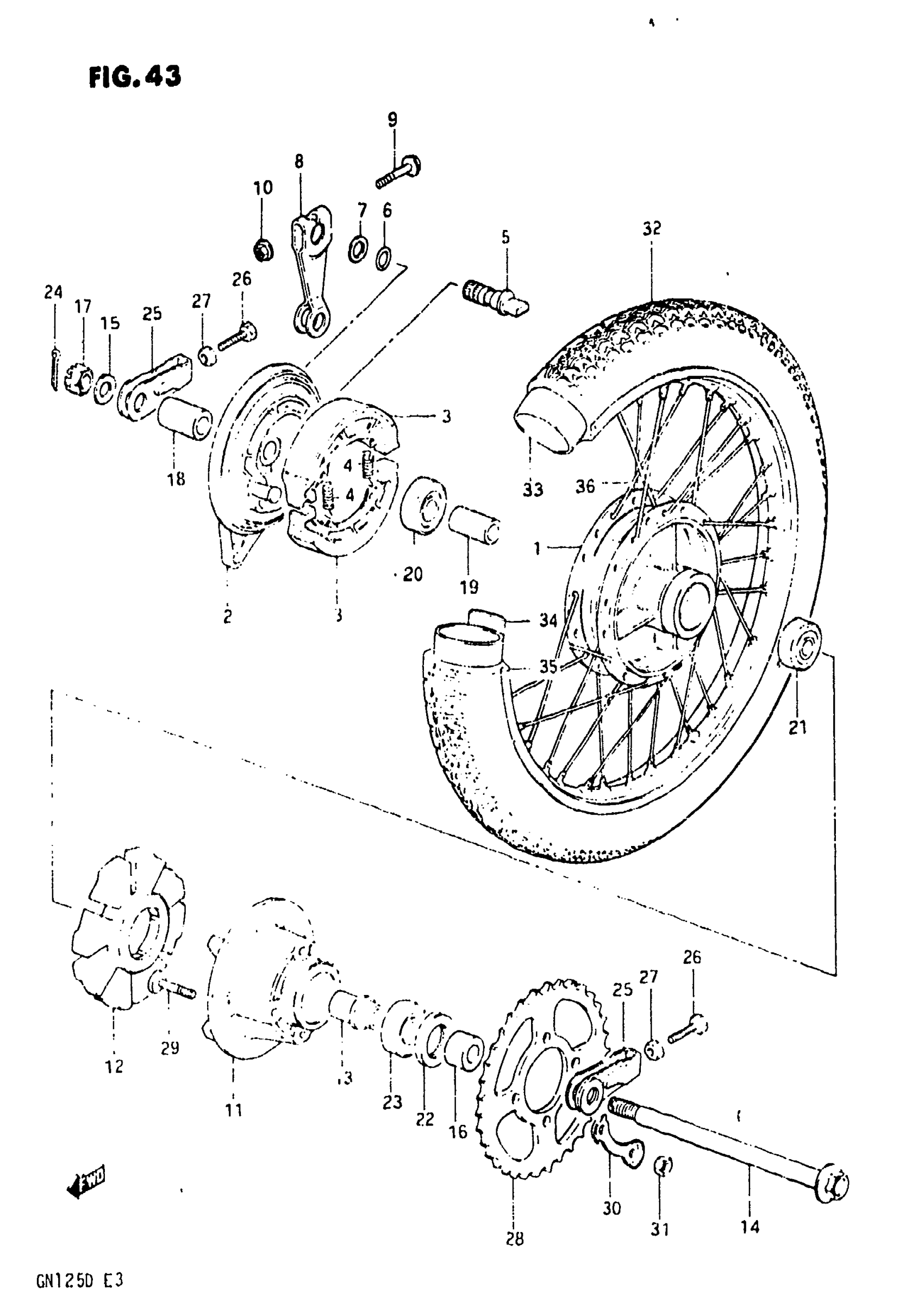

Find the part on the Rear Wheel diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN125Z Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, WHEEL This part replaces 64110-07603.

64110-07604

1
Out of stock

2

PANEL, REAR BRAKE ANCHOR | MODEL Z This part replaces 64210-39101.

64210-39104

1
Out of stock

2

PANEL, REAR BRAKE ANCHOR | MODEL D This part replaces 64210-39102.

64210-39104

1
Out of stock

3

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

2
Out of stock

4

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

5

CAM, BRAKE This part replaces 54441-29303.

54441-29305

1
Out of stock

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

1
Out of stock

7

WASHER This part replaces 09160-14001.

09160-14055

1
Out of stock

8

LEVER, BRAKE CAM

64451-48000

1
Out of stock

9

BOLT This part replaces 01517-06358.

01550-06357

1
Out of stock

10

NUT This part replaces 08316-16068.

08319-31067

1
Out of stock

11

DRUM, MOUNTING This part replaces 64610-05300.

64610-05301

1
Out of stock

12

SHOCK ABSORBER, HUB

64651-07001

1
Out of stock

13

RETAINER, MOUNTING

64733-05301

1
Out of stock

14

AXLE, REAR This part replaces 64711-05300.

64711-48001

1
Out of stock

15

WASHER This part replaces 08322-11148.

08322-01147

1
Out of stock

16

SPACER, LH (15X28X19)

09180-15042

1
Out of stock

17

NUT

09141-14001

1
Out of stock

18

SPACER, RH (15.2x23.33)

09180-15002

1
Out of stock

19

SPACER, HUB BEARING

09180-15011

1
Out of stock

20

BEARING, RH

08144-63027

1

$25.48

In stock

21

BEARING, LH

08143-62027

1
Out of stock

22

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

1
Out of stock

23

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

1
Out of stock

24

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

25

ADJUSTER, CHAIN

61410-36002

2
Out of stock

26

BOLT (8X50) This part replaces 09104-08006.

09104-08034

2
Out of stock

27

2

$1.93

In stock

28

SPROCKET, REAR (NT:42) This part replaces 64511-39300.

64511-12B02

1
Out of stock

29

BOLT

09119-08043

4
Out of stock

30

WASHER

09169-08012

2
Out of stock

31

4

$1.93

In stock

32

TIRE, REAR 3.50-16 (IRC) | IRC This part replaces 65100-05310.

65100-05320

1
Out of stock

33

TUBE, INNER

65200-26700

1
Out of stock

34

PROTECTOR This part replaces 55261-08010.

65261-37300

1
Out of stock

35

RIM, WHEEL (185-16)

65311-05300

1
Out of stock

36

SPOKE ASSY RR W This part replaces 65320-05300.

65320-38301

1
Out of stock
