1983 Suzuki GN125Z Rear Brake Diagram

← All diagrams

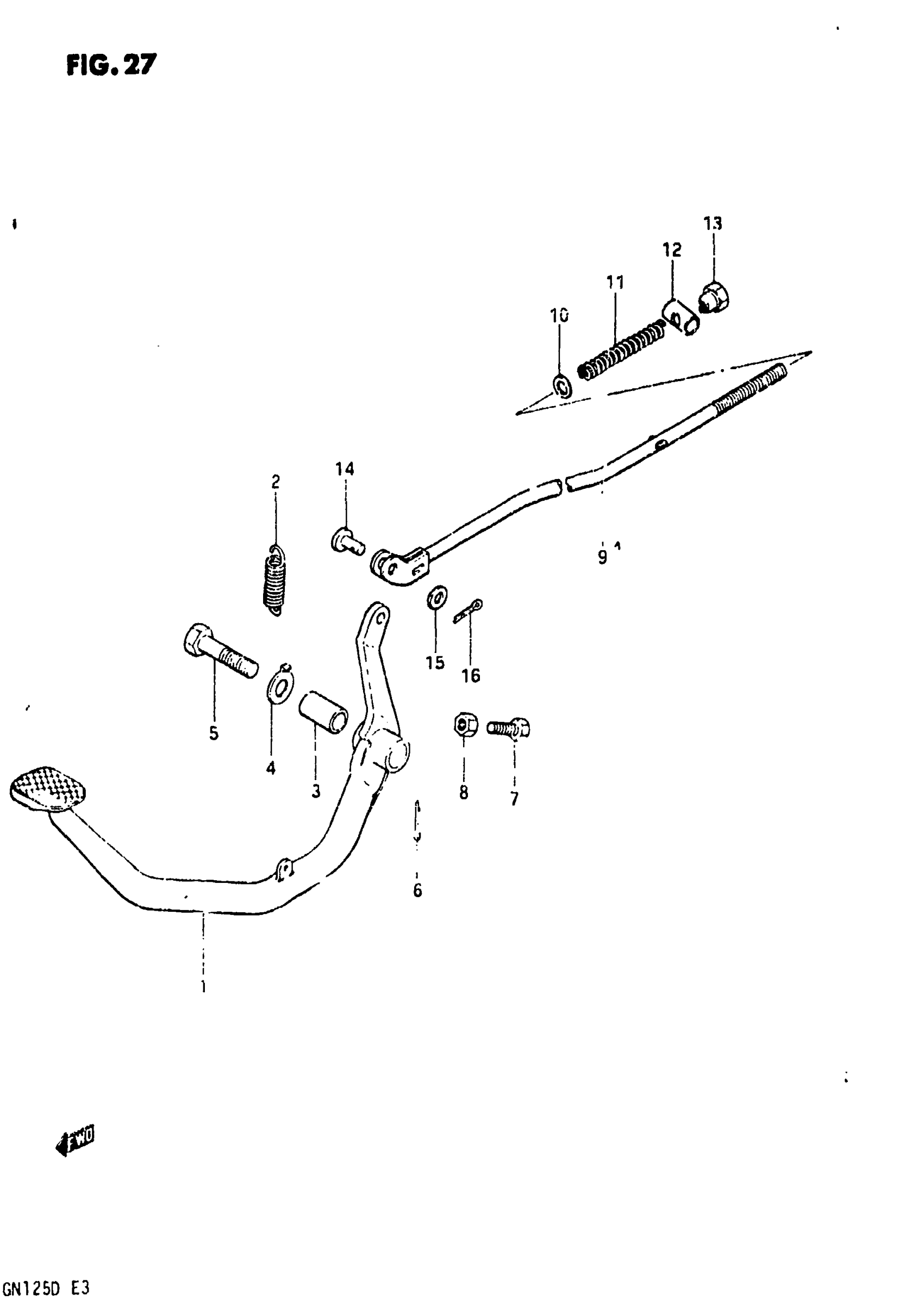

Find the part on the Rear Brake diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN125Z Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$56.38

In stock

2

SPRING

09443-14015

1

$2.92

In stock

3

SPACER | MODEL Z This part replaces 43231-05301.

43231-05302

1
Out of stock

3

SPACER | MODEL D

43231-05302

1
Out of stock

4

WASHER | MODEL Z This part replaces 43232-05300.

08322-01107

1
Out of stock

4

WASHER | MODEL D This part replaces 08322-11108.

08322-01107

1
Out of stock

5

BOLT

09101-10020

1
Out of stock

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

7

BOLT

09128-06028

1

$2.17

In stock

8

1

$1.82

In stock

10

1

$1.84

In stock

11

SPRING

09440-09004

1
Out of stock

12

PIN

09209-11002

1
Out of stock

13

.NUT | MODEL Z This part replaces 09150-06001.

09150-06010

1
Out of stock

13

.NUT | MODEL D This part replaces 09150-06009.

09150-06010

1
Out of stock

14

PIN

09200-06013

1

$2.38

In stock

15

1

$1.84

In stock

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
