1983 Suzuki GN125Z Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

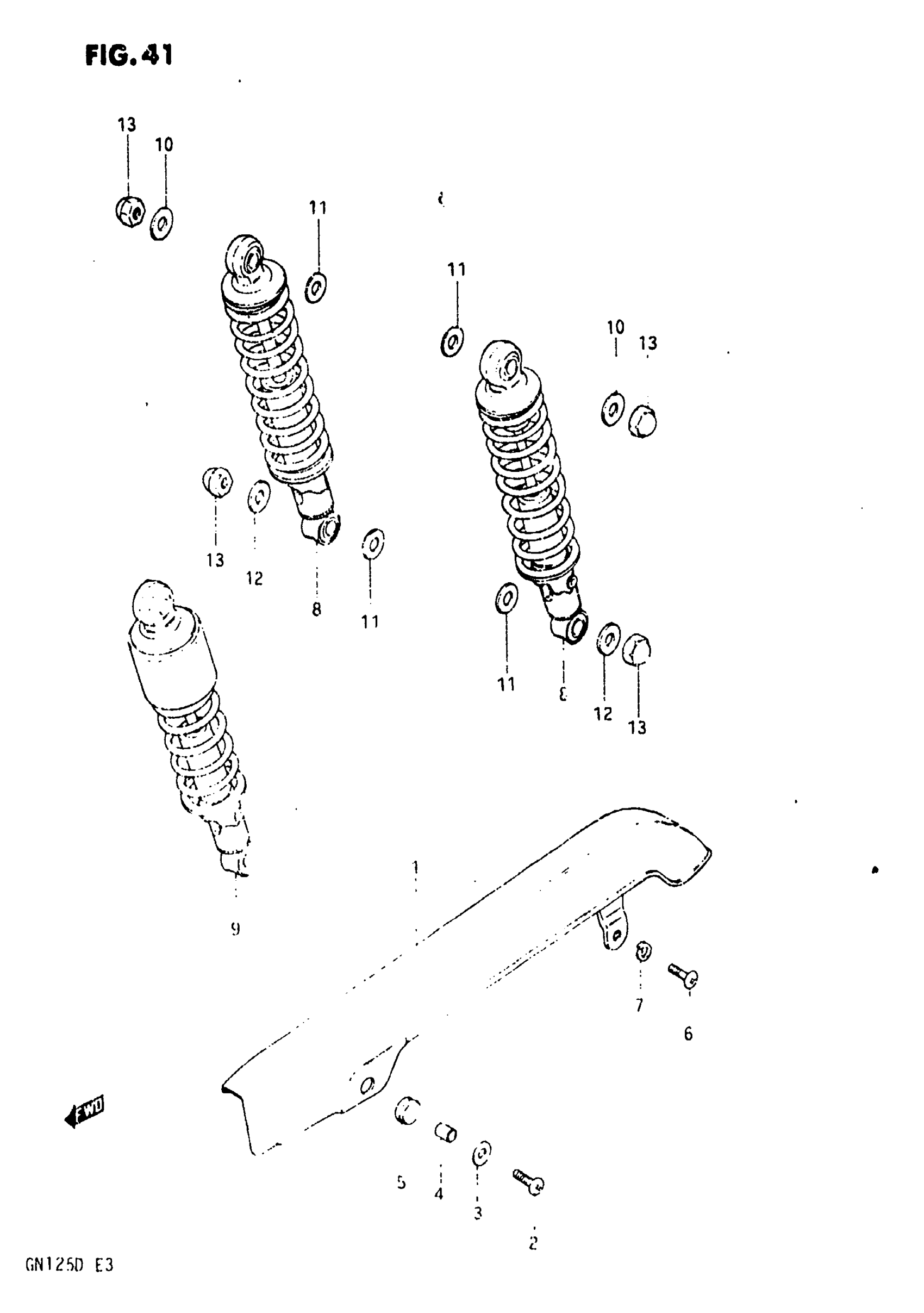

1983 Suzuki GN125Z Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE

61310-05301

1
Out of stock

2

SCREW This part replaces 02112-06168.

02112-06167

1
Out of stock

3

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

1
Out of stock

4

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

1
Out of stock

5

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

1
Out of stock

6

SCREW This part replaces 02112-06168.

02112-06167

1
Out of stock

7

1

$2.28

In stock

8

SHOCK ABSORBER, REAR | MODEL Z

62100-05300

2
Out of stock

9

SHOCK ABSORBER, REAR | MODEL D

62100-05330

2
Out of stock

10

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

2
Out of stock

11

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

4
Out of stock

12

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

2
Out of stock

13

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock
