1997 Suzuki GN125EV Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1997 Suzuki GN125EV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

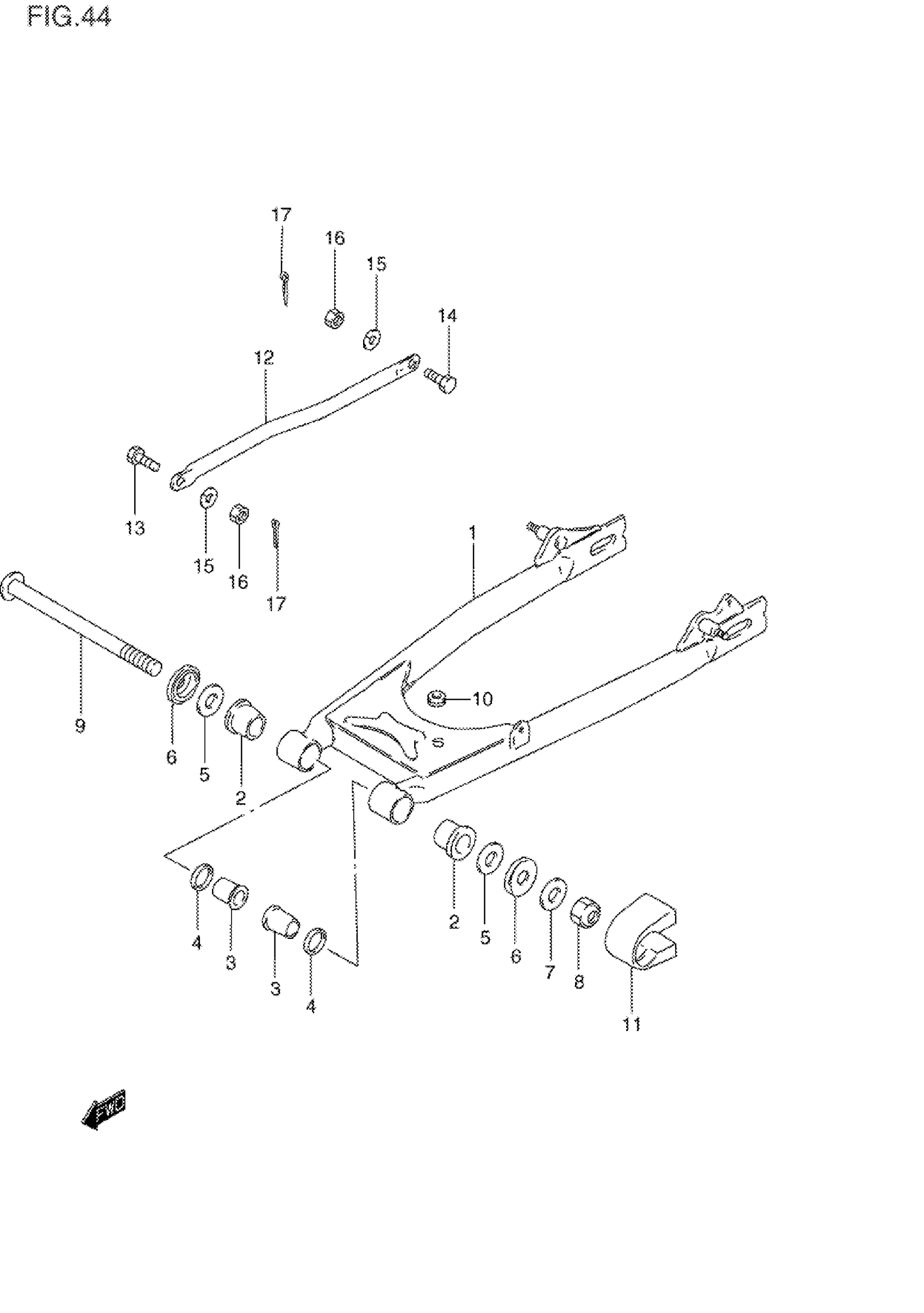

1997 Suzuki GN125EV Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2

61000-05300-019

1
Out of stock

2

BUSH

61261-05301

2
Out of stock

3

SPACER, PIVOT

61251-05300

2
Out of stock

4

OIL SEAL

09286-20001

2
Out of stock

5

WASHER

08211-14341

2
Out of stock

6

COVER, PIVOT

61262-45002

2
Out of stock

7

WASHER This part replaces 08322-01143.

08322-0114A

1
Out of stock

8

NUT This part replaces 08319-21148.

08319-2114A

1
Out of stock

9

SHAFT, PIVOT

61211-05302

1
Out of stock

10

CUSHION

09320-08020

1
Out of stock

11

BUFFER, CHAIN TOUCH DEFENSE

61273-05300

1
Out of stock

12

TORQUE LINK, REAR (BLACK)

64310-05300-019

1
Out of stock

13

BOLT, FRONT (8X22.5)

09111-08012

1
Out of stock

14

BOLT, REAR (8X26.5)

09111-08013

1
Out of stock

15

LOCK WASHER

09162-08008

2
Out of stock

16

NUT

09140-08008

2
Out of stock

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock
