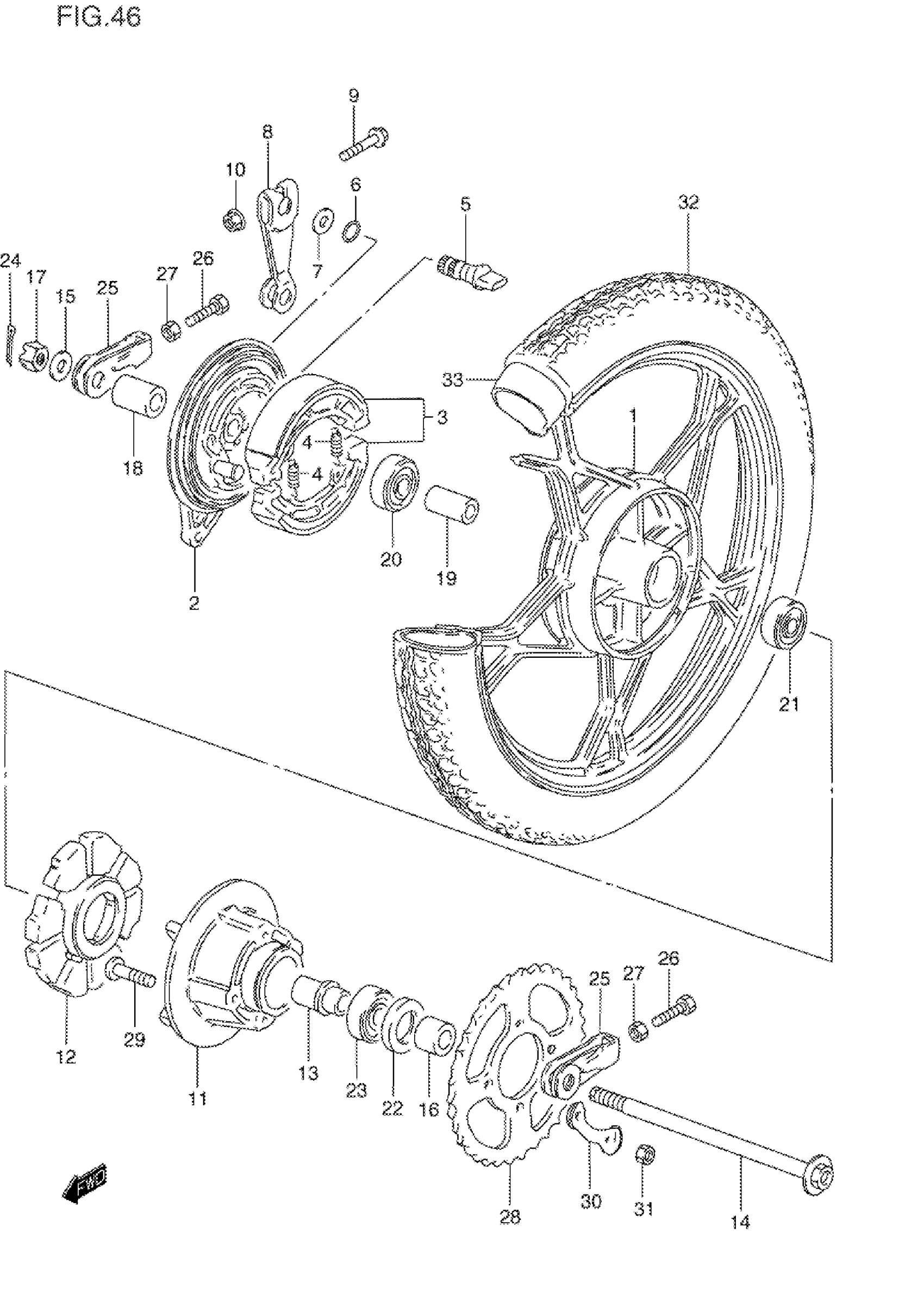

Suzuki GN125EV (1997) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (2.15X16)(BLACK)

64150-38300-291

Unavailable

2

PANEL, REAR BRAKE ANCHOR

64210-39104

Unavailable

3

SHOE SET, BRAKE

54400-07870

$48.67

4

SPRING This part replaces 09443-07001.

09443-07025

$1.68

5

CAME, BRAKE

54441-29305

$22.58

6

O RING (D:2.5,ID:13.8)

09280-14011

$4.44

7

WASHER (14.5X22X1.6)

09160-14055

$2.49

8

LEVER, REAR BRAKE CAME

64451-48000

$29.95

9

BOLT This part replaces 01550-06353.

01550-0635A

$2.38

10

NUT This part replaces 08316-10063.

08316-1006B

$2.57

11

DRUM, MOUNTING

64610-05301

Unavailable

12

SHOCK ABSORBER, REAR HUB

64651-38300

$27.32

13

RETAINER, DRUM

64733-05301

Unavailable

14

AXLE, REAR

64711-48001

$57.45

15

WASHER This part replaces 08322-01143.

08322-0114A

$1.89

16

SPACER, LH (15X28X19)

09180-15042

Unavailable

17

NUT

09141-14001

$5.00

18

SPACER, RH (15.2X23X33)

09180-15002

$9.08

19

SPACER (15.3X21.7X63)

09180-15011

$8.90

20

BEARING, RH

08144-63027

$25.48

21

BEARING, LH

08143-62027

$14.88

22

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.60

23

BEARING (20X47X14)

09262-20069

$21.64

24

PIN This part replaces 04111-30308.

04111-3030A

$1.41

25

ADJUSTER, CHAIN

61410-36002

$14.73

26

BOLT (8X50)

09104-08034

$2.82

27

NUT

08310-00087

$1.91

28

SPROCKET, REAR (NT:42)

64511-12B02

$64.68

29

BOLT

09119-08043

Unavailable

30

WASHER

09169-08012

$2.77

31

NUT This part replaces 08310-00083.

08310-0008A

$1.94

32

TIRE, REAR 3.50-16 (IRC)

65100-05320

Unavailable

33

TUBE ASSY, INNER

65200-26700

Unavailable
