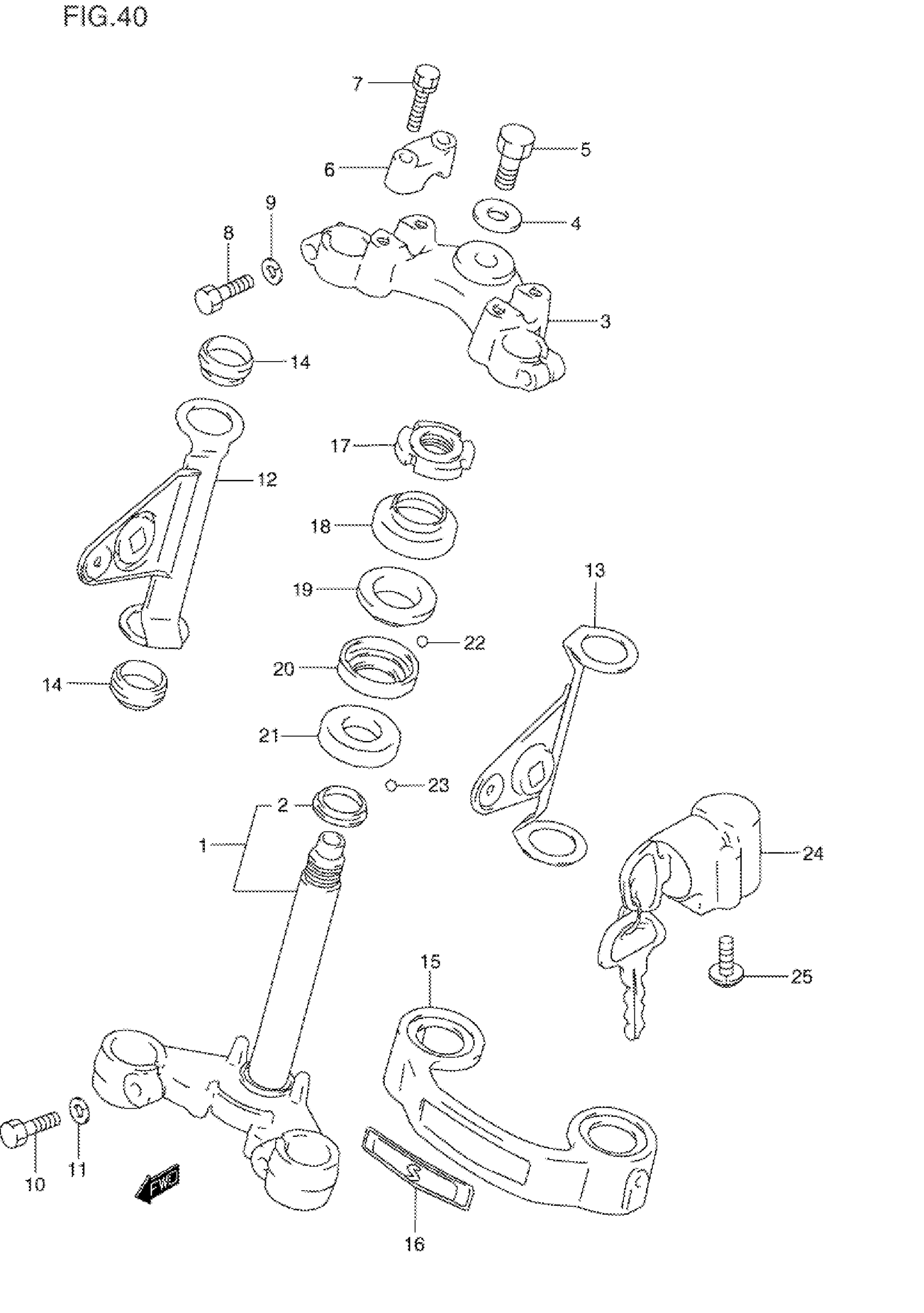

Suzuki GN125EV (1997) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-11311

Unavailable

2

RACE, OUTER

51621-33001

$18.33

3

HEAD, STEERING STEM (BLACK)

51311-11300-291

Unavailable

4

WASHER

51356-22012

$7.67

5

BOLT

51351-29400

$35.23

6

HOLDER, HANDLE (BLACK)

56211-29320-291

$15.27

7

BOLT

01254-08357

Unavailable

8

BOLT

01500-10407

$3.37

9

LOCK WASHER

08321-01107

$1.89

10

BOLT

51451-28012

Unavailable

11

LOCK WASHER

08321-01127

$2.14

12

BRACKET, HEADLAMP RH

51530-05300

Unavailable

13

BRACKET, HEADLAMP LH

51540-05300

Unavailable

14

CUSHION,HEADLAM This part replaces 51553-11300.

51553-11301

$4.63

15

COVER, STEERING STEM

51871-05301

Unavailable

16

EMBLEM, COVER

68211-38300

Unavailable

17

NUT, STEERING STEM

51631-28000

$19.60

18

DUST SEAL,STEERING UPPER

51643-25001

$4.36

19

RACE,STEERING OUTER UPPER

51621-28000

$13.50

20

RACE,STEERING INNER UPPER

51611-20002

$13.50

21

RACE, INNER LOWER

51611-33002

$13.59

22

STEEL BALL, UPPER

06111-06003

$1.28

23

STEEL BALL, LOWER

06111-08003

$1.35

24

LOCK ASSY, STEERING

51910-25311

$45.52

25

SCREW This part replaces 02112-35123.

02112-3512A

$2.43
