1993 Suzuki GN125E Cylinder Head Diagram

← All diagrams

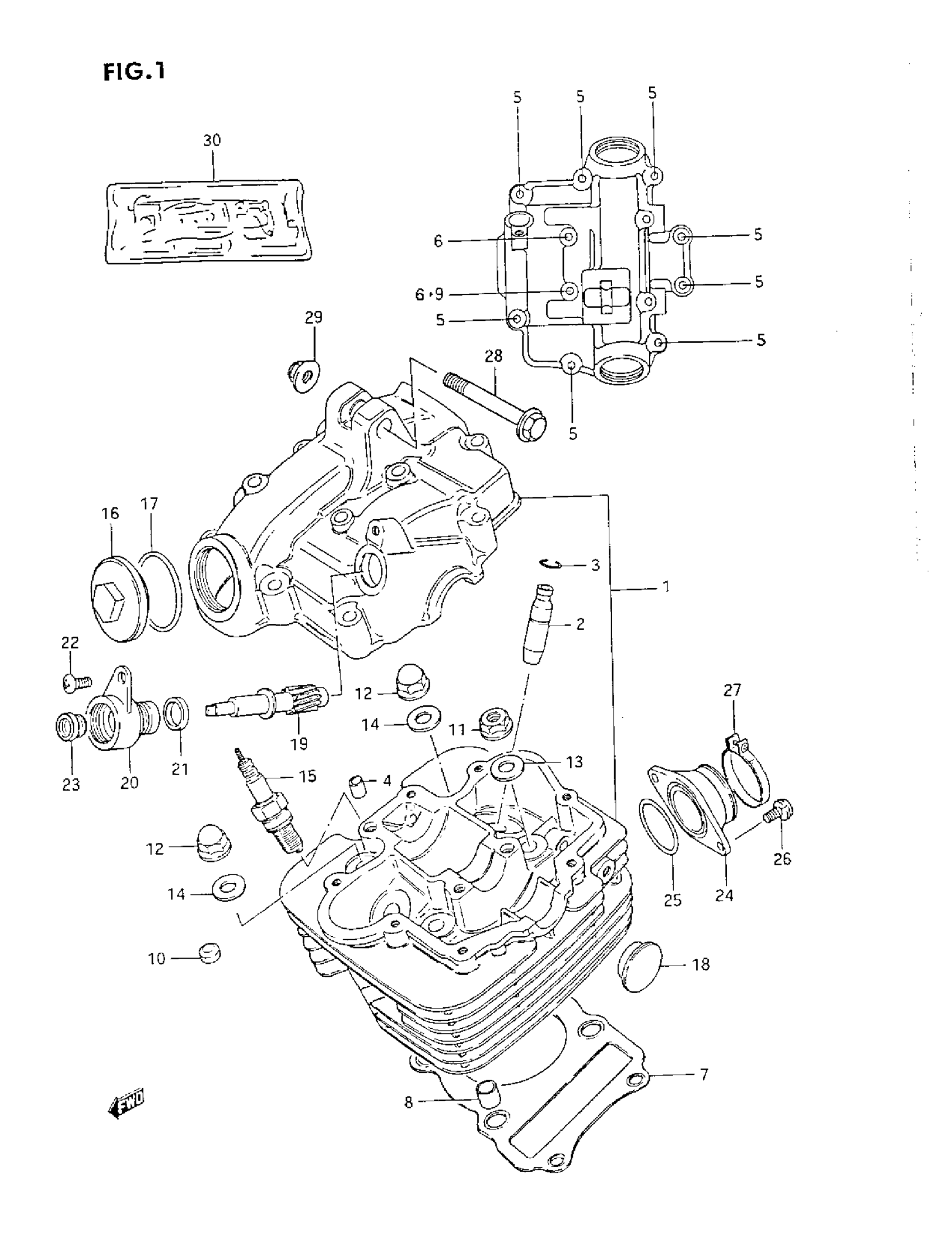

Find the part on the Cylinder Head diagram for your 1993 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GN125E Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-05263

1
Out of stock

2

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

3

.RING (10X85)

09381-10004

2
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT (6X35)

01550-06357

8
Out of stock

6

BOLT (6X60)

01550-06607

2
Out of stock

7

GASKET, CYLINDER HEAD This part replaces 11141-05201.

11141-05202

1
Out of stock

8

PIN, CYLINDER HEAD

04211-11169

2
Out of stock

9

WASHER

09168-06023

1
Out of stock

10

PAD, RUBBER

11151-45000

6
Out of stock

11

NUT

08316-10087

1
Out of stock

12

NUT

09159-08074

3
Out of stock

13

WASHER

09160-08039

2
Out of stock

14

GASKET | ~E.NO.137509 This part replaces 09168-08012.

09168-08013

2
Out of stock

14

GASKET (8.5X17X2.3) | E.NO.137510~

09168-08021

2
Out of stock

15

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

1
Out of stock

15

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

1
Out of stock

16

CAP INSPECTION | MODEL M/N This part replaces 11175-37111.

11175-18920

2
Out of stock

16

CAP INSPECTION | MODEL P/R This part replaces 11175-18900.

11175-18920

2
Out of stock

17

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

18

PLUG, HEAD

09241-22002

1
Out of stock

19

NO DESCRIPTION AVAILABLE This part replaces 26431-05201.

26431-05210

1
Out of stock

20

SLEEVE

26441-49000

1
Out of stock

21

SEAL BAND

26451-45000

1
Out of stock

22

SCREW

09128-05101

1
Out of stock

23

OIL SEAL

09289-05002

1
Out of stock

24

PIPE, INTAKE This part replaces 13110-05300.

13101-05300

1
Out of stock

25

O-RING

09280-32006

1
Out of stock

26

SCREW | MODEL M/N/P This part replaces 02112-36165.

02112-3616A

2
Out of stock

26

SCREW | MODEL R This part replaces 02112-36163.

02112-3616A

2
Out of stock

27

CLAMP

09402-44208

1
Out of stock

28

BOLT (8X50)

09103-08081

1
Out of stock

29

NUT

08319-31087

1
Out of stock

30

GASKET SET | MODEL M This part replaces 11401-05860.

11401-05864

1
Out of stock

30

GASKET SET | MODEL N/P/R SPAPK PLUG GAP: 024-.028"/.6-, 7MM This part replaces 11401-05861.

11401-05864

1
Out of stock
