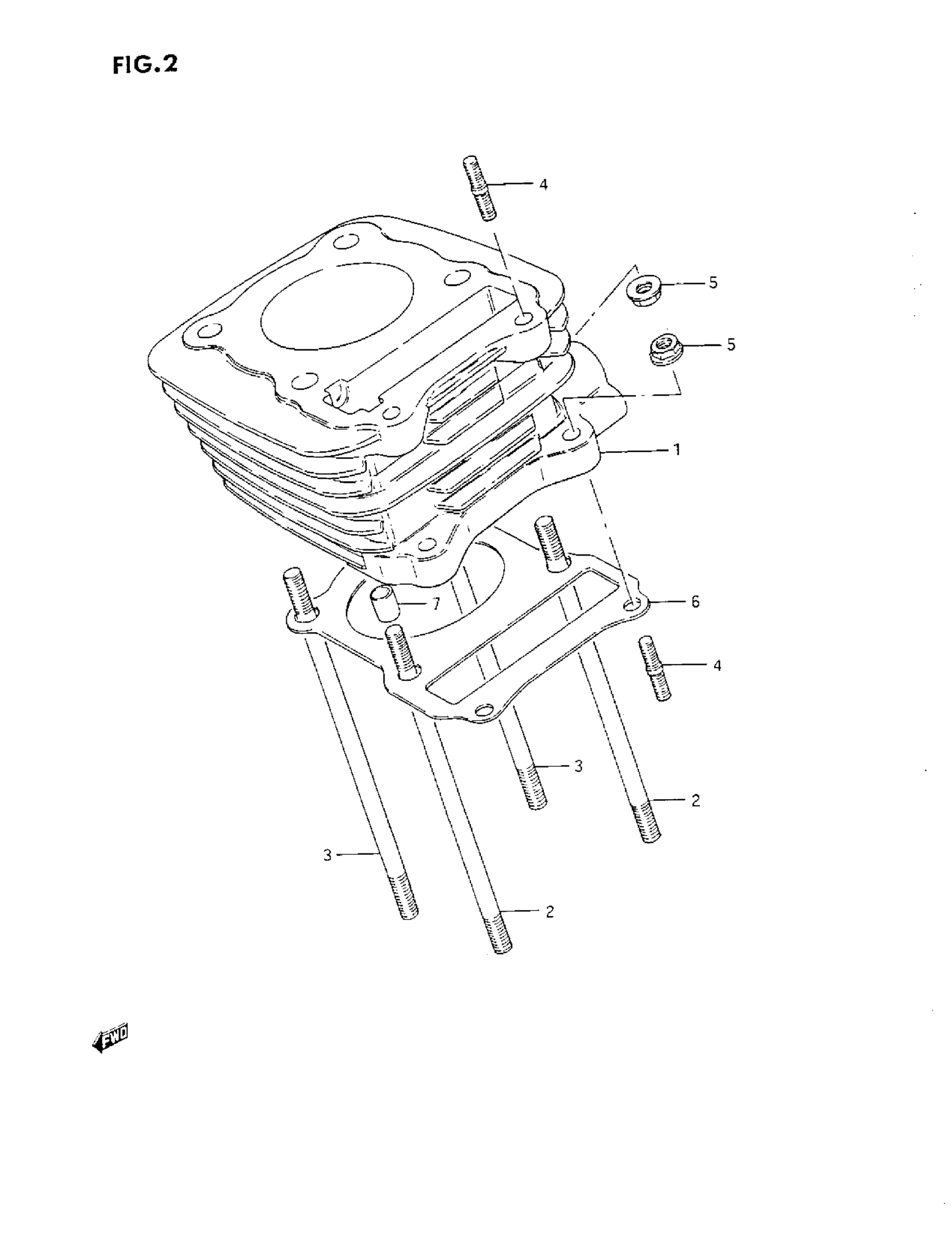

Suzuki GN125E (1993) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL M/N/P This part replaces 11210-05201.

11210-05203-0F0

$437.07

1

CYLINDER | MODEL R This part replaces 11210-05202.

11210-05203-0F0

$437.07

2

STUD BOLT (L:150)

09108-08062

$7.57

3

STUD BOLT (L:155)

09108-08089

$7.10

4

STUD BOLT (L:25) This part replaces 01421-06258.

01421-06257

$2.80

5

NUT | MODEL M/N/P This part replaces 09159-06017.

08319-31067

$2.01

5

NUT | MODEL R

08316-10067

$2.27

6

.GASKET, CYLINDER | MODEL M This part replaces 11241-05200.

11241-05311

$5.29

6

.GASKET, CYLINDER | MODEL N/P/R This part replaces 11241-05310.

11241-05311

$5.29

7

PIN (L:14)

04211-11149

$1.77
