1970 Yamaha G6S (G6S) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1970 Yamaha G6S (G6S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

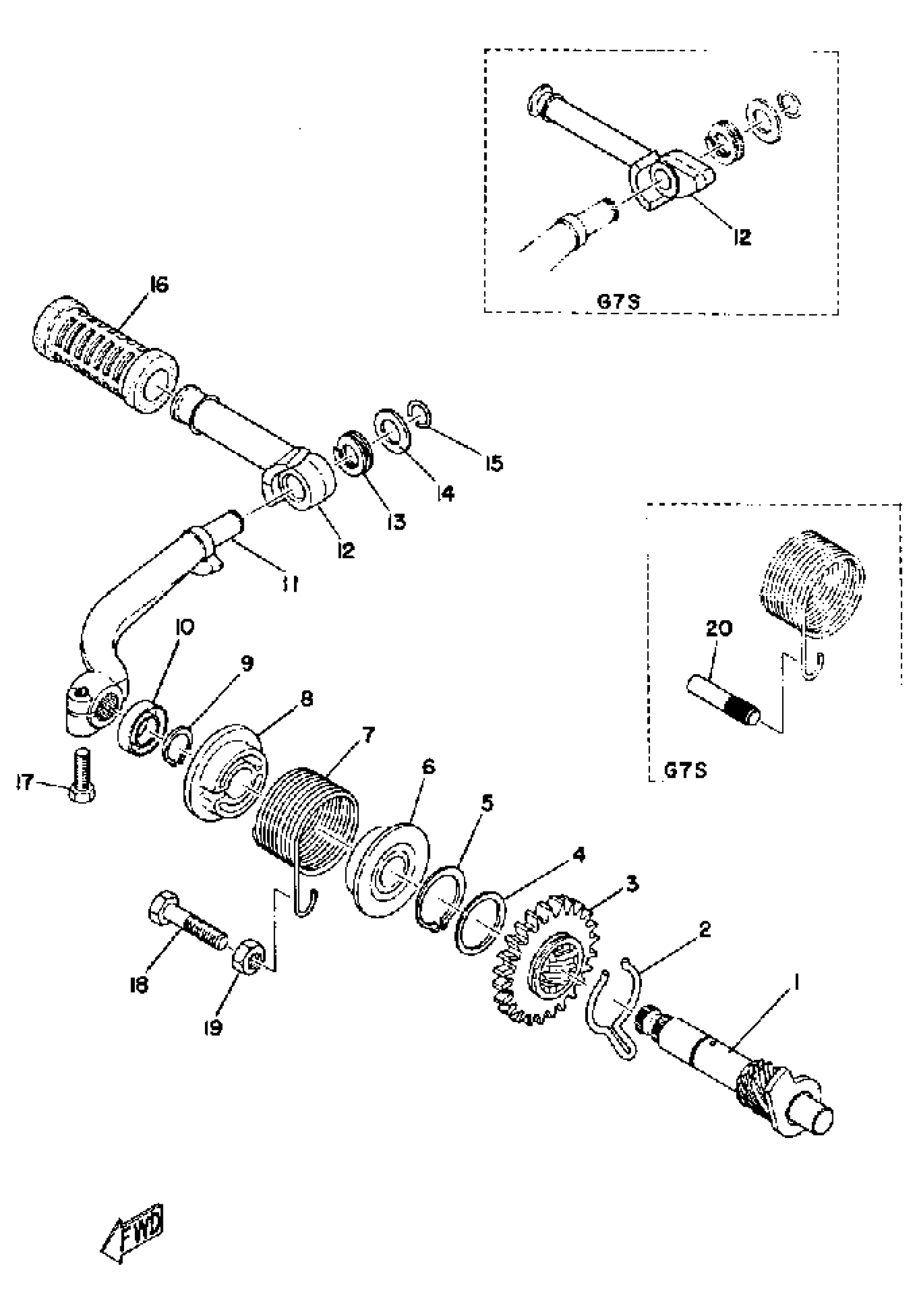

1970 Yamaha G6S (G6S) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

180-15660-01-00

1
Out of stock

1

KICK CRANK ASSY

357-15620-02-00

—

$61.34

In stock

1

KICK CRANK ASSY

357-15620-02-00

—

$61.34

In stock

2

CLIP 315156870000

90468-26048-00

1
Out of stock

3

GEAR, KICK

180-15641-00-00

1
Out of stock

4

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

5

CIRCLIP (256)

93410-25017-00

1
Out of stock

6

GUIDE, KICK SPRING

132-15664-01-00

1
Out of stock

7

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

8

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

9

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

10

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

12

LEVER,KICK

205-15612-01-00

1
Out of stock

13

SPRING, COMPRESSION (5L1)

90504-18031-00

1

$7.66

In stock

14

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

15

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

16

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock

17

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

18

BOLT

(90101-08256-00)

1
Out of stock

19

NUT(6L2)

95333-08600-00

—

$3.20

In stock

20

STOPPER, KICK SPRING

257-15668-00-00

1
Out of stock
