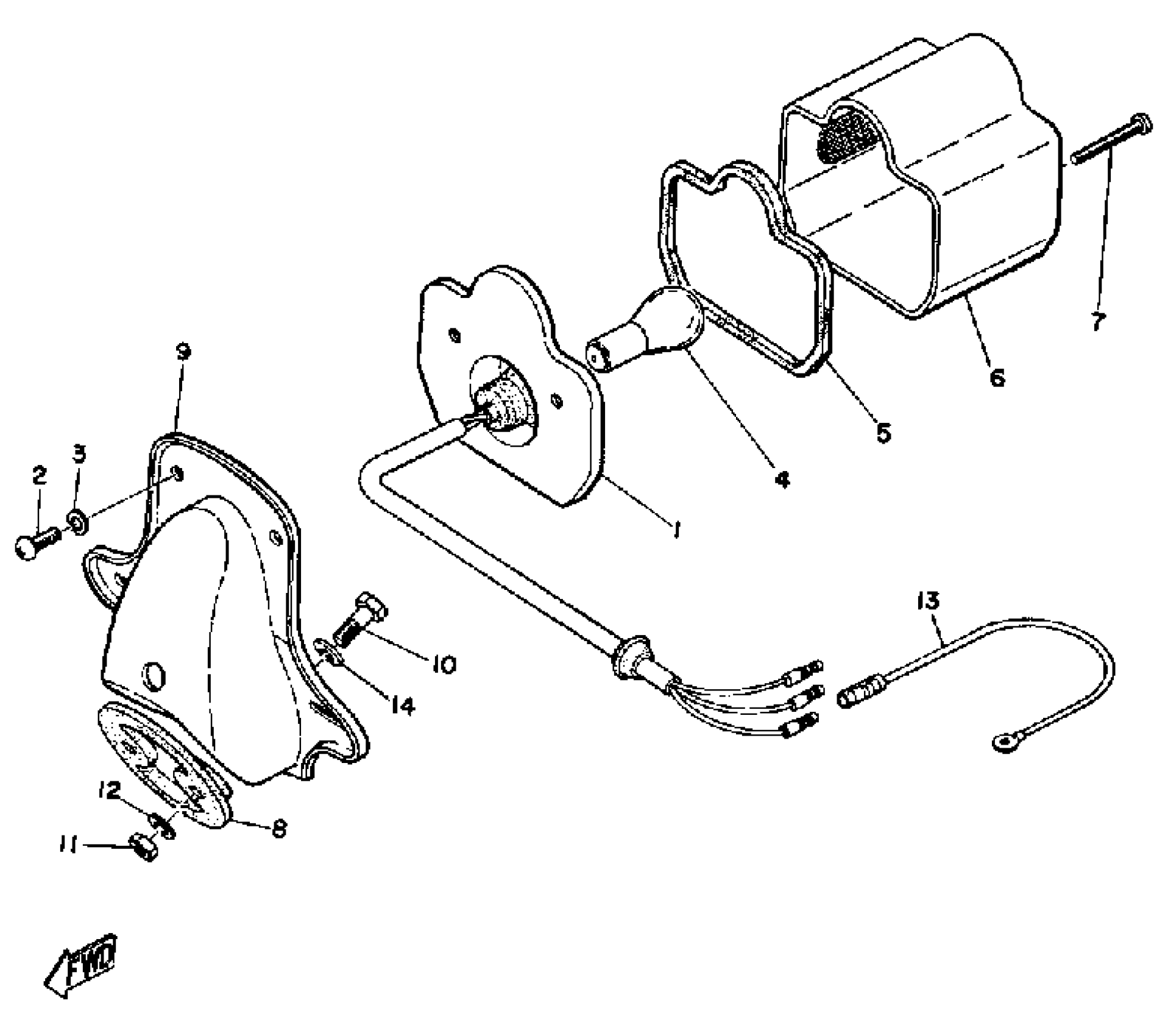

Yamaha G6S (G6S) 1970 TAIL LAMP (G6S) Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

(206-84510-61-00)

Unavailable

1

BASE, TAILLIGHT

(206-84511-61-00)

Unavailable

2

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

3

WASHER, SPRING

92995-06100-00

$2.95

4

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

5

SEAT, BASE

(168-84712-60-00)

Unavailable

6

. LENS, TAILLIGHT

(168-84721-60-00)

Unavailable

7

. SCREW, RIM ADJUSTING

3AA-84331-00-00

Unavailable

8

DAMPER

(174-84753-00-00)

Unavailable

9

BRACKET, LICENSE

(164-84751-60-35)

Unavailable

10

BOLT 168217380000

90109-06017-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

$4.11

12

WASHER, SPRING

92995-06100-00

$2.95

13

WIRE, EARTH LEAD

(164-84756-60-00)

Unavailable

14

WASHER, PLATE (5J0)

90201-085E6-00

$5.77
