1974 Kawasaki G3SS-D Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1974 Kawasaki G3SS-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

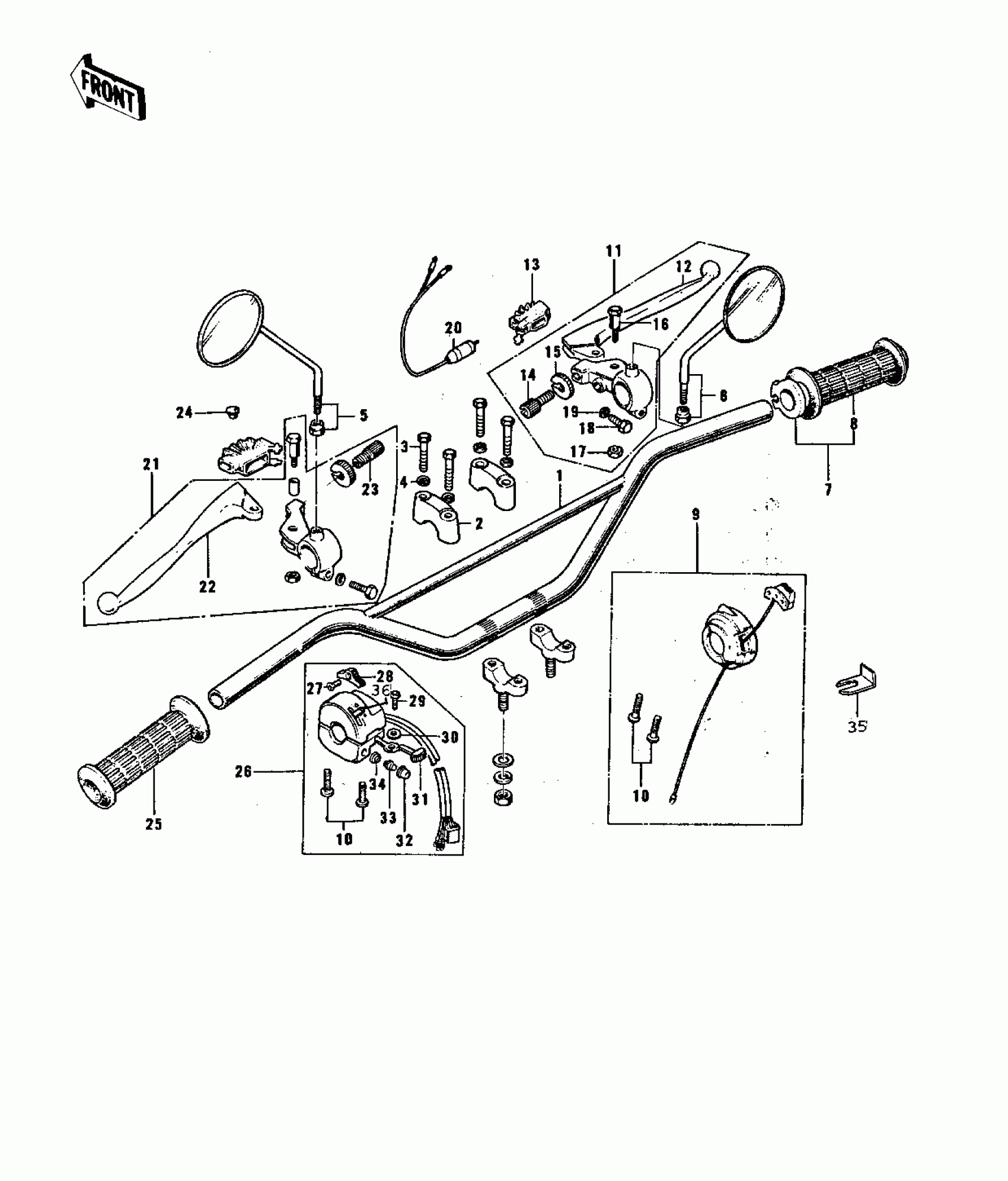

1974 Kawasaki G3SS-D Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

46003-035

1
Out of stock

2

HOLDER-HANDLE,UPP

46012-004

1
Out of stock

3

BOLT 8X38

92001-1405

1
Out of stock

4

WASHER SPRING 8MM

461F0800

1
Out of stock

5

MIRROR-ASSY,LH

56003-009

1
Out of stock

6

MIRROR-ASSY,RH

56002-020

1
Out of stock

7

GRIP ASSY,THROTTLE

46019-034

1

$47.40

In stock

8

RUBBER-R.H. GRIP

46061-013

1
Out of stock

9

CASE ASSY,R.H

46018-036

1
Out of stock

10

SCREW-PAN-CROS,5X25

220B0525

1
Out of stock

11

LEVER ASSY,FRONT BRK

46021-029

1
Out of stock

12

1

$22.90

In stock

13

DUST COVER

46071-002

1
Out of stock

14

SCREW,CABLE ADJUST

46055-010

1

$29.42

In stock

15

1

$7.04

In stock

16

BOLT,5X22

92007-046

1
Out of stock

17

NUT,LOCK,5MM

92019-014

1
Out of stock

18

BOLT-UPSET

112G0625

1
Out of stock

19

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

20

SWITCH,FR BRAKE LAMP

27021-004

1
Out of stock

21

LEVER-ASSY-GRIP,CLUTCH

46076-044

1
Out of stock

22

LEVER-GRIP,CLUTCH

46092-015

1
Out of stock

23

1

$14.99

In stock

24

CAP-RR VIEW MIRROR

92102-009

1
Out of stock

25

RUBBER-L.H GRIP

46075-019

1
Out of stock

26

CASE ASSY,L.H

46091-048

1
Out of stock

27,28,

L.H GRIP SWITCH KIT

99990-531

1
Out of stock

27

SCREW CNTSNK HD 3X8

221B0308A

1
Out of stock

28

KNOB-L.H SWITCH

46044-011

1
Out of stock

29

SCREW PAN HEAD 3X5

220B0305A

1
Out of stock

30

WASHER

92095-010

1
Out of stock

31

KNOB-SWITCH

46044-010

1
Out of stock

32

SWITCH,PUSH BUTTON

27010-1009

1
Out of stock

33

SWITCH,PUSH BUTTON

27010-1009

1
Out of stock

34

SWITCH,PUSH BUTTON

27010-1009

1
Out of stock

35

SWITCH ASSY,L.H

46089-015

1
Out of stock

36

HOLDER,CONTROL CABLE

46037-023

1
Out of stock
