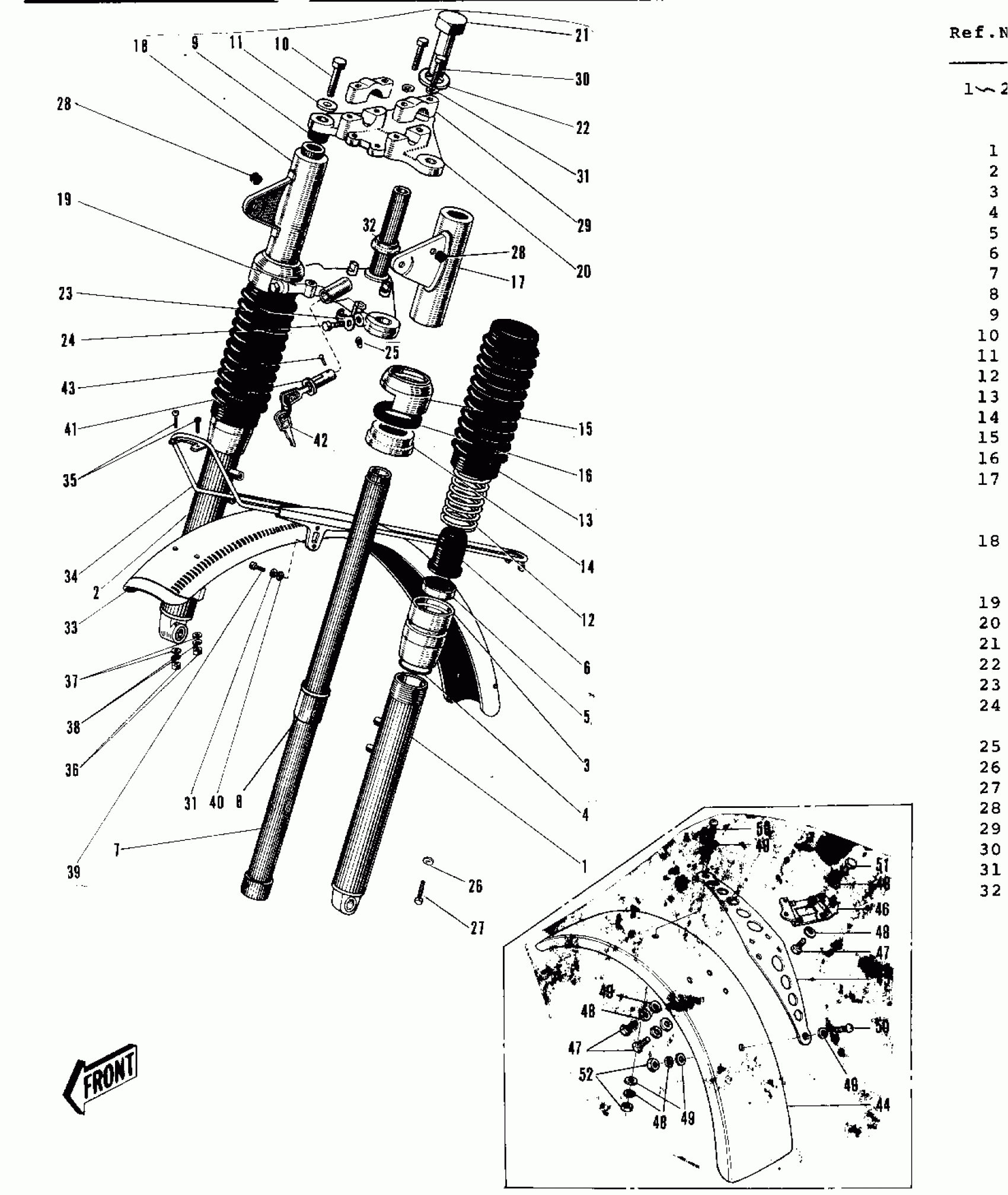

Kawasaki G3SS-D FRONT FORK ('69-'73) Diagram

#

Description
Price

1-27

FRONT FORK ASSY

44001-058

$189.53

1-27

FORK-FRONT,BLACK

44001-058-21

$441.24

1

TUBE,LH,FORK OUTER

44005-029-15

$109.36

2

TUBE,RH,FORK OUTER

44006-028-15

$83.34

3

NUT FORK OUTER TUBE

44007-008

$34.47

4

'O' RING OUTER TUBE

44046-005

Unavailable

5

OIL SEAL,FORK

44009-021

Unavailable

6

DUST SHIELD FORK

44010-015

Unavailable

7

TUBE FORK INNER

44013-010

$113.67

8

GUIDE FORK INNER TUBE

44015-003

$11.17

9

GASKET INNER TUBE UPP

44046-002

Unavailable

10

BOLT FORK TOP

44041-020

$10.44

11

WASHER FORK TOP

44043-017

$3.17

12

SPRING FORK

44026-020

$19.27

13

COVER FORK DUST

44027-004

Unavailable

14

GUIDE FORK SPRING

44029-011

$2.44

15

RING FORK COVER

44030-004

Unavailable

16

GASKET FORK COVER

44045-014

$4.17

17

COVER L.H FORK

44033-013

$16.39

17

COVER-L.H FORK,BLACK

44033-013-21

$30.41

18

COVER R.H FORK

44034-012

$16.39

18

COVER-R.H FORK,BLACK

44034-012-21

$30.41

19

STEM STEERING

44037-020

$115.29

20

HEAD STEERING STEM

44039-013

$148.66

21

BOLT STRNG STEM HEAD

44041-007

Unavailable

22

WASHER FORK COVER

44043-032

Unavailable

23

CLAMP CABLE

92037-022

$3.41

24

BOLT HEX HEAD 10X32

113B1032

Unavailable

25

WASHER SPRING 10MM

461F1000

Unavailable

26

GASKET,FORK DRAIN PLUG

44045-002

$3.95

27

SCREW PAN HEAD 4X8

220B0408

Unavailable

28

CAP,RUBBER

14039-001

$3.28

29

HOLDER-HANDLE,UPP

46012-004

Unavailable

30

BOLT HEX HEAD 8X35

110N0835

Unavailable

31

WASHER SPRING 8MM

461F0800

Unavailable

32

RACE,LOWER BEARING

92047-004

Unavailable

33

FENDER-FR

35004-1010

Unavailable

34

STAY FRONT FENDER

35011-005

Unavailable

35

SCREW PAN HEAD 6X10

220E0610

Unavailable

36

NUT 6MM

312B0600

Unavailable

37

WASHER PLAIN 6MM

411B0600

Unavailable

38

WASHER SPRING 6MM

461F0600

Unavailable

39

BOLT SMALL

114G0812

Unavailable

40

WASHER PLAIN 8MM

410B0800

Unavailable

41,42

LOCK ASSY,STEERING

27016-5025

Unavailable

42

KEY SET NO.301

27008-024-01

$5.56

42

KEY SET NO.302

27008-024-02

$5.56

42

KEY SET NO.303

27008-024-03

Unavailable

42

KEY SET NO.304

27008-024-04

$6.32

42

KEY SET NO.305

27008-024-05

$7.25

42

KEY SET NO.235

27008-034-35

Unavailable

42

KEY SET NO.236

27008-034-36

Unavailable

42

KEY SET NO.237

27008-034-37

$6.75

42

KEY SET NO.238

27008-034-38

Unavailable

42

KEY SET NO.239

27008-034-39

Unavailable

42

KEY SET NO.321

27008-034-21

Unavailable

42

KEY SET NO.322

27008-034-22

$15.76

42

KEY SET NO.323

27008-034-23

$6.36

42

KEY SET NO.324

27008-034-24

$15.61

43

RIVET

92099-001

$3.51

44

FENDER-FR

35004-059

$77.68

45

PLATE FRONT FENDER

35013-003

$7.22

46

BRACKET FRONT FENDER

35012-010

Unavailable

47

BOLT-UPSET,6X12

112G0612

Unavailable

48

WASHER SPRING 6MM

461F0600

Unavailable

49

WASHER PLAIN 6MM

411B0600

Unavailable

50

SCREW PAN HEAD 6X10

220E0610

Unavailable

51

BOLT 6X22

112B0622

Unavailable

52

NUT 6MM

312B0600

Unavailable
