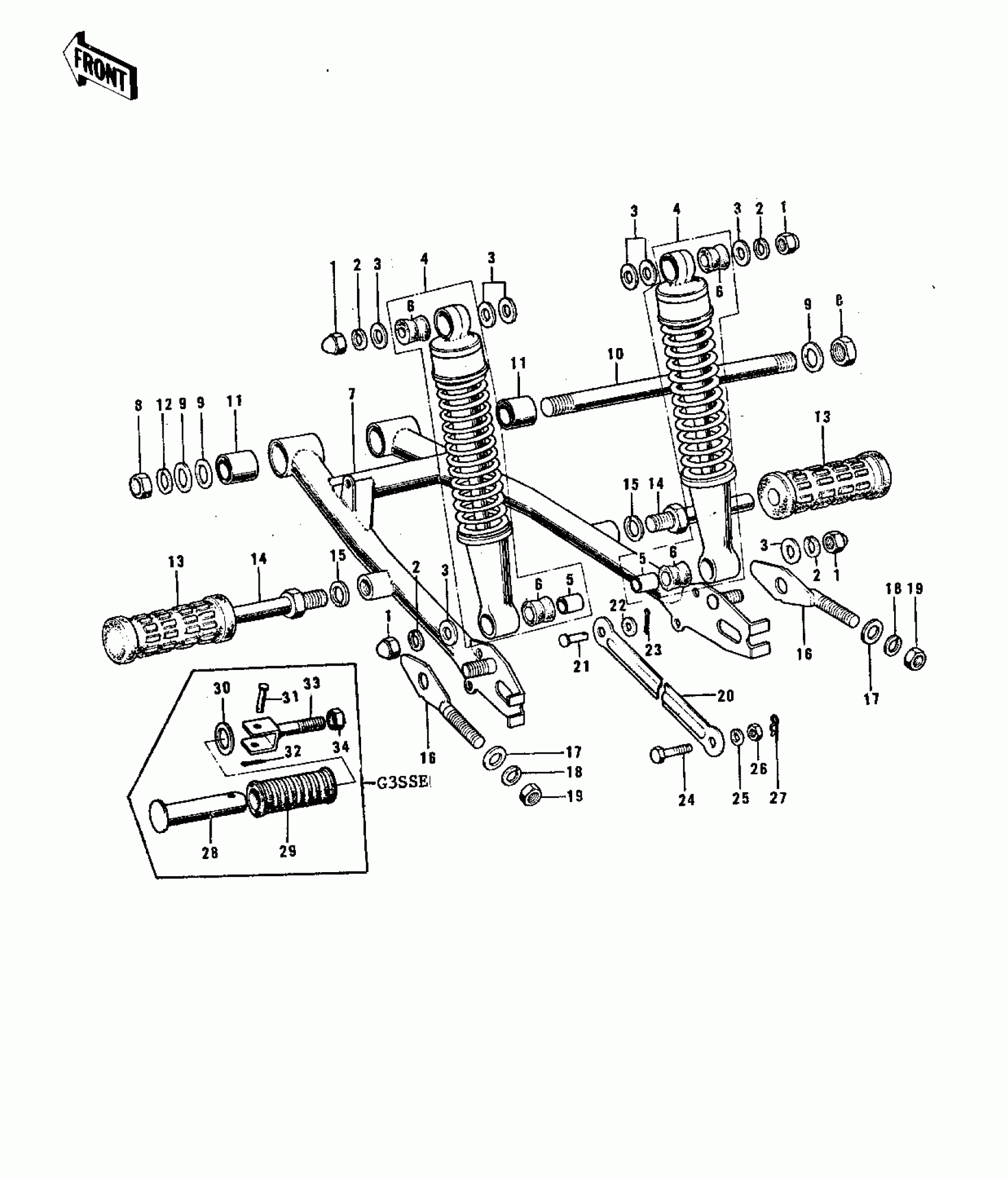

Kawasaki G3SS-D SWING ARM/SHOCK ABSORBERS ('74-'75) Diagram

#

Description
Price

1

NUT,CAP,12MM

92020-014

$7.52

2

WASHER-SPRING,12MM

461F1200

Unavailable

3

WASHER PLAIN 12MM

411B1200

Unavailable

4

SHOCK ABSBR RR

45014-038

Unavailable

5

BUSHING,SHOCK ABSORB

45016-007

$3.14

6

BUSHING,SHOK ABN RUB

45017-014

$1.98

7

ARM,SWING

33001-023

Unavailable

8

NUT-HEX-FINE,10MM

314B1000

Unavailable

9

WASHER PLAIN 10MM

410B1000

Unavailable

10

SHAFT SWING ARM PIVOT

33032-009

Unavailable

11

BUSH SWING ARM SHAFT

92092-006

$16.63

12

WASHER SPRING 10MM

461F1000

Unavailable

13

RUBBER REAR FOOTREST

92076-008

Unavailable

14

BAR REAR FOOTREST

34028-006

$5.81

15

WASHER-SPRING,12MM

461F1200

Unavailable

16

ADJUSTER CHAIN

33040-008

Unavailable

17

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

18

WASHER SPRING 6MM

461F0600

Unavailable

19

NUT 6MM

311B0600

Unavailable

20

TORQUE LINK REAR BRK

43007-007

Unavailable

21

PIN,SPRING,10X12

43009-001

$7.31

22

WASHER PLAIN 10MM

410B1000

Unavailable

23

PIN-COTTER,2.5X20

550D2520

$1.05

24

BOLT,10X32

92003-003

$5.42

25

WASHER SPRING 10MM

461F1000

Unavailable

26

NUT-HEX-FINE,10MM

314B1000

Unavailable

27

PIN-SNAP,8MM

554A0800

Unavailable

28

STEP,RR

34028-009

$24.51

29

RUBBER,REAR FOOTREST

92076-024

$20.16

30

WASHER-PLAIN (OPT)

92022-199

Unavailable

31

PIN,6X28

92043-1464

$6.84

32

PIN COTTER 2.0X15

550D2015

Unavailable

33

BRACKET,REAR FOOTREST

33028-011

Unavailable

34

NUT-HEX-FINE

315B1200

Unavailable
