1995 Yamaha FX-1 (FX700T) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1995 Yamaha FX-1 (FX700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

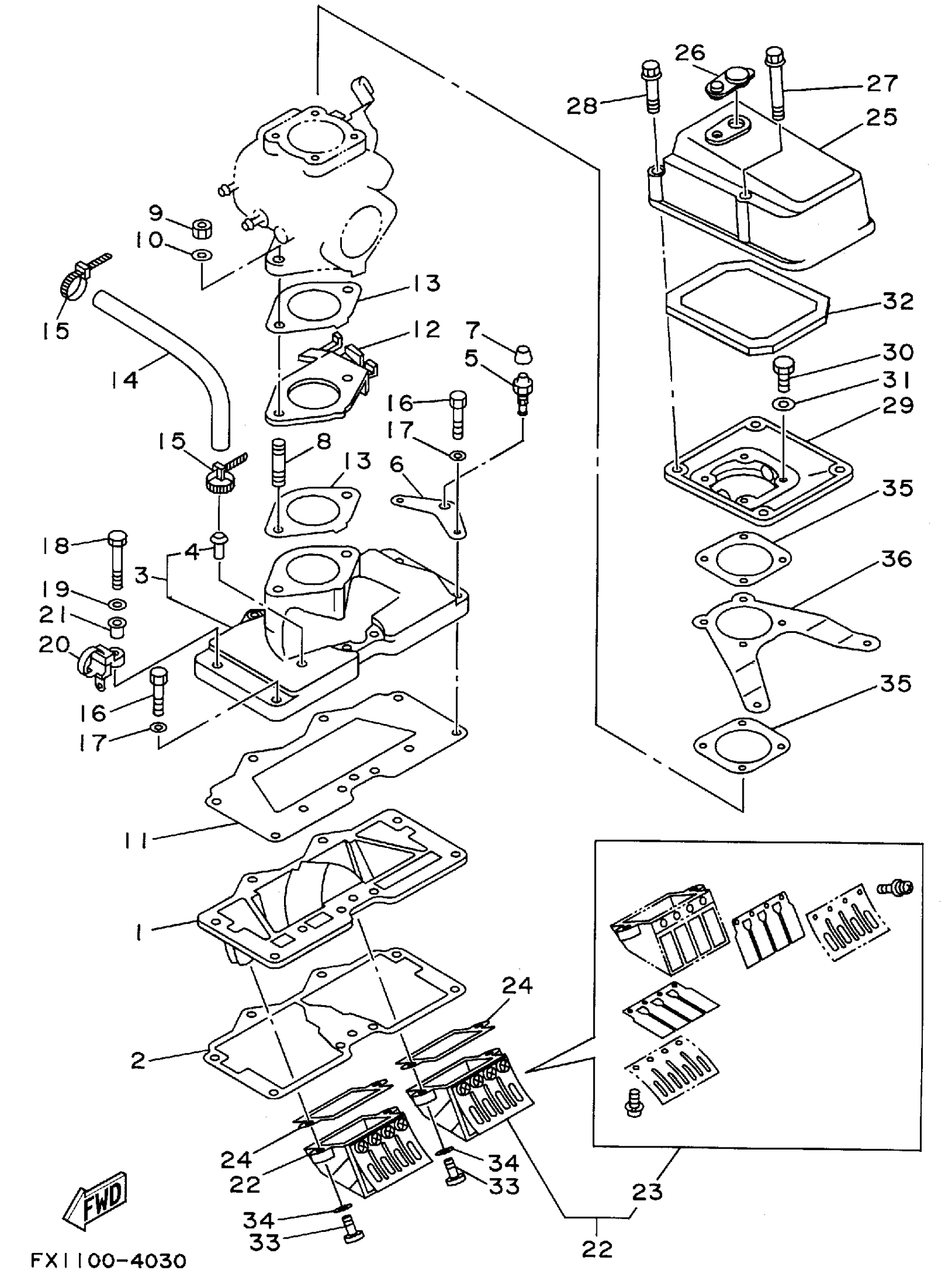

1995 Yamaha FX-1 (FX700T) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD 1

61X-13641-01-94

1
Out of stock

2

GASKET

61X-13566-A1-00

1

$12.99

In stock

3

MANIFOLD, INTAKE

61X-13555-01-8P

1
Out of stock

4

. PIPE, JOINT 4

652-24461-00-00

1

$4.74

In stock

5

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock

6

PLATE

61L-14243-00-00

1
Out of stock

7

CAP, GREASE NIPPLE

663-45119-01-00

1

$1.86

In stock

8

BOLT, STUD

90116-08M14-00

1

$5.53

In stock

9

NUT (661)

95380-08600-00

1

$6.23

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

GASKET

61X-13563-A1-00

1
Out of stock

12

PLATE

6M6-14527-02-94

1
Out of stock

13

GASKET, MANIFOLD

6M6-13556-A1-00

1

$6.00

In stock

14

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

15

CLAMP

90465-10098-00

1

$2.24

In stock

16

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

BOLT, HEXAGON

97080-06045-00

—

$4.13

In stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

20

CLAMP

90465-12M53-00

1

$5.08

In stock

21

COLLAR

90387-06M05-00

1

$7.12

In stock

22

REED VALVE ASSY

61X-13610-01-00

1
Out of stock

23

. REED SET

61X-W0004-00-00

1
Out of stock

24

. GASKET, VALVE SEAT

61X-13621-A0-00

1
Out of stock

25

COVER, CARBURETOR 1

61X-14283-01-00

1

$42.99

In stock

26

GROMMET

6K8-14435-00-00

1

$11.49

In stock

27

BOLT, WITH WASHER

90119-05M02-00

1

$3.16

In stock

28

BOLT, WITH WASHER

90119-05M01-00

1
Out of stock

29

COVER, CARBURETOR 2

6M6-14284-00-8P

1
Out of stock

30

BOLT(7U8)

97080-06020-00

1
Out of stock

31

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

32

ELEMENT, AIR CLEANER

6M6-14451-00-00

1
Out of stock

33

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

34

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

35

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

1

$5.08

In stock

36

PLATE

6R7-14255-00-00

1
Out of stock
