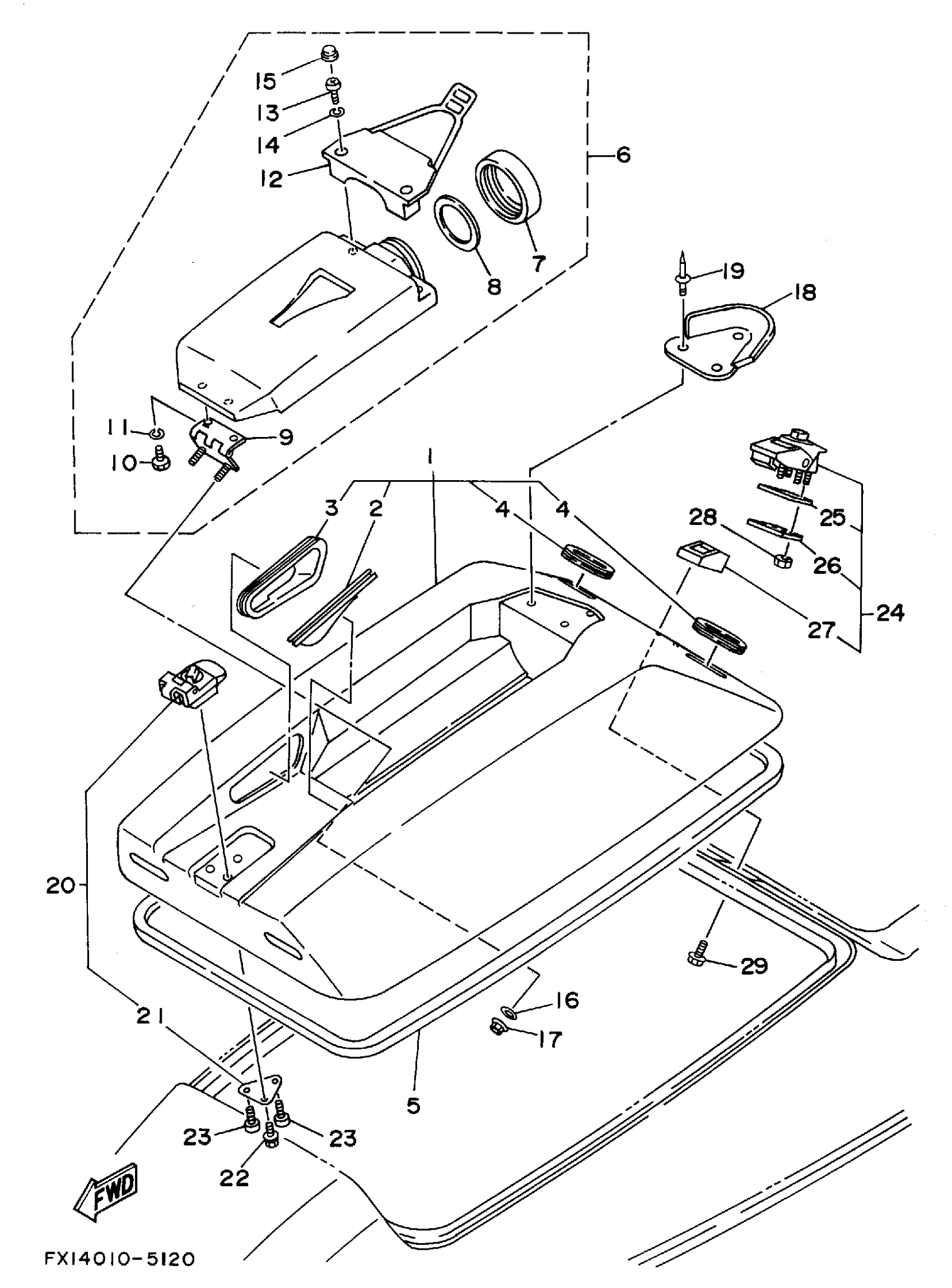

Yamaha FX700T (FX-1) 1995 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

FX1-6516A-00-R9

Unavailable

2

. TRIM, HATCH 1

FX1-65115-10-00

Unavailable

3

. TRIM, HATCH 1

FX1-65115-20-00

Unavailable

4

. TRIM, HATCH 2

FX1-65116-00-00

Unavailable

5

PACKING

FX1-62664-01-00

Unavailable

6

CASE ASSEMBLY 1

FX1-6591A-00-00

Unavailable

7

. CAP, CASE

EW2-65912-00-00

$23.99

8

. PACKING, CASE

EW2-65913-00-00

$5.91

9

HINGE, LID

FX1-6517D-00-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

11

WASHER, SPRING

92995-06100-00

$2.95

12

BAND,CASE

FX1-6591K-00-00

$103.02

13

SCREW, PAN HEAD

98580-06016-00

$2.88

14

WASHER, SPRING

92995-06100-00

$2.95

15

CAP

FX1-6514F-00-00

$10.49

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

NUT, FLANGE

95780-06300-00

$7.14

18

DAMPER, POLE

FX1-6514B-00-00

$104.53

19

RIVET (EU0)

90267-48938-00

$5.00

20

HATCH LOCK ASSY

FX1-62840-31-00

Unavailable

21

. PLATE, HATCH LOCK

FX1-6284F-00-00

Unavailable

22

BOLT, WITH WASHER

90119-05935-00

Unavailable

23

SCREW, PAN HEAD

98580-05020-00

$1.43

24

HATCH LOCK ASSY

FX1-62840-02-00

Unavailable

25

. PACKING, HATCH LOCK

EW2-62845-00-00

$6.36

26

. PLATE, HATCH LOCK

EW2-62846-00-00

$5.45

27

. HOOK, HATCH LOCK

FX1-62843-00-00

$22.71

28

.. NUT

95380-05800-00

$2.73

29

BOLT, WITH WASHER

90119-05935-00

Unavailable
