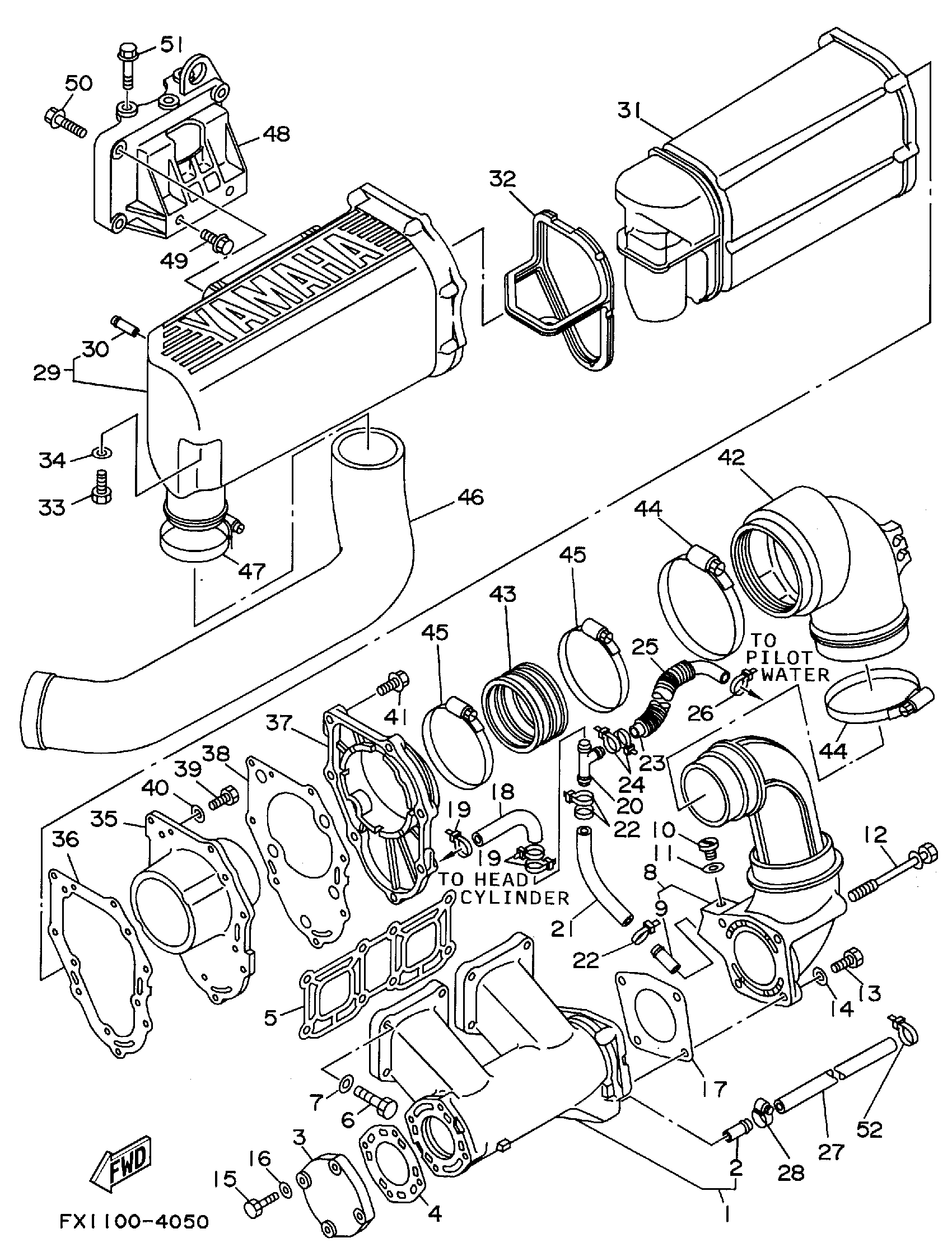

Yamaha FX700T (FX-1) 1995 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

61X-14711-02-00

$471.63

2

. NIPPLE

6K8-51129-00-00

$9.87

3

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$56.70

4

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.20

5

GASKET, EXHAUST PIPE

61X-14613-A1-00

$25.83

6

BOLT

97013-08035-00

$4.48

7

.. WASHER, PLATE

92990-08600-00

$2.41

8

RING, JOINT

61L-14712-00-00

Unavailable

9

. NIPPLE

6K8-51129-00-00

$9.87

10

PLUG, STRAIGHT SCREW

90340-08002-00

$11.42

11

GASKET

90430-08003-00

$1.60

12

BOLT, WITH WASHER

97513-08590-00

Unavailable

13

BOLT (682)

97013-08025-00

$6.34

14

.. WASHER, PLATE

92990-08600-00

$2.41

15

BOLT

90101-06M27-00

$3.28

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.02

18

HOSE

90445-14M11-00

Unavailable

19

CLAMP

90465-10098-00

$2.24

20

PIPE, JOINT 3

6E5-24378-00-00

$16.71

21

HOSE

90445-14M11-00

Unavailable

22

CLAMP

90465-10098-00

$2.24

23

HOSE (L1300)

90445-14M22-00

Unavailable

24

CLAMP

90465-10098-00

$2.24

25

HOSE(61L)

90446-20M31-00

Unavailable

26

CLAMP

90465-10098-00

$2.24

27

HOSE (L380)

90445-14M25-00

Unavailable

28

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

29

MUFFLER 2

6R7-14721-00-8S

$358.19

30

. PIPE, JOINT

6R7-14485-00-00

$11.93

31

SILENCER, EXHAUST

6R7-14753-00-8S

$199.99

32

SEAL, RUBBER 1

6R7-15761-00-00

$26.85

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

DIFFUSER

6R7-14785-00-8S

$102.97

36

. GASKET, SILENCER

6R7-14755-A0-00

$17.14

37

OUTER COVER, EXHAUST

6R7-41113-00-8S

$103.39

38

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$20.57

39

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

40

WASHER, PLAIN (646)

92990-06600-00

Unavailable

41

BOLT, WITH WASHER(63M)

97513-06530-00

$3.88

42

JOINT, EXHAUST 1

61L-14615-00-00

$94.77

43

JOINT, EXHAUST 2

61L-14625-00-00

$73.25

44

CLAMP, HOSE

90460-90M11-00

$56.70

45

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

46

PIPE, OUTLET

62L-14752-00-00

Unavailable

47

CLAMP, HOSE(6R7)

90460-64M15-00

Unavailable

48

STAY, MUFFLER 1

6M6-14771-00-00

$97.00

49

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

50

BOLT, WASHER BASED

90105-10M45-00

$5.37

51

BOLT, WITH WASHER

90119-10M72-00

$5.69

52

BAND, HOSE 11

90601-11062-00

Unavailable
