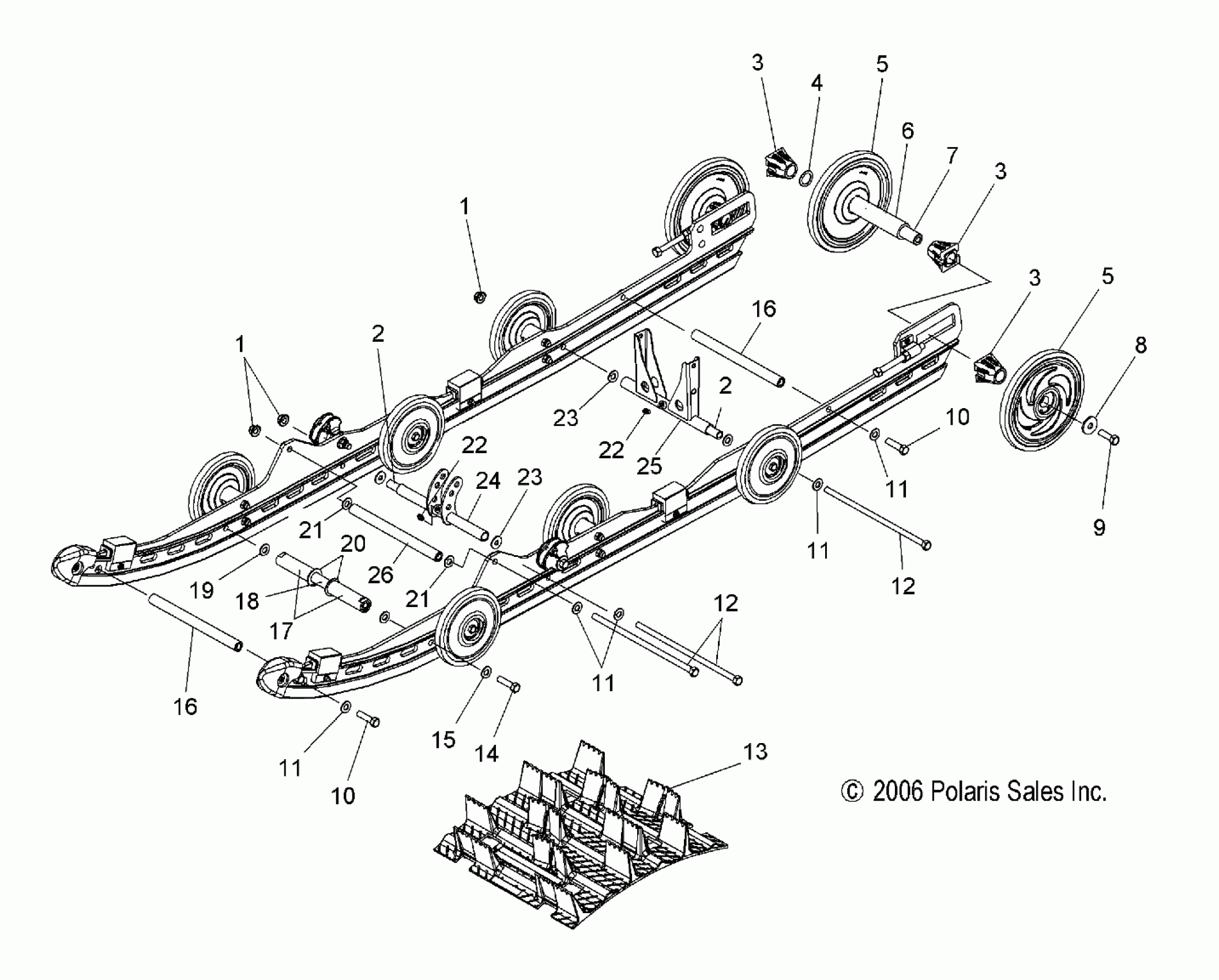

Polaris FST IQ SWITCHBACK - S07PS7FS/FE SUSPENSION, REAR - S07PS7FS/FE (49SNOWSUSPRR600SWTCH) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

TUBE

5334162

$24.27

2

TUBE

5334162

$24.27

3

SPACER-IDLER

5432535

$11.99

3

SPACER-IDLER

5432535

$11.99

3

SPACER-IDLER

5432535

$11.99

4

BUSHING

7555918

$1.59

5

BEARING [1 PER WHEEL]

3514384

$19.84

5

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

5

Asm., Wheel, Bright Silver

1590388-244

$67.76

5

BEARING [1 PER WHEEL]

3514384

$19.84

5

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

5

Asm., Wheel, Bright Silver

1590388-244

$67.76

6

SPACER-IDLER, LONG

5333285

$11.99

7

SHAFT, IDLER

5020744

$59.99

8

WASHER, BELLE

7556130

$6.39

9

BOLT

7517731

$1.49

10

SCREW

7518005

$3.19

10

SCREW

7518005

$3.19

11

Washer, Flat

7555806

$1.49

11

Washer, Flat

7555806

$1.49

11

Washer, Flat

7555806

$1.49

11

Washer, Flat

7555806

$1.49

12

SCREW

7517921

$23.99

12

SCREW

7517921

$23.99

13

Track, 144 Inch, 1.25

5412168

Unavailable

14

Screw

7517857

$5.59

15

WASHER

7556042

Unavailable

16

SHAFT

5134078

$38.71

16

SHAFT

5134078

$38.71

17

Spacer, Shock Centering

5334062

$11.99

18

SHAFT

5133188

$40.46

19

WSHR-.813X.406X.105-Y

7555832

$2.39

20

WASHER

7556210

$3.99

21

Washer, Flat

7555893

$1.49

21

Washer, Flat

7555893

$1.49

22

FITTING-LUBRICATION 1/4-28

7080424

$4.79

22

FITTING-LUBRICATION 1/4-28

7080424

$4.79

23

WASHER

7556242

$2.39

23

WASHER

7556242

$2.39

24

Arm, Shock Pivot, Black

1542122-067

$84.99

25

Arm, Rear Pivot, Black

1541832-067

$104.99

26

SHAFT

5334026

$28.32
