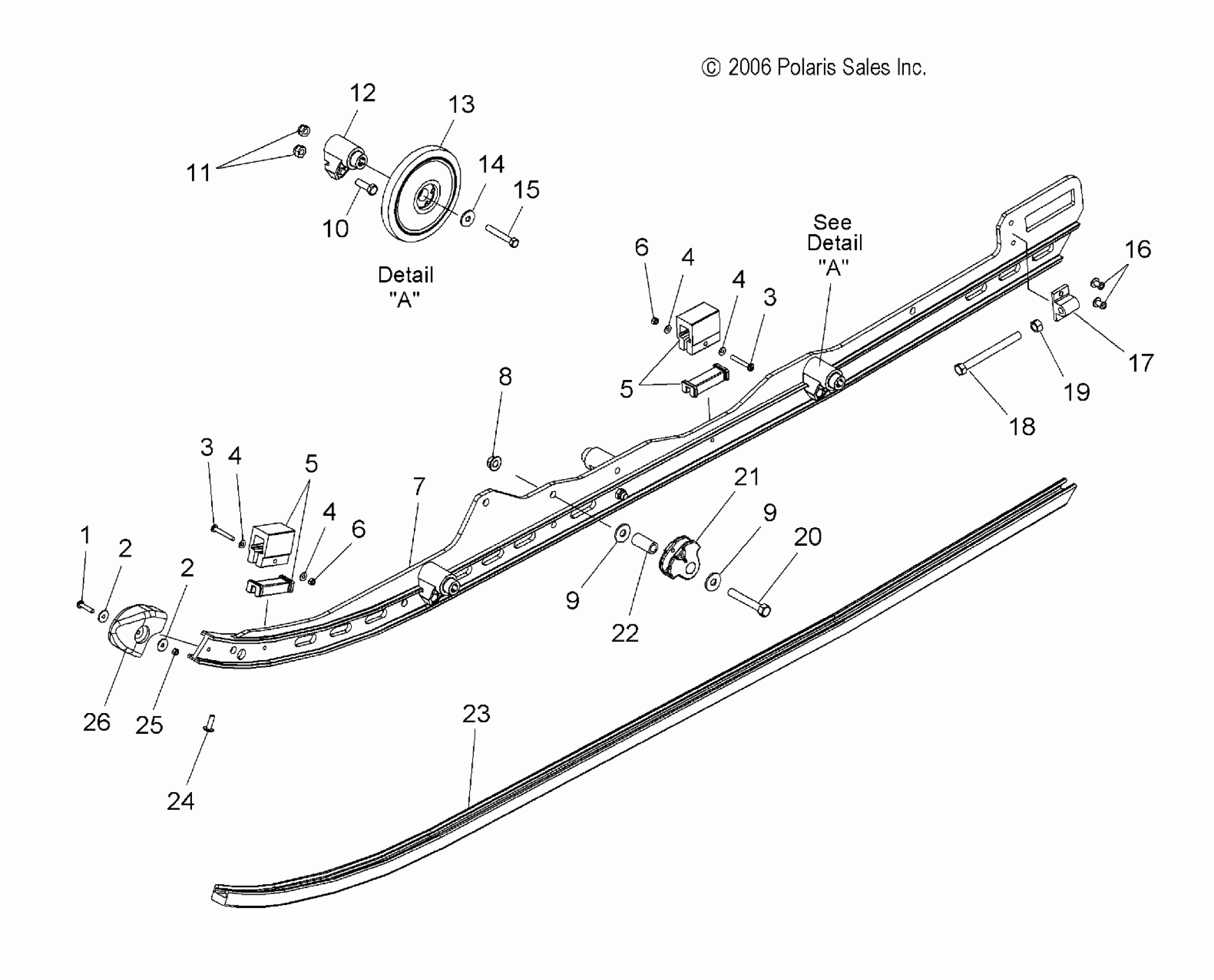

Polaris FST IQ SWITCHBACK - S07PS7FS/FE SUSPENSION, RAIL MOUNTING - S07PS7FS/FE (49SNOWSUSPRAILFSTSWTCH) Diagram

#

Description
Price

1

Bolt

7518335

Unavailable

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Screw

7510504

$6.76

3

Screw

7510504

$6.76

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

6

Nut, Nylok

7541925

$1.49

6

Nut, Nylok

7541925

$1.49

7

Asm., Rail, 144, RH [Incl. 1-7,16,17,25,26]

1542034

Unavailable

7

Asm., Rail, 144, LH [Incl. 1-7,16,17,25,26]

1542033

$383.49

8

NUT-3/8-24 FLG LOC

7547263

$3.19

9

WASHER

7555983

Unavailable

9

WASHER

7555983

Unavailable

10

BOLT

7515317

$4.79

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

BLOCK, WHEEL MOUNT

5631446

$24.27

13

BEARING [1 PER WHEEL]

3514384

$19.84

13

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

13

Asm., Wheel, Scrolled, Black

1590419-070

$67.76

14

Washer, Spring

7556179

$7.99

15

Screw

7515346

$5.59

16

RIVET

7621501

$2.39

17

BLOCK, IDLER BOLT ADJUSTABLE

5130530

$32.37

18

SCREW

7517227

$7.19

19

NUT

7542404

$1.59

20

Bolt

7515438

$4.79

21

GUIDE, SPRING SQUARE

5434334

$28.32

22

SPACER

5333948

$6.39

23

SLIDER

5521633

$40.46

24

Screw

7515199

$1.49

25

Nut, Nylok

7541925

$1.49

26

Cap, Rail Tip

5435527

$27.78
