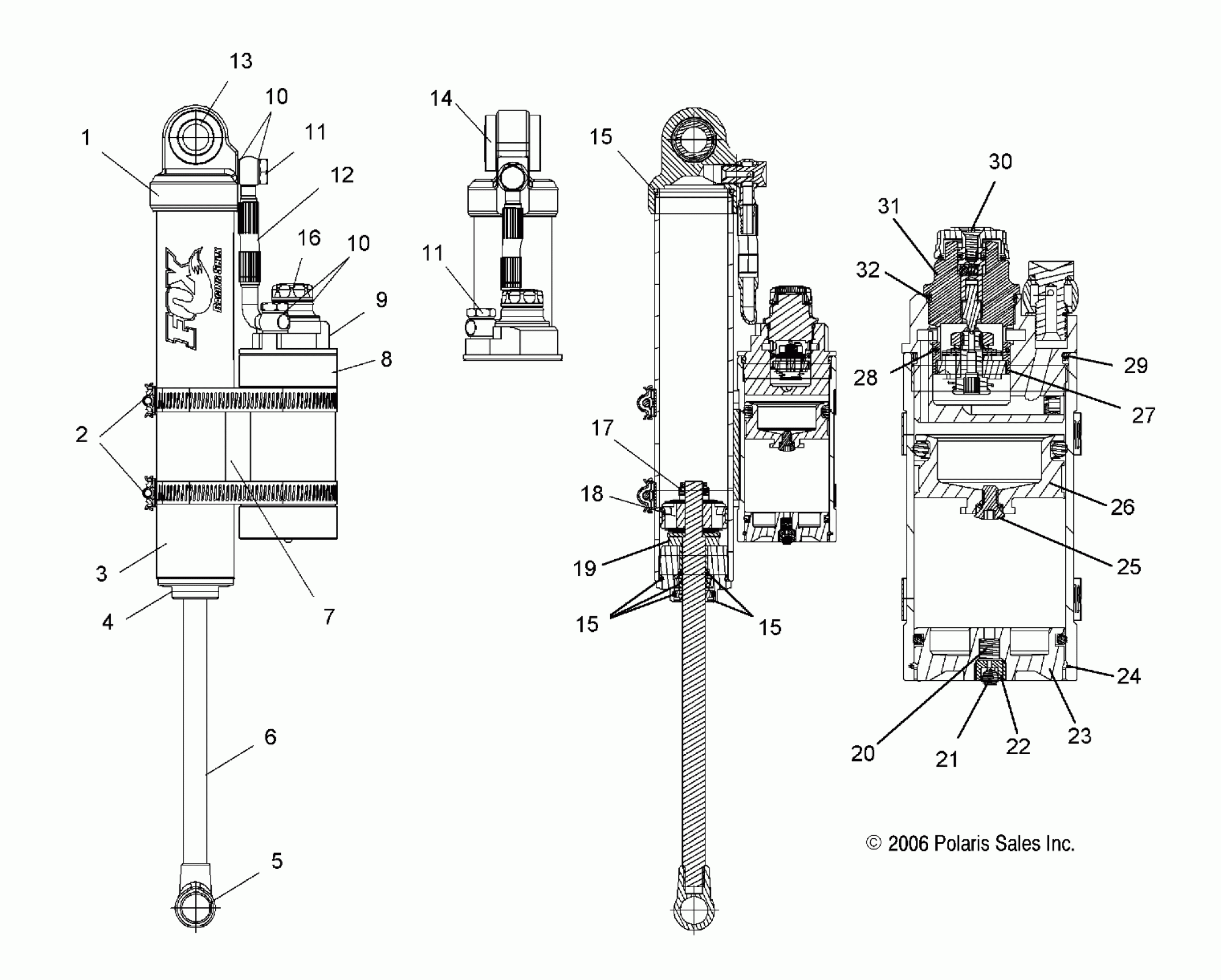

Polaris FST IQ SWITCHBACK - S07PS7FS/FE SHOCK, REAR TRACK (7043246) - S07PS7FS/FE (49SNOWSHOCKREAR7043246) Diagram

#

Description
Price

1

Asm., Body Cap

1500717

$164.79

2

Clamp, Hose

1500330

$9.52

3

Body

1500716

$140.79

4

Asm., Bearing, FIST

1500545

Unavailable

5

Eyelet, Shaft

1500737

Unavailable

6

SHAFT

1500715

$153.79

7

Spacer

1500725

Unavailable

8

Reservoir

1500731

$123.99

9

Asm., CD Housing

1500780

$136.49

10

Washer, Crush

1500783

$11.41

10

Washer, Crush

1500783

$11.41

11

Bolt, Banjo

1500718

Unavailable

11

Bolt, Banjo

1500718

Unavailable

12

Asm., Hose

1500785

Unavailable

13

SLEEVE

1500310

$23.99

14

Bushing

1500309

Unavailable

15

Kit, Rebuild

1500739

$119.05

15

Kit, Rebuild

1500739

$119.05

15

Kit, Rebuild

1500739

$119.05

16

Knob

1500720

$45.59

17

Nut, Lock

1500016

$12.79

18

PISTON

1500702

Unavailable

19

Bumper

1500074

$5.65

20

PELLET

1500724

$12.79

21

Ball

1500722

$3.19

22

Screw, Set

1500723

$27.99

23

End Cap, Reservoir

1500782

$56.99

24

Wire, Retaining Ring

1500730

$6.63

25

ASM., SCREW W/O-RING

1500161

Unavailable

26

Piston, Floating

1500728

$79.99

27

Piston, Adjust

1500727

$111.99

28

O-Ring

1500784

$4.56

29

O-RING,.103W-1.737ID

1500623

$6.39

30

Screw, Set

1500721

$5.43

31

CD Cartridge

1500771

$88.56

32

O-Ring

1500622

$4.15
