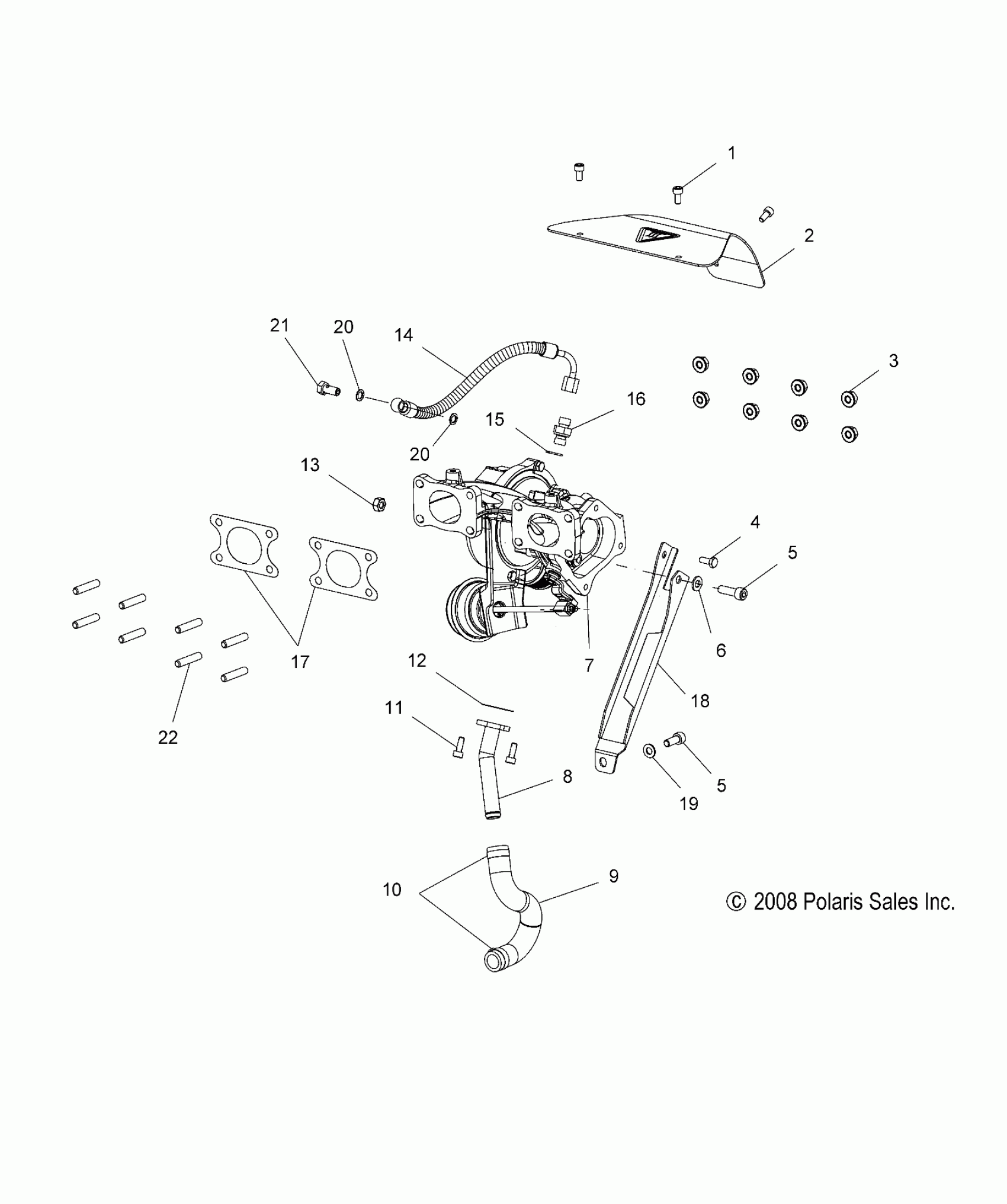

Polaris FST IQ SWITCHBACK - S07PS7FS/FE ENGINE, TURBO - S07PS7FS/FE (49SNOWTURBOFST) Diagram

#

Description
Price

1

BOLT

0452957

$4.79

2

SHIELD, HEAT

0452949

$66.39

3

NUT

0451503

$6.39

4

BOLT

0453174

Unavailable

5

BOLT

0452973

$4.79

5

BOLT

0452973

$4.79

6

WASHER

0452980

Unavailable

7

TURBO CHARGER

0452947

Unavailable

8

RETURN, FLANGE OIL

0452990

Unavailable

9

Hose, Oil Return

0453176

$99.99

10

CLAMP, HOSE

0452988

$6.39

11

BOLT

0451546

$3.19

12

GASKET

0452948

$19.99

13

NUT

0452968

$4.79

14

HOSE, OIL

0452989

$71.99

15

Seal

0451514

$9.59

16

FITTING

0453177

$27.99

17

GASKET, EXHAUST

0451515

$35.99

18

BRACKET, TURBO

0452978

Unavailable

19

WASHER

0451527

Unavailable

20

SEAL

0451915

$3.99

20

SEAL

0451915

$3.99

21

SCREW

0451385

$10.39

22

PIN, THREADED

0452933

$7.19
