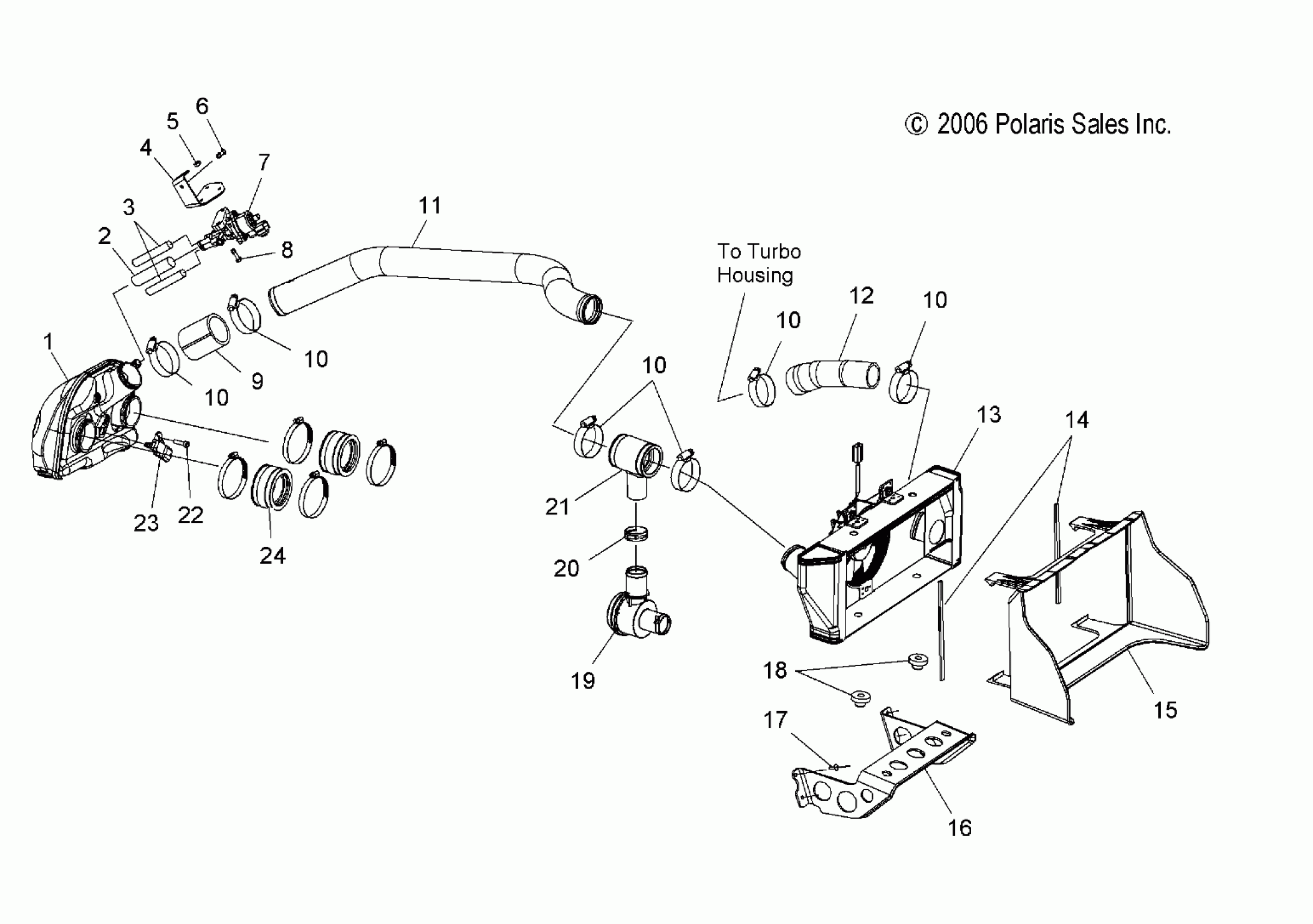

Polaris FST IQ SWITCHBACK - S07PS7FS/FE COOLER, INTER - S07PS7FS/FE (49SNOWCOOLERFSTIQSWTCH) Diagram

#

Description
Price

1

Asm., Air Box [Also Order Adapter 5414587, Qty. 2]

1203065

Unavailable

2

CLAMP-HOSE,.875-SS

7080474

$8.40

2

Hose

8450116-153

Unavailable

3

HOSE CLAMP, RED

7080003

$1.49

3

Hose

8450114-153

Unavailable

4

Bracket, IAC Motor

5249501

$24.27

5

Nut, Nylok

7542122

$1.49

6

Screw

7517916

$6.39

7

Asm., Idle Air Control Motor

1253562

$119.99

8

Screw

7517455

$8.99

9

CONNECTOR, BOOST TUBE/AIR BOX

5412592

$10.51

10

CLAMP, NARROW BAND

7081414

$8.79

10

CLAMP, NARROW BAND

7081414

$8.79

10

CLAMP, NARROW BAND

7081414

$8.79

10

CLAMP, NARROW BAND

7081414

$8.79

10

CLAMP, NARROW BAND

7081414

$8.79

11

TUBE, BOOST

5334748

$304.99

12

HOSE, TURBO/INTER COOLER

5412642

$24.27

13

Kit, CAC Fan Asm.

2202944

Unavailable

13

Kit, Charged Air Cooler

2202945

Unavailable

14

Foam, CAC Duct

5812870

$1.49

15

Asm., Shroud, CAC, FST [Incl 14]

1240234

$15.67

16

BRACKET, CHARGED AIR COOLER

5248495

$204.99

17

RIVET-3/16-.090-.290

7661637

$1.49

18

Grommet

7052028

$6.39

19

VALVE, DUMP, TURBO

1203061

$134.99

20

CLAMP, SPRING BAND

7080843

$3.99

21

CONNECTOR, BOOST TUBE/CHG. AIR

5413021

$44.39

22

SCREW

7517431

$5.59

23

Sensor, T-Map

2410605

$133.56

24

Adapter, Throttle Body [Order IF NOT Ordering Air Box Asm.]

5412475

$18.65

24

Adapter, Airbox, SVC [Order IF Ordering Air Box Asm. 1203065]

5414587

$69.99
