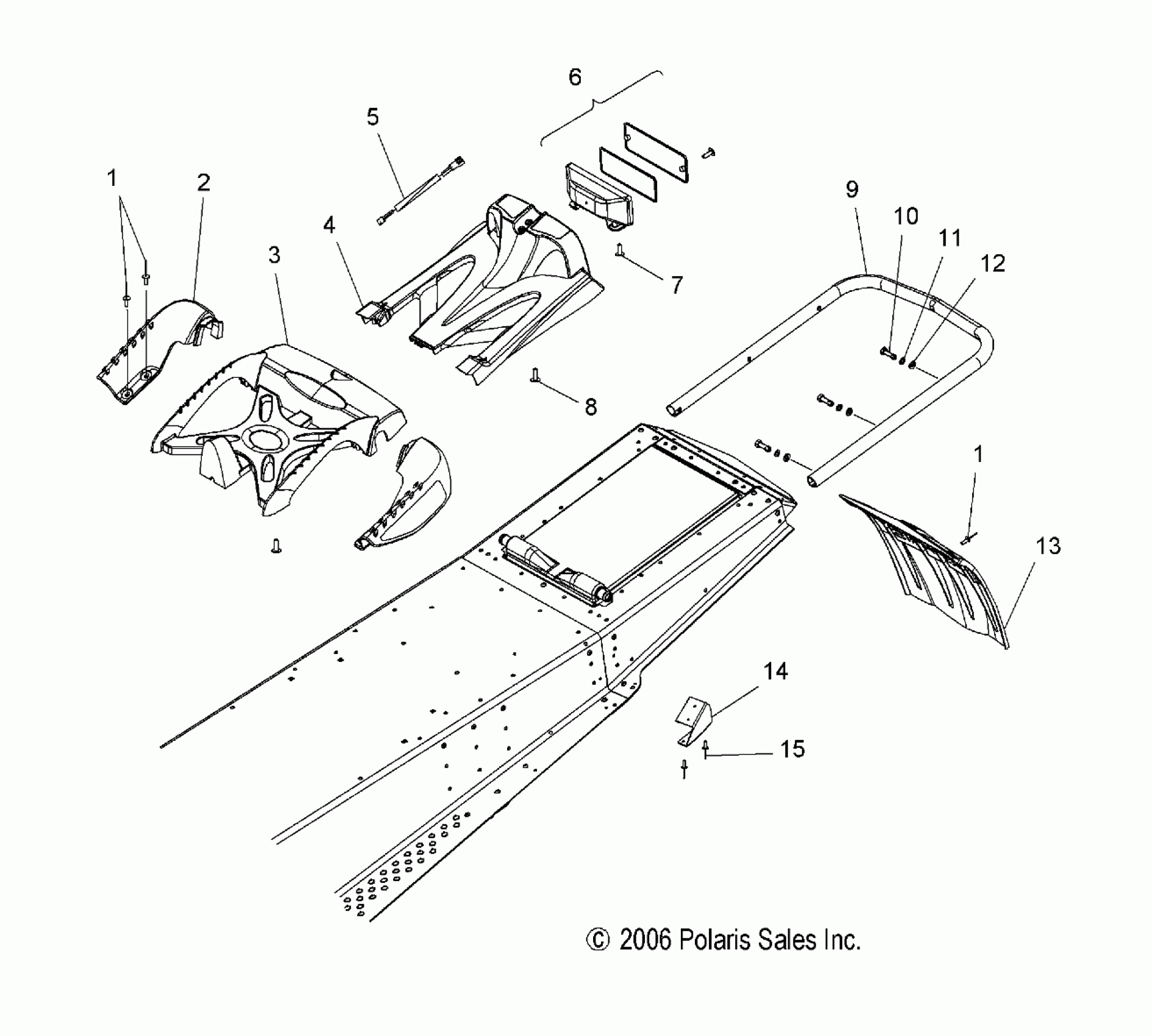

Polaris FST IQ SWITCHBACK - S07PS7FS/FE CHASSIS, REAR - S07PS7FS/FE (49SNOWCHASSISRRSWTCH) Diagram

#

Description
Price

1

RIVET

7621467

$1.49

1

RIVET

7621467

$1.49

2

Cover, Gripper/Deicer, Black, LH

5430014-070

Unavailable

2

Cover, Gripper/Deicer, Black, RH

5430015-070

Unavailable

3

Rack, Rear, Black

5436508-070

$45.59

4

Asm., Cover, Closeoff, Black [Incl. Decals]

2633276-070

Unavailable

5

Harness, Taillight

2410543

$41.59

6

Bulb, Taillight

4030043

$6.46

6

Gasket

4032015

Unavailable

6

Lens

4032014

$36.41

6

Asm., Taillight

2410544

$91.19

6

Screw

7518019

$2.63

7

SCREW

7512026

$1.49

8

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

9

Bumper, Rear, Natural

2633277-309

$95.19

10

Screw

7517298

$4.79

11

WASHER, SPRING LOCK

7552801

$1.59

12

Washer, Flat

7558301

$1.49

13

Flap, Snow, Black

5434954-070

$269.99

14

Bracket, Gripper Cover, 144/151, LH

5249075

$9.11

14

Bracket, Gripper Cover, 144/151, RH

5249076

$9.91

15

RIVET-3/16-.090-.290

7661637

$1.49
