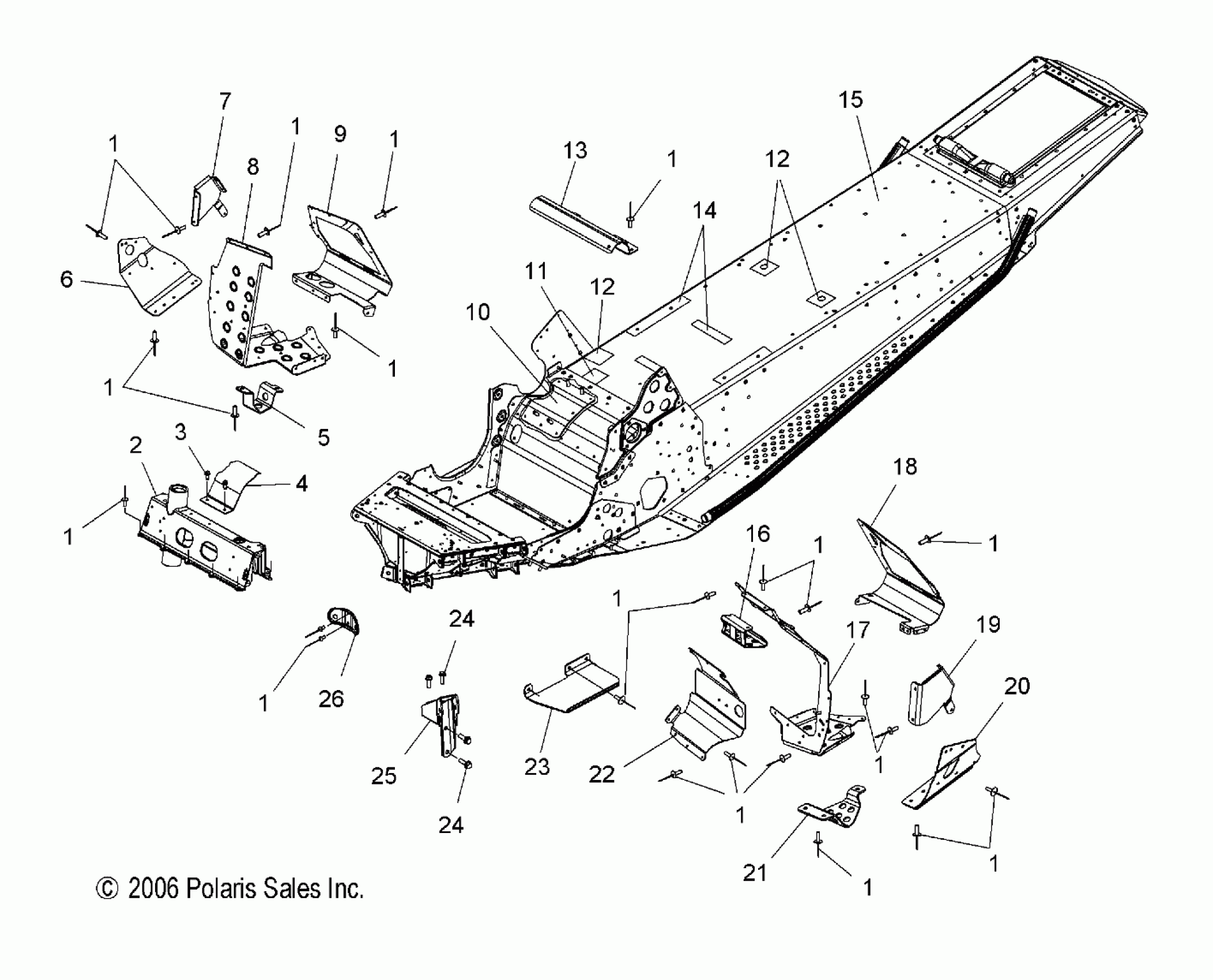

Polaris FST IQ SWITCHBACK - S07PS7FS/FE CHASSIS, FRONT - S07PS7FS/FE (49SNOWCHASSISFRTFSTSWTCH) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

2

Asm., Channel Strg/Shock Mount

1014894

Unavailable

3

SCREW

7517386

$1.49

4

SHIELD, HEAT, ALTERNATOR

5250865

Unavailable

5

LEG SUPPORT, RH

5248945

Unavailable

6

Support, Footrest, Lower, RH

5248808

$10.51

7

Support, Footrest Bumper, RH

5248401

Unavailable

8

Asm., Footrest w/Stud, RH

1015670

$119.99

9

TOE CLIP, RH

5248477

$64.99

10

RIVET-3/16-.090-.290

7661637

$1.49

10

PLATE, STEERING MOUNT

1014565

Unavailable

11

Seal, Tunnel

5812612

Unavailable

12

Tape, Polyethylene

5812527

$32.15

12

Tape, Polyethylene

5812527

$32.15

13

Guard, Wiring, ECU/Jackshaft

5248667

Unavailable

14

PAD-BATTERY

5810290

$7.27

15

Asm., Chassis, FST SB 144, Natural

1015505-309

$1,299.99

16

MOUNT, PLENUM

5249078

Unavailable

17

ASM., FOOTREST W/STUD, LH

1015301

$119.99

18

Toe Clip, LH

5248476

Unavailable

19

Support, Footrest, Bumper, LH

5248402

Unavailable

20

SUPPORT, FOOTREST LOWER, LH

5248807

Unavailable

21

LEG SUPPORT, LH

5248403

Unavailable

22

BRACKET, CLUTCH GUARD

5247420

Unavailable

23

GUARD, BELT

5249757

$34.99

24

Screw

7518179

$3.99

24

Screw

7518179

$3.99

25

ASM., SHOCK MOUNT, BLACK, RH

1014463-067

$94.99

25

ASM., SHOCK MOUNT, BLACK, LH

1014462-067

Unavailable

26

BRACE, FRONT LOWER A-ARM

5247372

$54.99
