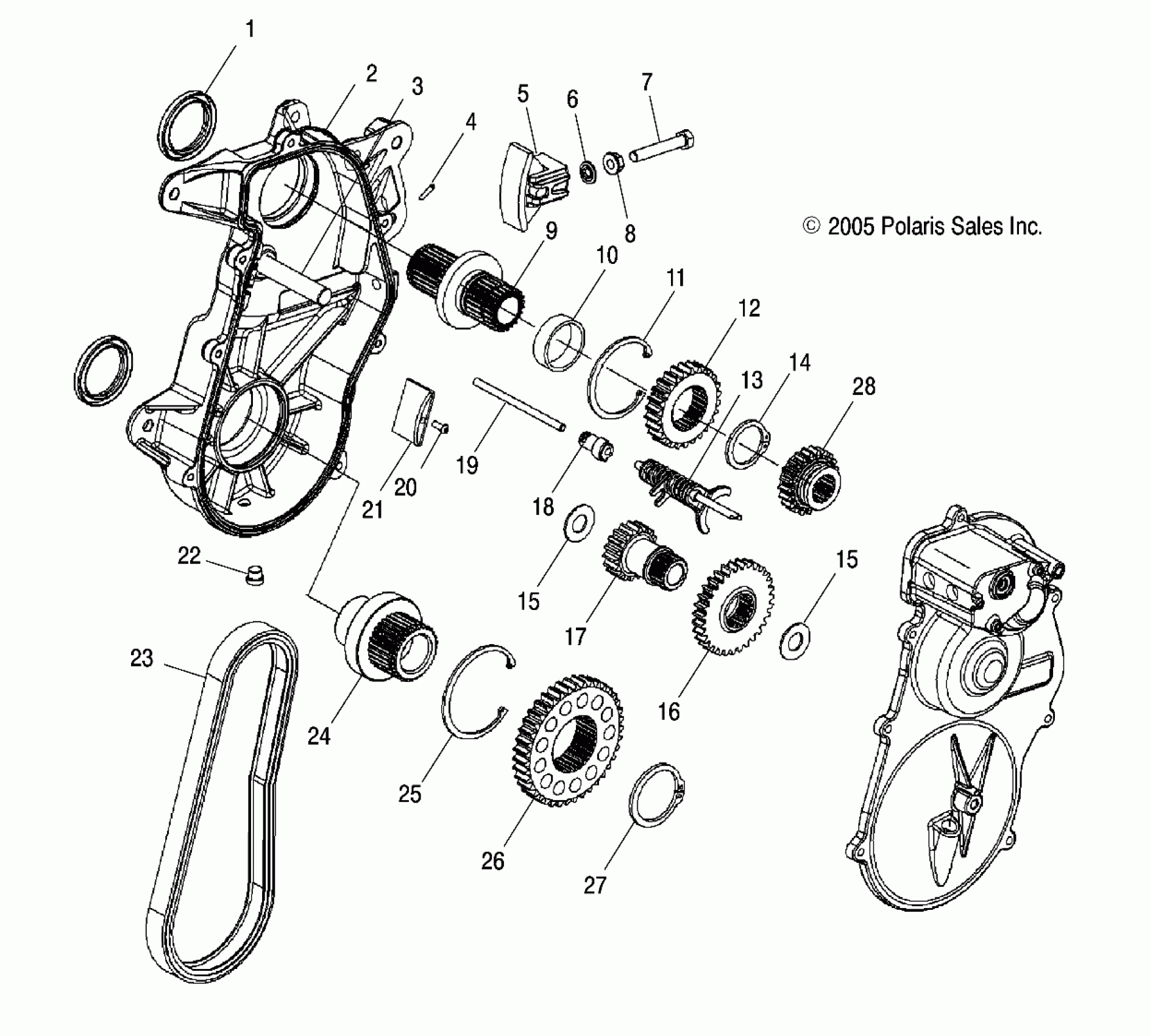

Polaris FS/FST IQ TOURING - S07PT7ES/PT7EE/PT7FS/PT7FE GEARCASE ASSEMBLY - S07PT7ES/PT7EE/PT7FS/PT7FE (49SNOWGEARCASE07FST) Diagram

#

Description
Price

1

SEAL, OIL

3610108

$12.99

2

Asm., Case, Reverse

1332318

Unavailable

3

Shaft, Pinion

5134329

$71.99

4

TUBE-VENT .155DIAX.75L

5334764

$28.32

5

ASM-TIGHTENER,CHAIN,VESPEL

1332427

$79.99

6

WASHER, THREAD SEAL

7556340

$3.19

7

Screw

7515551

$6.39

8

NUT

7547304

$3.19

9

BEARING, BALL

3514471

$33.32

9

SEAL, OIL

3610110

$8.89

9

ASM., HUB CARRIER, UPPER

1332485

$509.99

10

SPACER, SPROCKET, UPPER

5134518

$23.99

11

RING, RETAINING

7710552

$7.19

12

Sprocket, 21T [FS]

3222143

$74.39

12

Sprocket, 24T [FST]

3222128

$43.56

13

ASM., SHIFT FORK

1332315

Unavailable

14

RING, RETAINING

7710555

$7.19

15

WASHER

7556354

$3.99

15

WASHER

7556354

$3.99

16

GEAR, SPUR, 31T

5135059

Unavailable

17

SPROCKET, 18T/18T SPLINE

1332385

$104.99

18

INDICATOR, POSITION, HUB

5435503

$32.37

19

SHAFT, SHIFT

5134327

Unavailable

20

SCREW

7512024

$4.79

21

PLATE, REVERSE BACKING

5250017

$69.99

22

PLUG, HEX

7052115

$5.65

23

CHAIN, 80P

3222134

$101.65

24

O-RING

5412229

$1.60

24

BEARING, BALL

3514496

Unavailable

24

RING, RETAINING

7710553

$7.19

24

ASM., HUB CARRIER, LOWER

1332306

$284.99

25

RING, RETAINING

7710554

$8.79

26

Sprocket, 44T [FST]

3221186

Unavailable

26

Sprocket, 46T [FS]

3221191

$46.39

27

RING, RETAINING

7710558

$7.19

28

PINION, FWD/REV

5135601

$449.99
