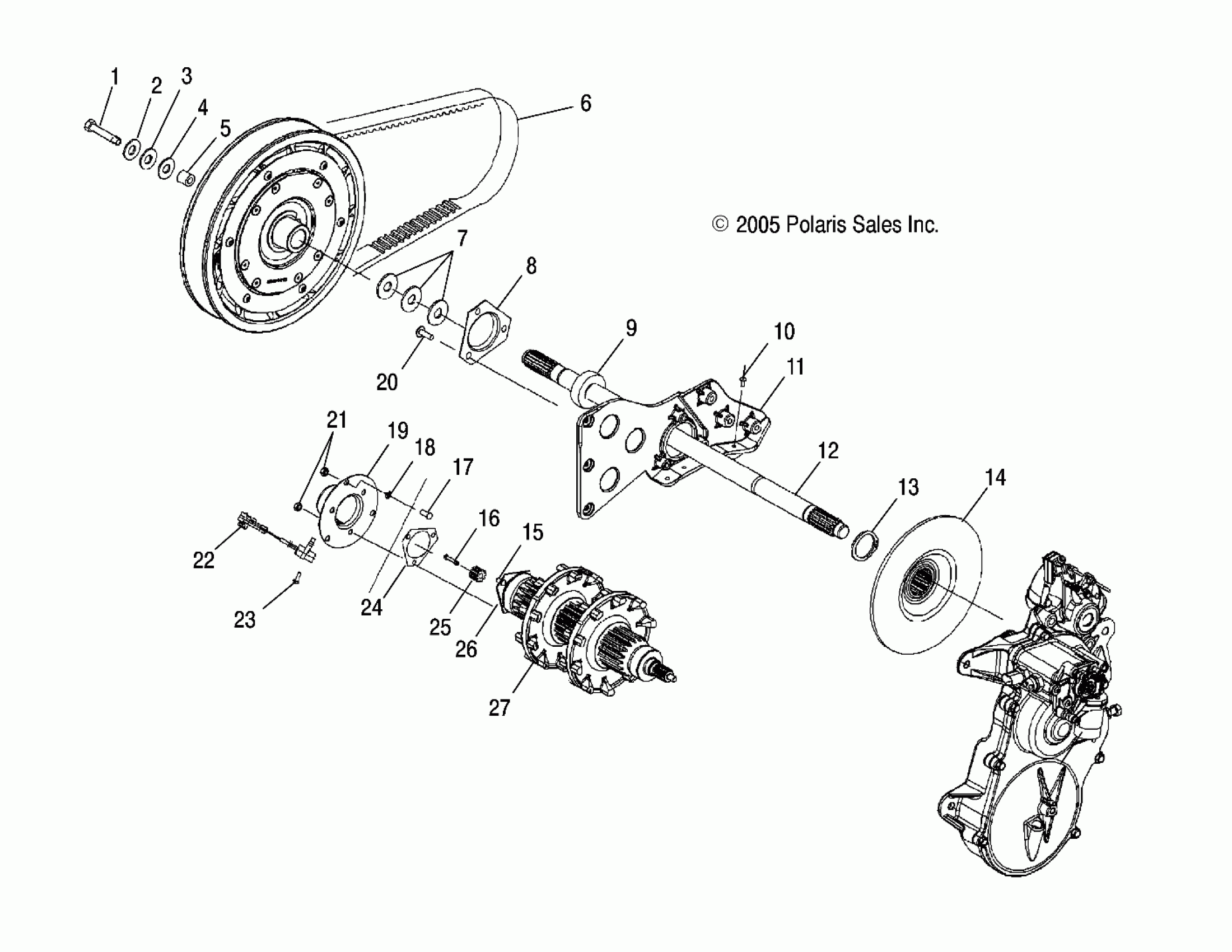

Polaris FS/FST IQ TOURING - S07PT7ES/PT7EE/PT7FS/PT7FE DRIVE TRAIN - S07PT7ES/PT7EE/PT7FS/PT7FE (4997479747C10) Diagram

#

Description
Price

1

Bolt

7515369

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Washer

7555957

Unavailable

5

Spacer, Input Shaft

5134371

Unavailable

6

Belt, Drive

3211099

$149.99

7

Bushing

7556509

Unavailable

7

WASHER

7555917

Unavailable

7

WASHER

7555864

$2.39

8

FLANGETTE

5222751

$16.44

9

Bearing

3514352

Unavailable

10

RIVET-3/16-.090-.290

7661637

$1.49

11

Mount, Jackshaft Bearing, LH

5134106

Unavailable

12

Asm., Jackshaft [Incl. 9]

1332453

$315.70

13

RING, RETAINING

7710555

$7.19

14

KIT, SERVICE BRAKE [See Brake System Pg. B2, Ref. 18]

-------

Unavailable

15

ASM., FLANGETTE W/SCREWS

1014299

$43.56

16

Screw

7516733

$6.39

17

Bolt, Carriage

7518049

$2.39

18

PALNUT

7547030

$4.79

19

HOUSING, DRIVE PICKUP

5246960

$27.99

20

SCREW

7518444

$3.99

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

Sensor, Speed Pickup

2410376

$101.17

23

Bolt

7512232

$1.49

24

GASKET, JACKSHAFT, BLACK

5811095

$2.41

25

Wheel, Pickup, Speedo

5240013

Unavailable

26

BEARING

3514448

Unavailable

27

Asm., Driveshaft

1590412

$551.89
