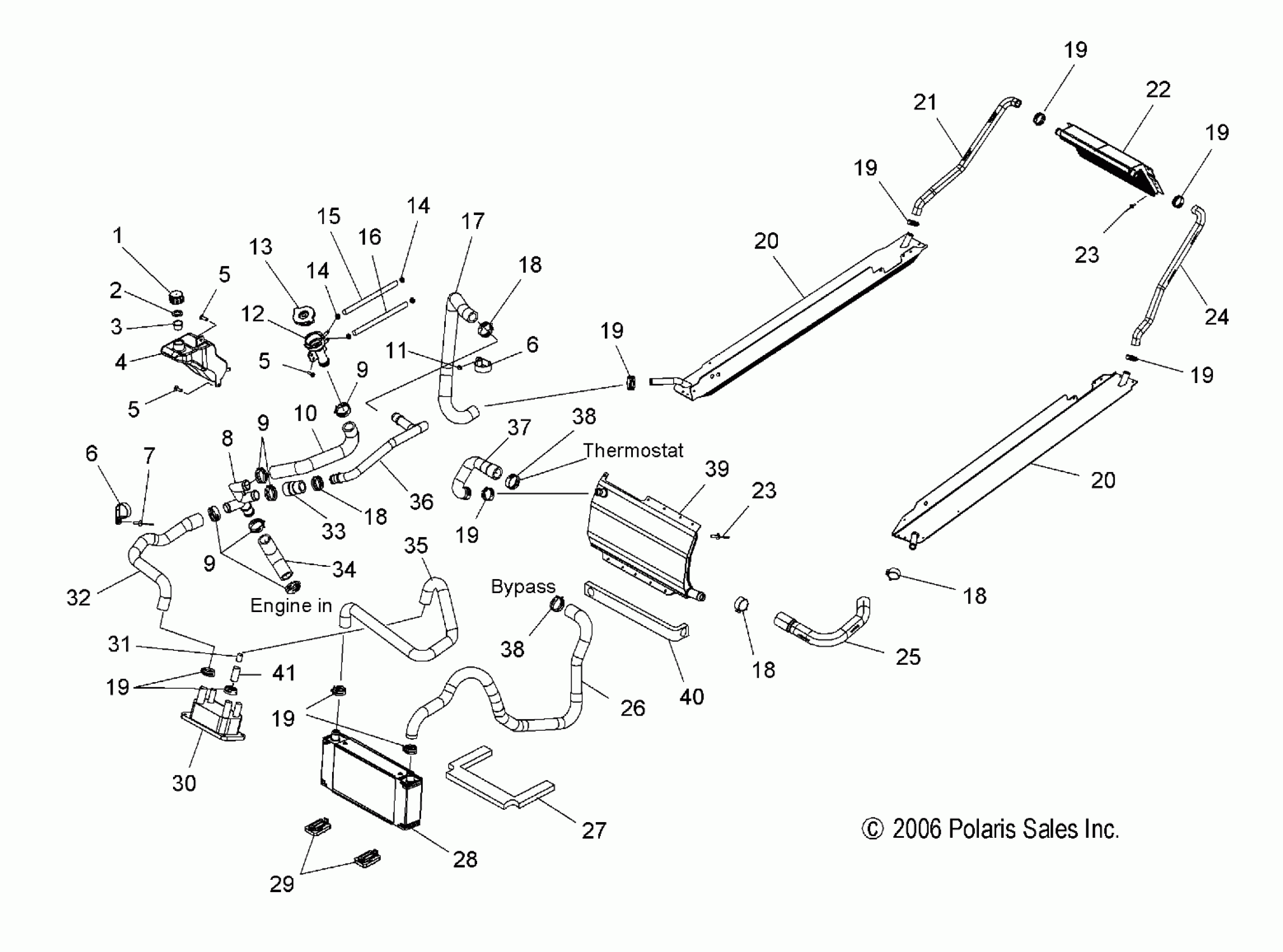

Polaris FS/FST IQ TOURING - S07PT7ES/PT7EE/PT7FS/PT7FE COOLING - S07PT7ES/PT7EE/PT7FS/PT7FE (49SNOWCOOLINGFSTOUR) Diagram

#

Description
Price

1

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

2

GASKET-OVERFLOW CAP

5810279

$2.41

3

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

4

BOTTLE, COOLANT

5436215

Unavailable

5

Screw

7512095

$4.79

5

Screw

7512095

$4.79

5

Screw

7512095

$4.79

6

CLAMP-HOSE

7080807

$9.59

6

CLAMP-HOSE

7080807

$9.59

7

RIVET

7621467

$1.49

8

Manifold, Coolant Return

5436228

Unavailable

9

CLAMP, SPRING BAND

7080844

$10.39

9

CLAMP, SPRING BAND

7080844

$10.39

9

CLAMP, SPRING BAND

7080844

$10.39

10

Hose, Filler/Manifold

5412853

$12.39

11

NUT, FLANGED

7542153

$1.59

12

Filler, Remote

5435196

Unavailable

13

Cap, Pressure

1240044

Unavailable

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

Hose, High Temp

8450115-40

$15.67

16

Line, Fuel

8450003-1525

$84.99

17

HOSE, GRIPPER/TUBE

5412781

$36.41

18

CLAMP, SPRING BAND

7080843

$3.99

18

CLAMP, SPRING BAND

7080843

$3.99

18

CLAMP, SPRING BAND

7080843

$3.99

18

CLAMP, SPRING BAND

7080843

$3.99

19

CLAMP, SPRING BAND

7080842

$7.19

19

CLAMP, SPRING BAND

7080842

$7.19

19

CLAMP, SPRING BAND

7080842

$7.19

19

CLAMP, SPRING BAND

7080842

$7.19

19

CLAMP, SPRING BAND

7080842

$7.19

19

CLAMP, SPRING BAND

7080842

$7.19

19

CLAMP, SPRING BAND

7080842

$7.19

19

CLAMP, SPRING BAND

7080842

$7.19

20

EXCHANGER, COOLER, RH

-------

Unavailable

20

EXCHANGER, COOLER, LH

-------

Unavailable

20

EXCHANGER, COOLER, RH

-------

Unavailable

20

EXCHANGER, COOLER, LH

-------

Unavailable

21

Hose, Gripper/Cooler, Rear, RH

5412780

$31.99

22

COOLER, REAR

1240188

$231.19

23

RIVET-3/16-.090-.290

7661637

$1.49

23

RIVET-3/16-.090-.290

7661637

$1.49

24

Hose, Gripper/Cooler, Rear, LH

5412779

$36.41

25

HOSE, CENTER COOLER/GRIPPER, LH

5412785

$11.32

26

Hose, Engine Out/Radiator

5412783

Unavailable

27

MOUNT, RADIATOR, FOAM

5812496

$9.70

28

Asm., Radiator

1240149

Unavailable

29

MOUNT, RADIATOR

5412513

$8.08

30

Cooler, Oil

1240312

Unavailable

31

Restrictor, Coolant

5135328

Unavailable

32

Hose, Oil Cooler/Manifold

5412786

Unavailable

33

Connector, Tube/Manifold

5412852

$3.33

34

Hose, Manifold/Engine In

5412782

Unavailable

35

Hose, Radiator/Oil Cooler In

5412784

Unavailable

36

Tube, Gripper/Manifold

5334771

Unavailable

37

Hose, Engine Out/Cooler

5412984

$60.70

38

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.99

38

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.99

39

COOLER, BULKHEAD

2520575

$234.99

40

SEAL, FRONT CLOSEOFF COOLER

5812845

$12.13

41

Sleeve

5135769

$8.79
